Floor Shift Control Replacement

Floor Shift Control Replacement

Removal Procedure

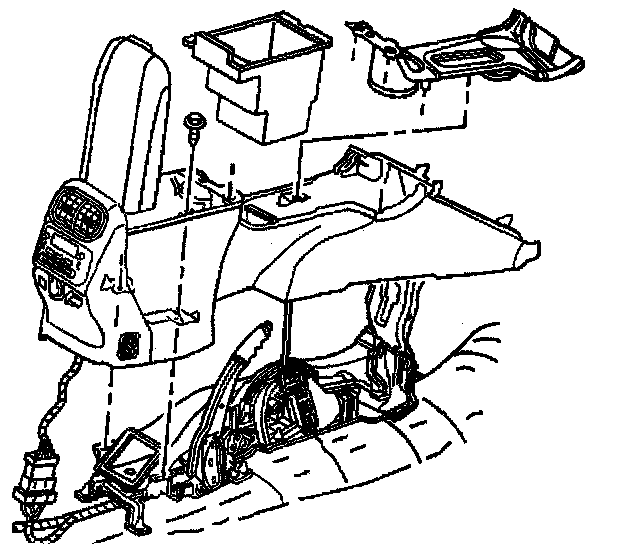

1. Remove the front floor console.





2. Disconnect the Shift lock control solenoid wiring harness.

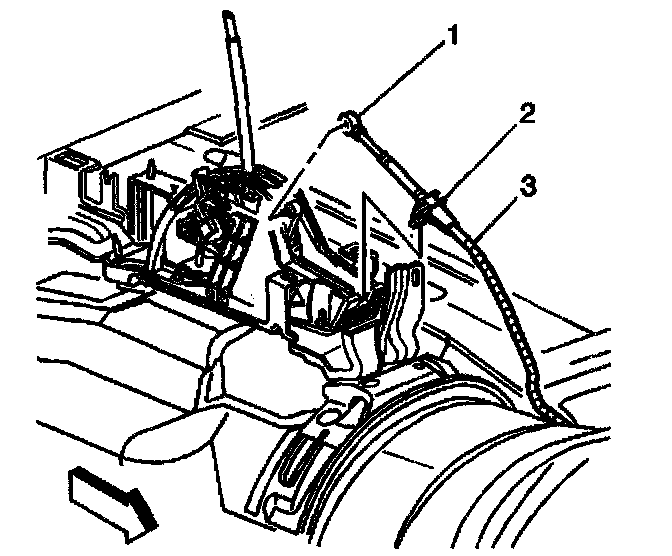

3. Remove the end of the range selector cable (1) from the transmission control ball stud.
4. Remove the range selector cable (2) from the floor Shift control.

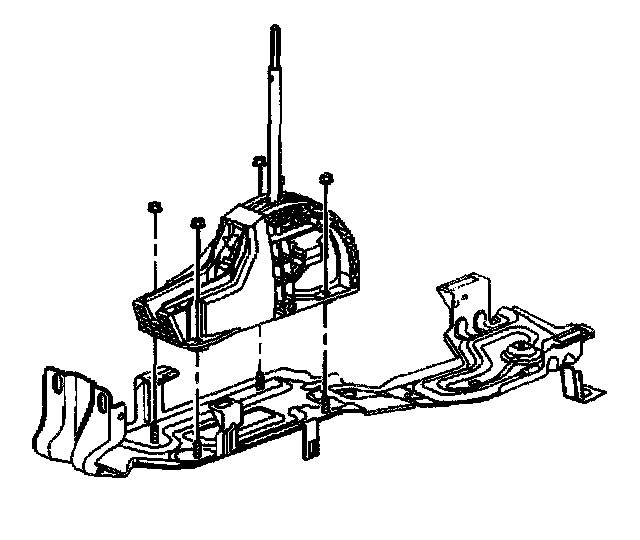

5. Remove the transmission control bolts.
6. Remove the transmission control.

Installation Procedure

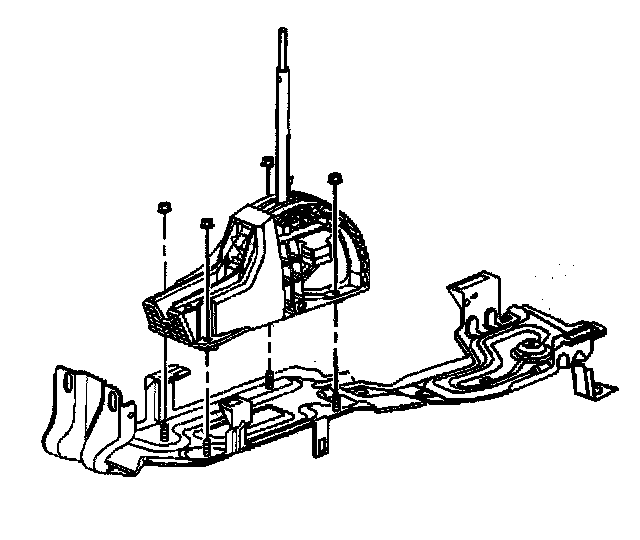

1. Install the transmission control.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission control bolts.
^ Tighten the transmission control bolts to 25 Nm (18 ft. lbs.).

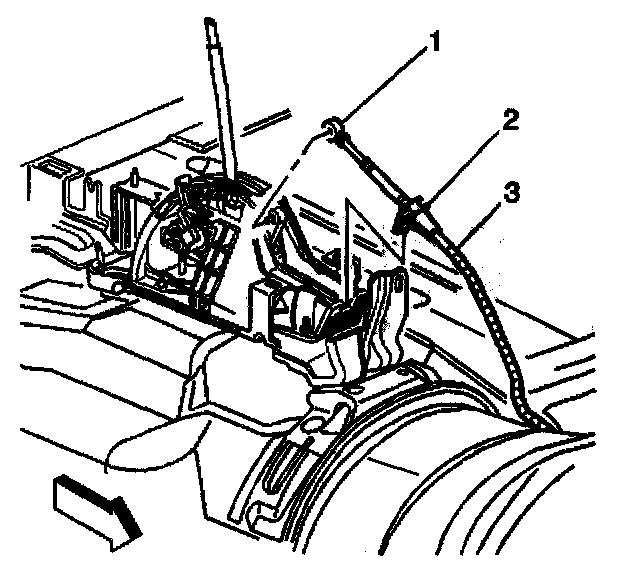

3. Install the range selector cable (2) to the floor Shift control.
4. Install the end of the range selector cable (1) to the transmission control ball stud.
5. Connect the Shift lock control solenoid wiring harness.

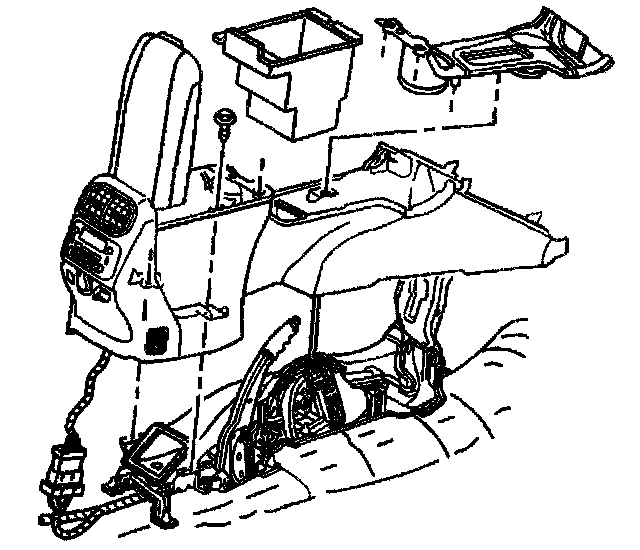

6. Install the front floor console.
7. Check for proper operation of the floor Shift control.
8. Adjust the range selector cable if necessary.
