Steering Column Components

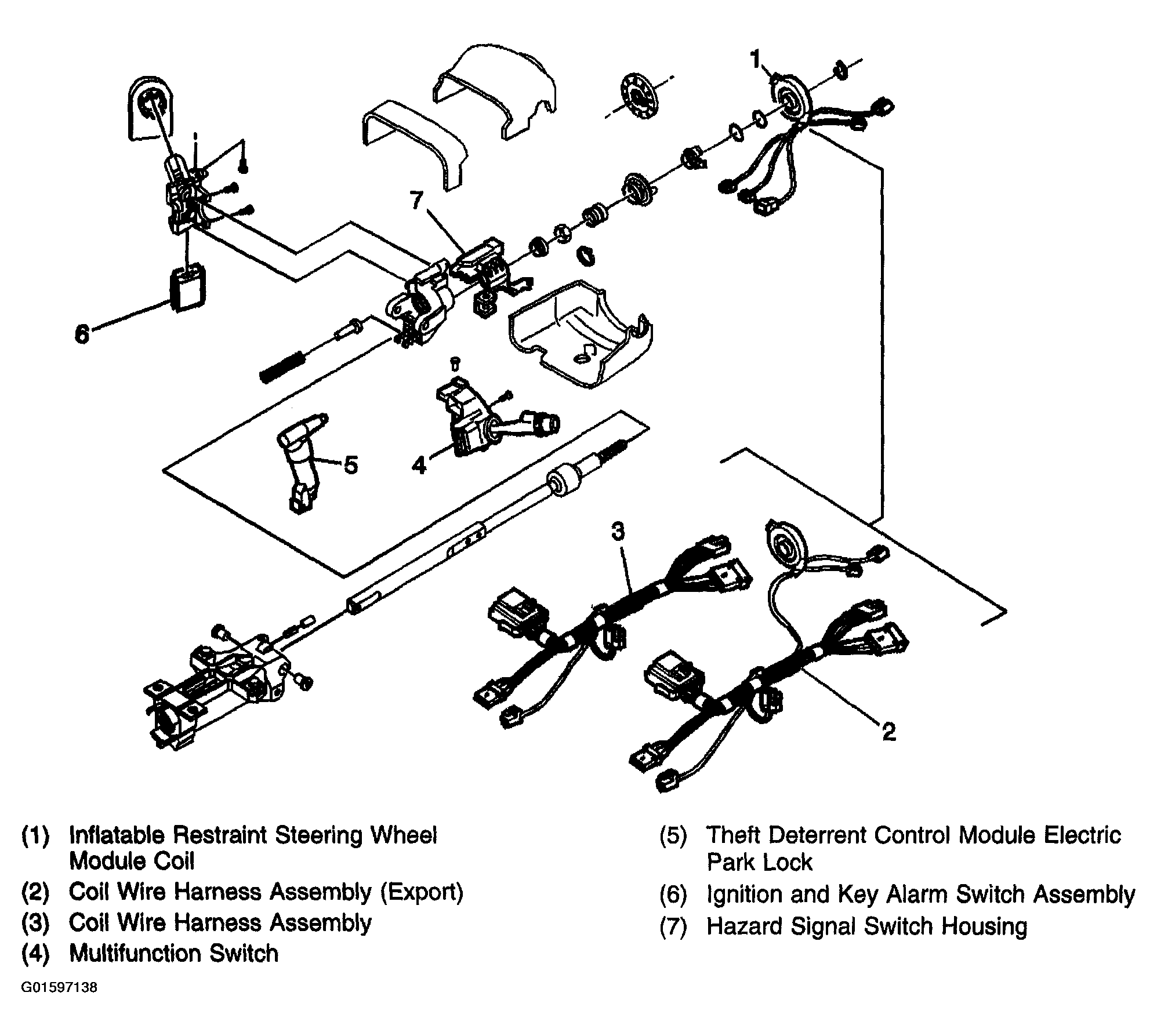

Fig 1: Exploded View Of Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
