Windshield Wiper Motor

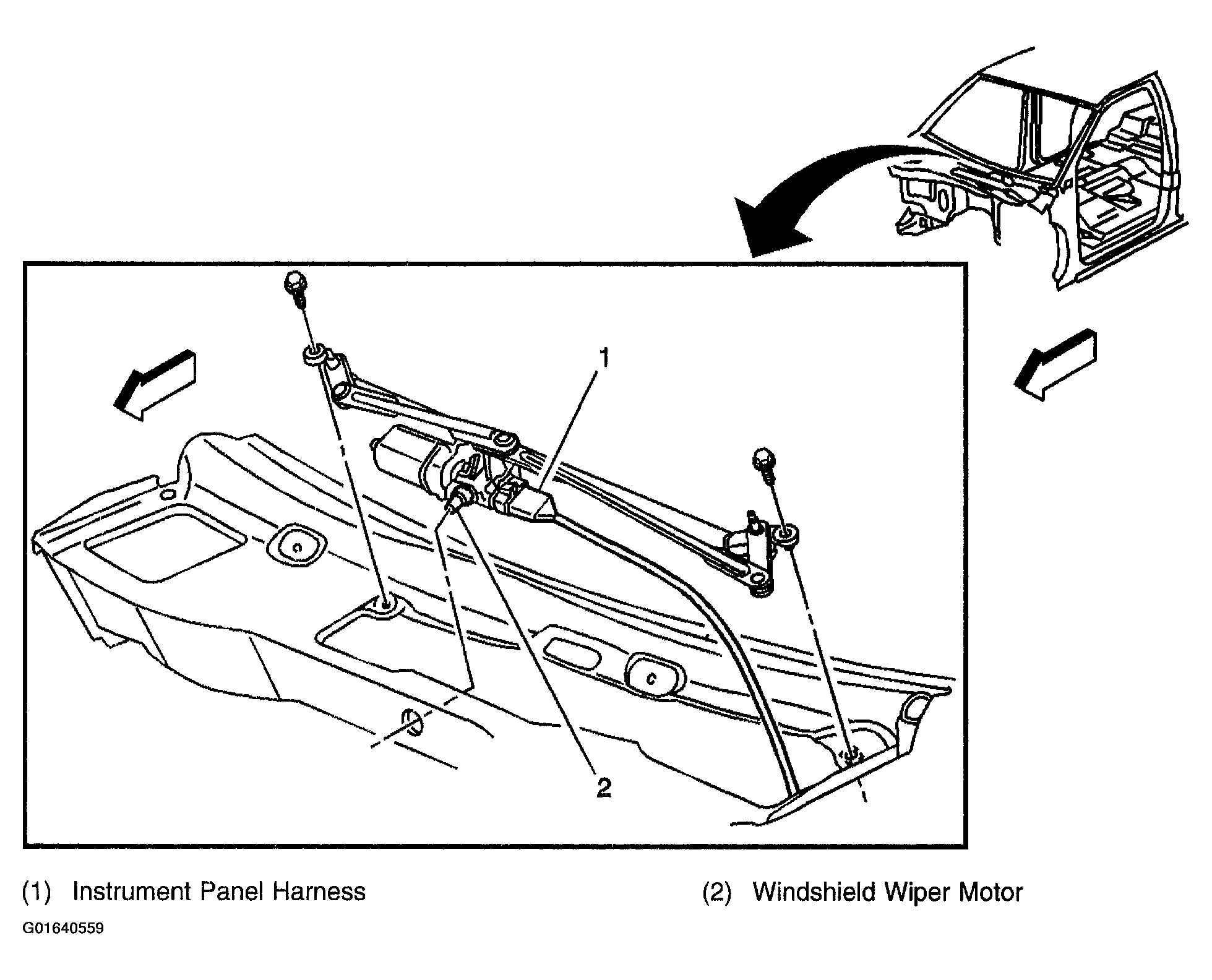

Fig 1: Locating Windshield Wiper Motor Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
