Windshield Wiper/Washer Switch (Turn Signal/Multifunction Switch C3)

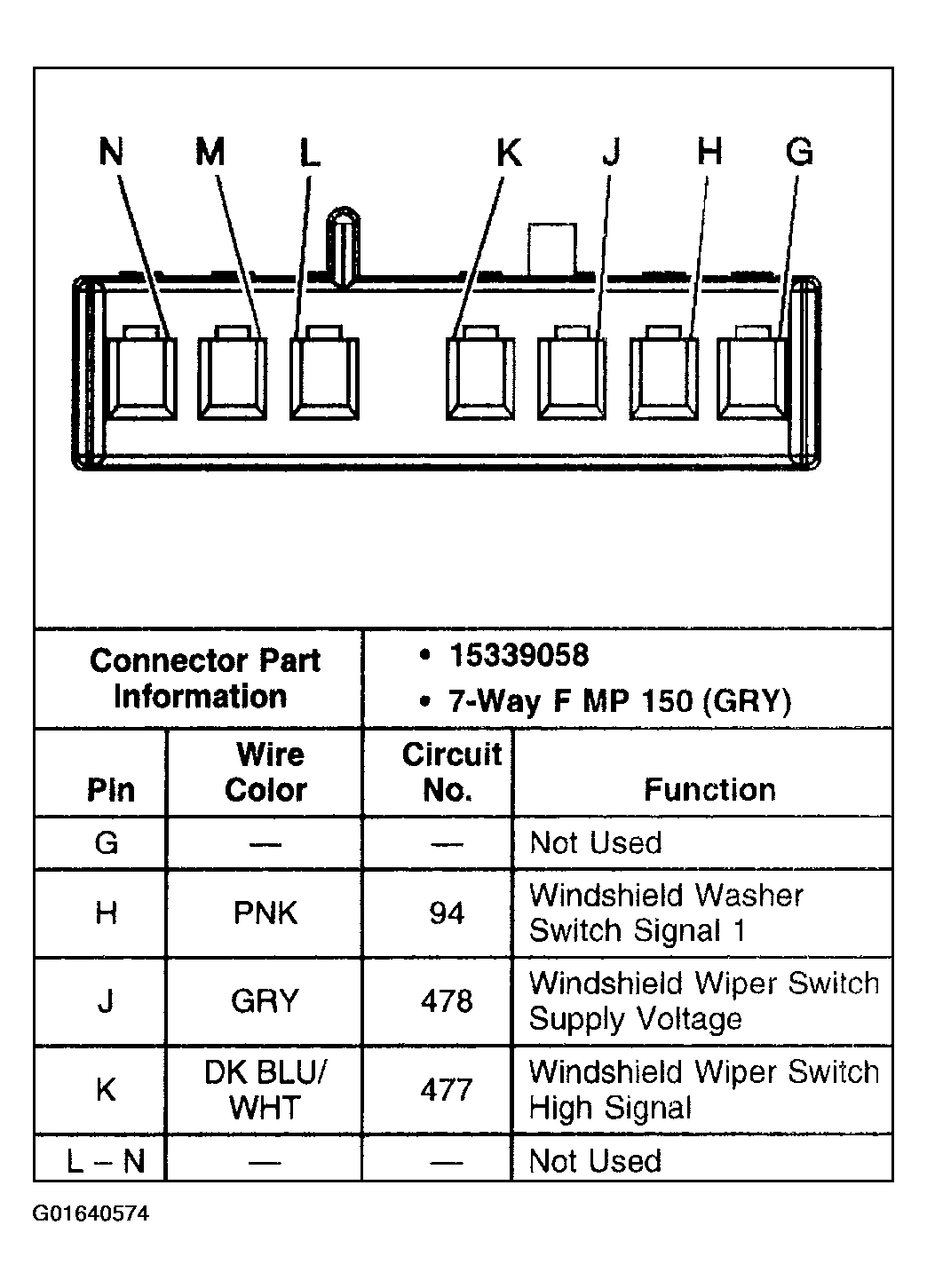

Fig 1: Identifying Windshield Wiper/Washer Switch (Turn Signal/Multifunction Switch C3) Connector
G01640574Courtesy of GENERAL MOTORS CORP.
