HVAC Control Module Scan Tool Output Controls

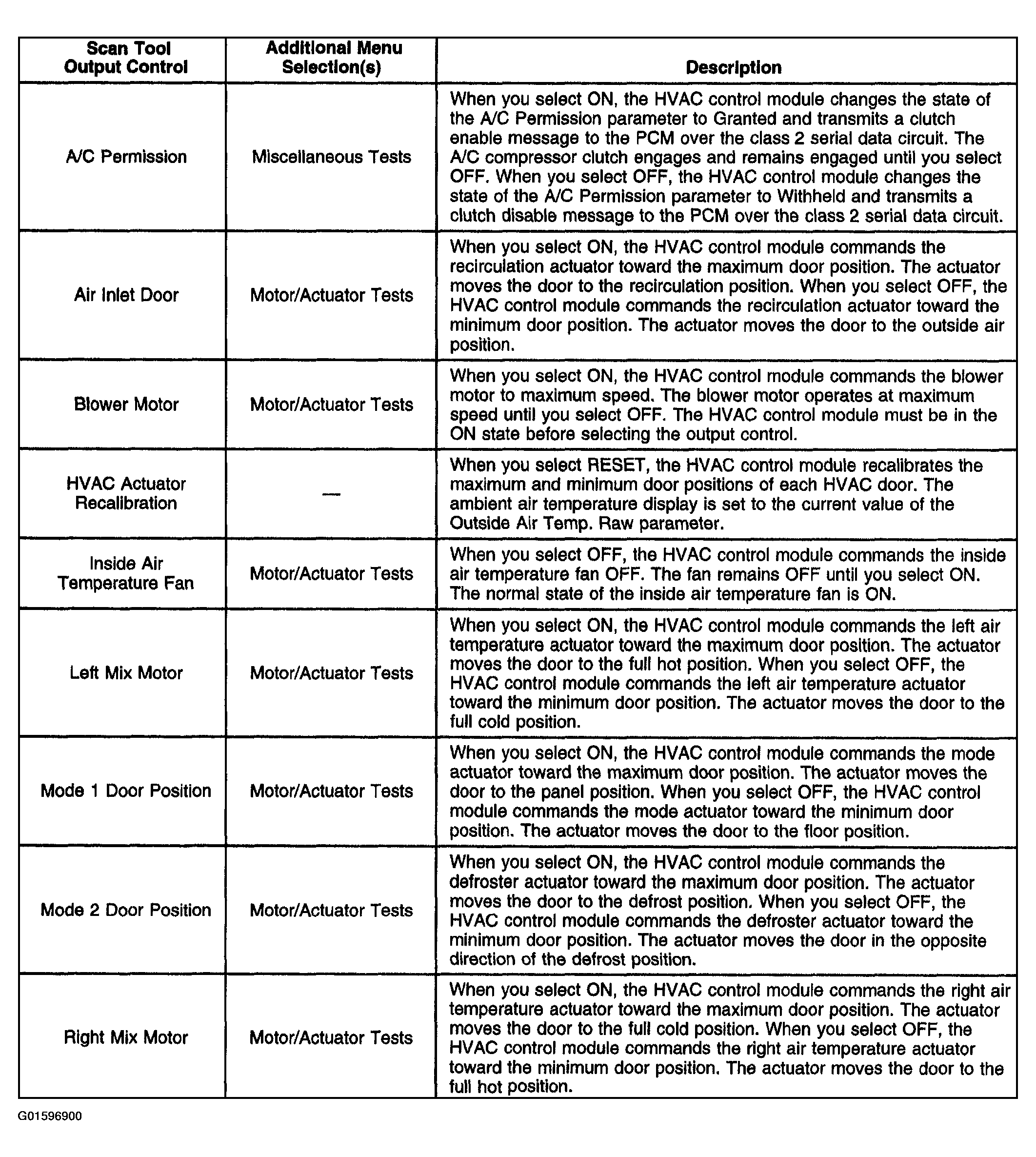

Fig 1: HVAC Control Module Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
