HVAC Control Module Scan Tool Output Controls

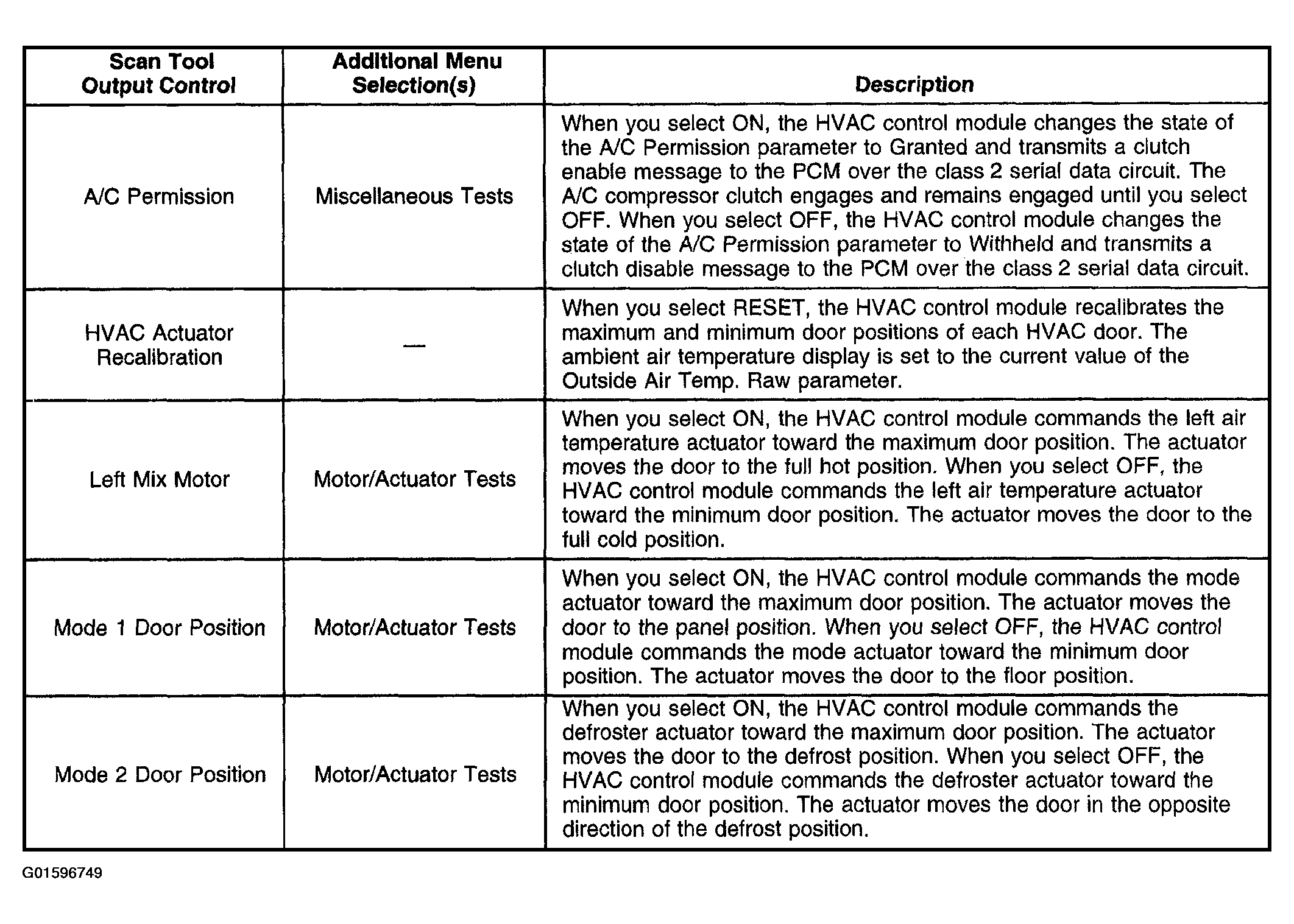

Fig 1: Scan Tool Output Controls - HVAC Control Module Scan Tool Output Controls (1 Of 2)
G01596749Courtesy of GENERAL MOTORS CORP.

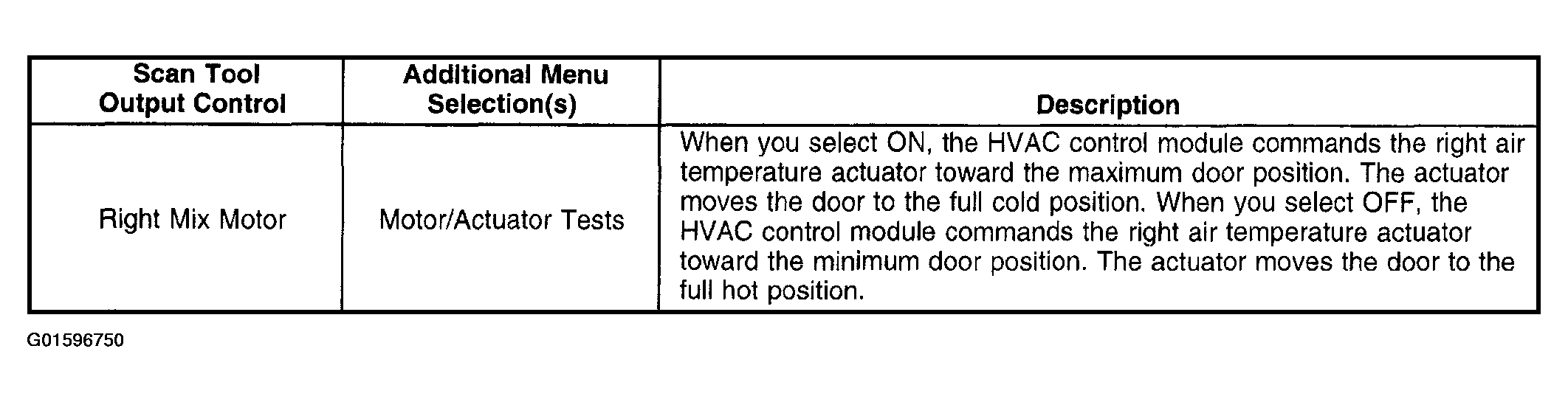

Fig 2: Scan Tool Output Controls - HVAC Control Module Scan Tool Output Controls (2 Of 2)
G01596750Courtesy of GENERAL MOTORS CORP.
