Liftgate Module (LGM) Connector End View - C3

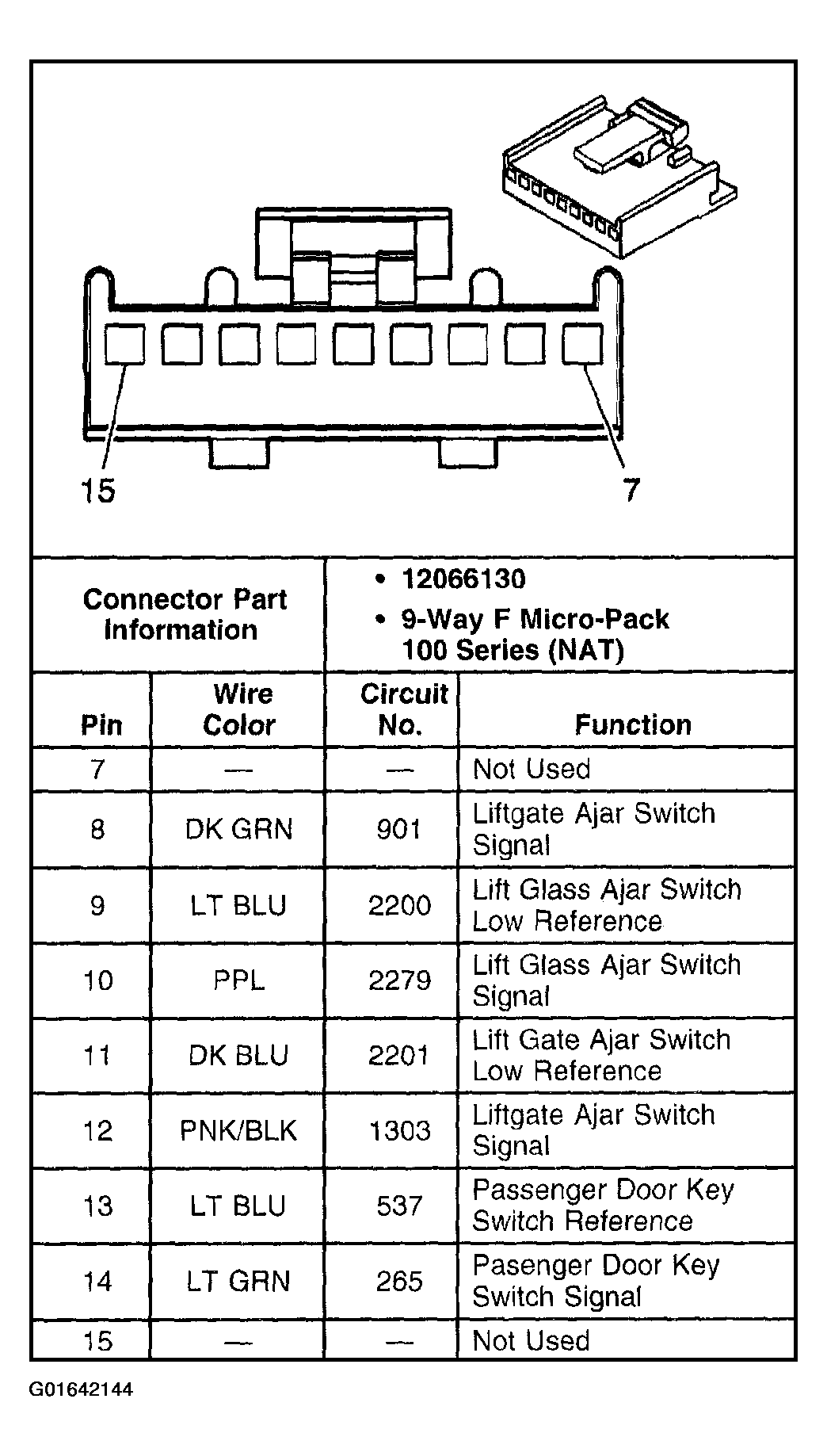

Fig 1: Liftgate Module (LGM) Connector End View - C3
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
