Transfer Case Encoder Motor

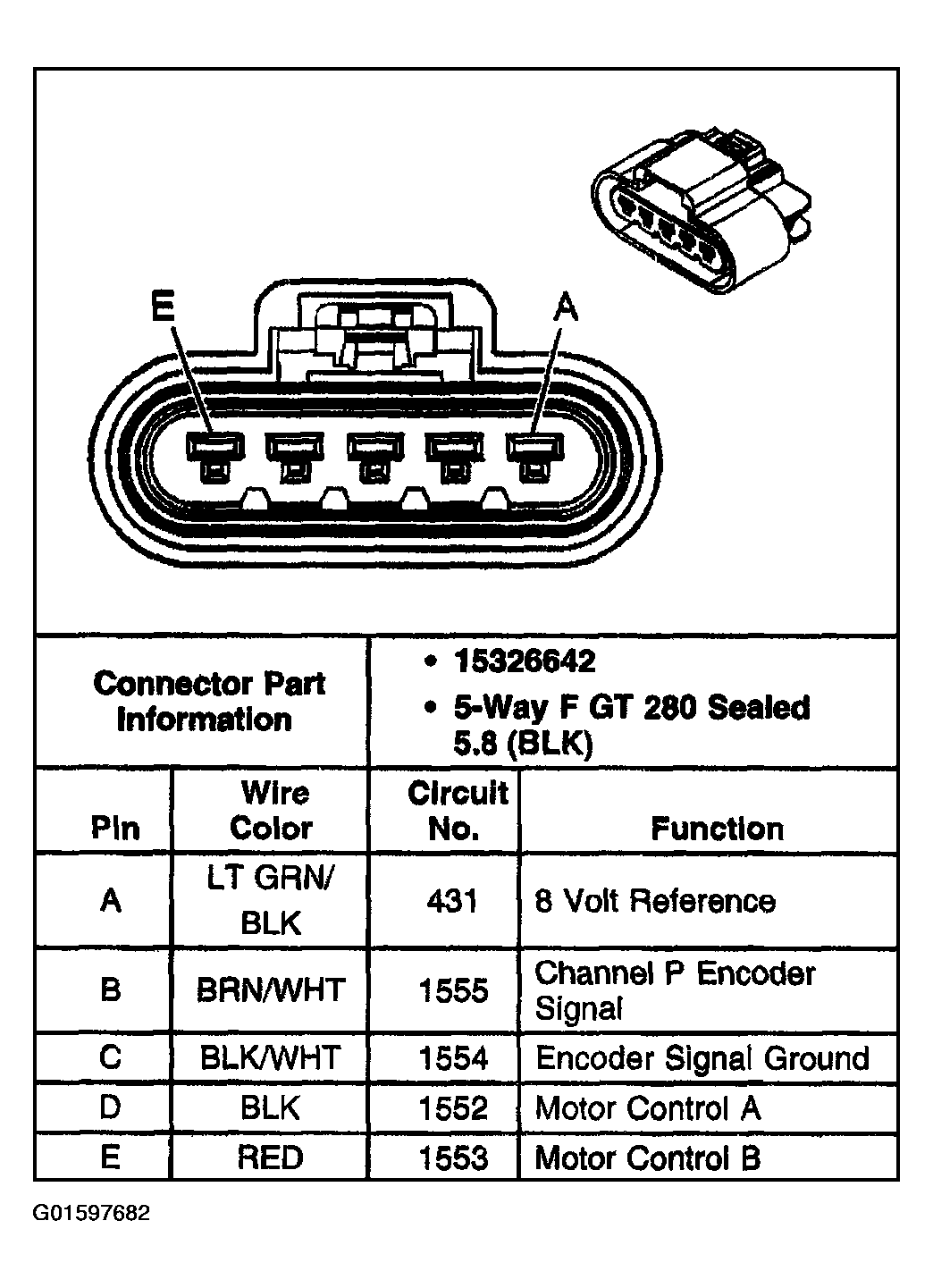

Fig 1: Identifying Transfer Case Encoder Motor Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
