Power Windows Inoperative - Lockout Function

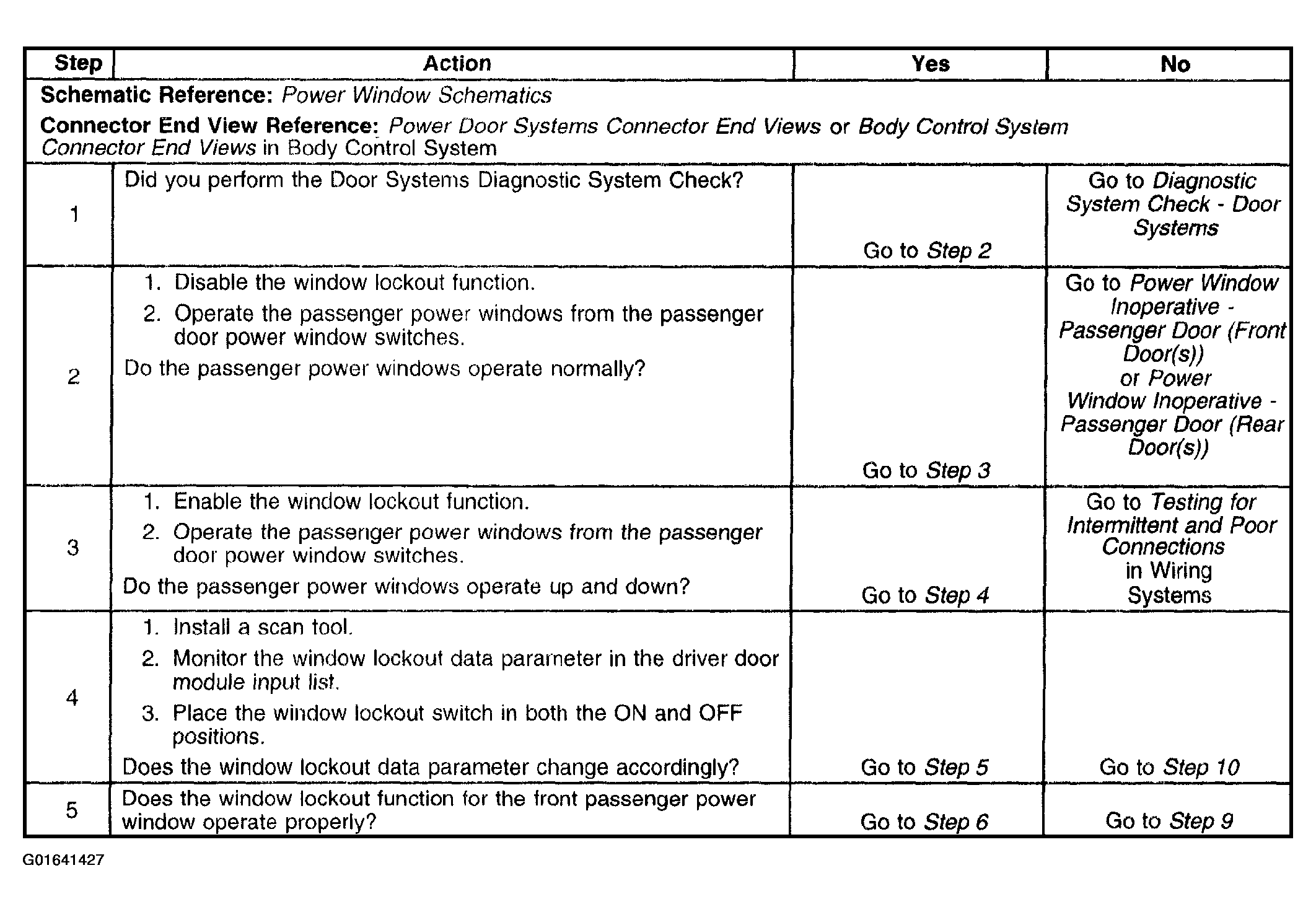

Fig 1: Power Windows Inoperative Symptom Tests - Lockout Function Procedure (Steps 1-5)
Courtesy of GENERAL MOTORS CORP.

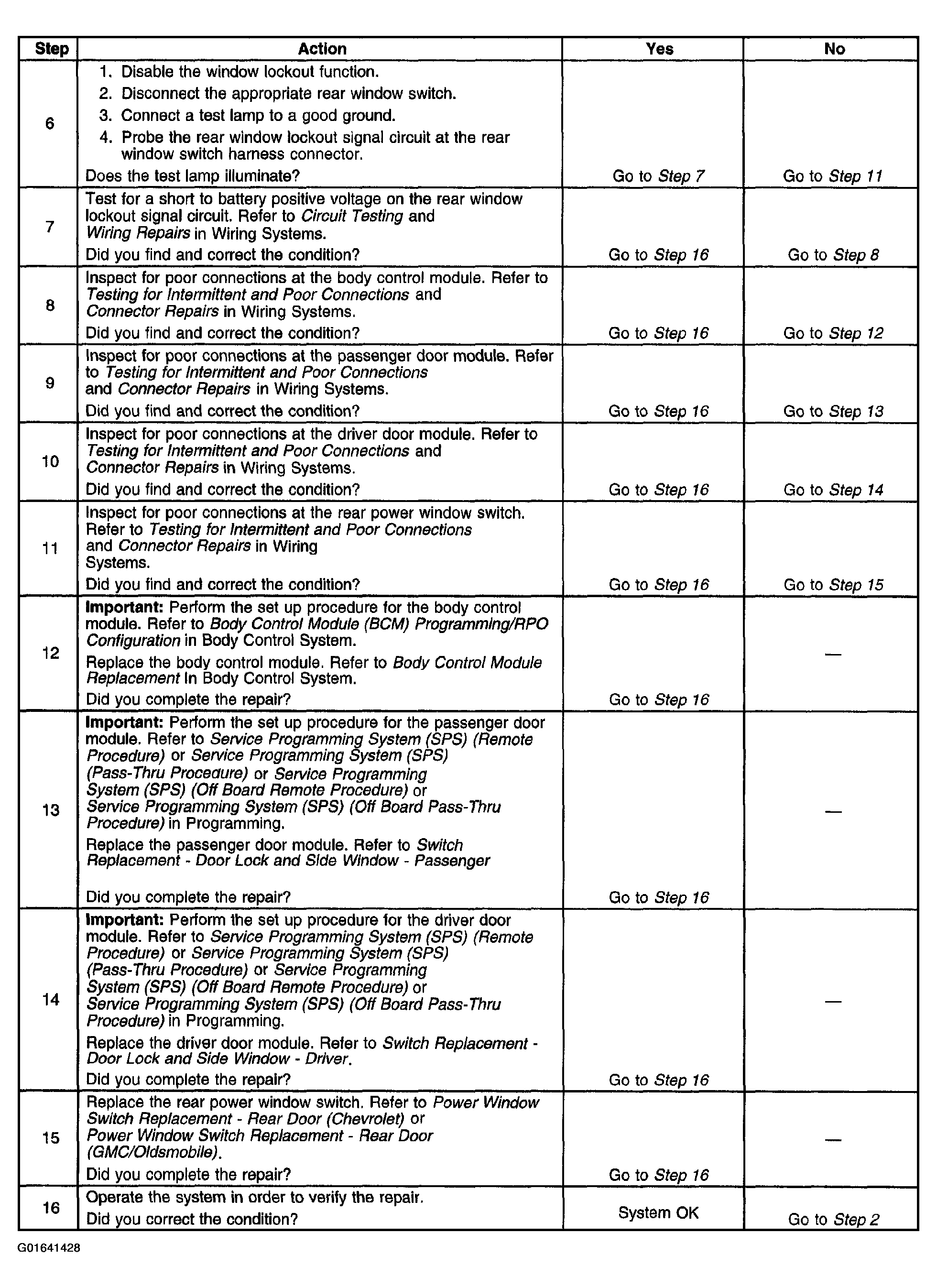

Fig 2: Power Windows Inoperative Symptom Tests - Lockout Function Procedure (Steps 6-16)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
