Installation Procedure

  1. Install the weatherstrip/run channel to the door.

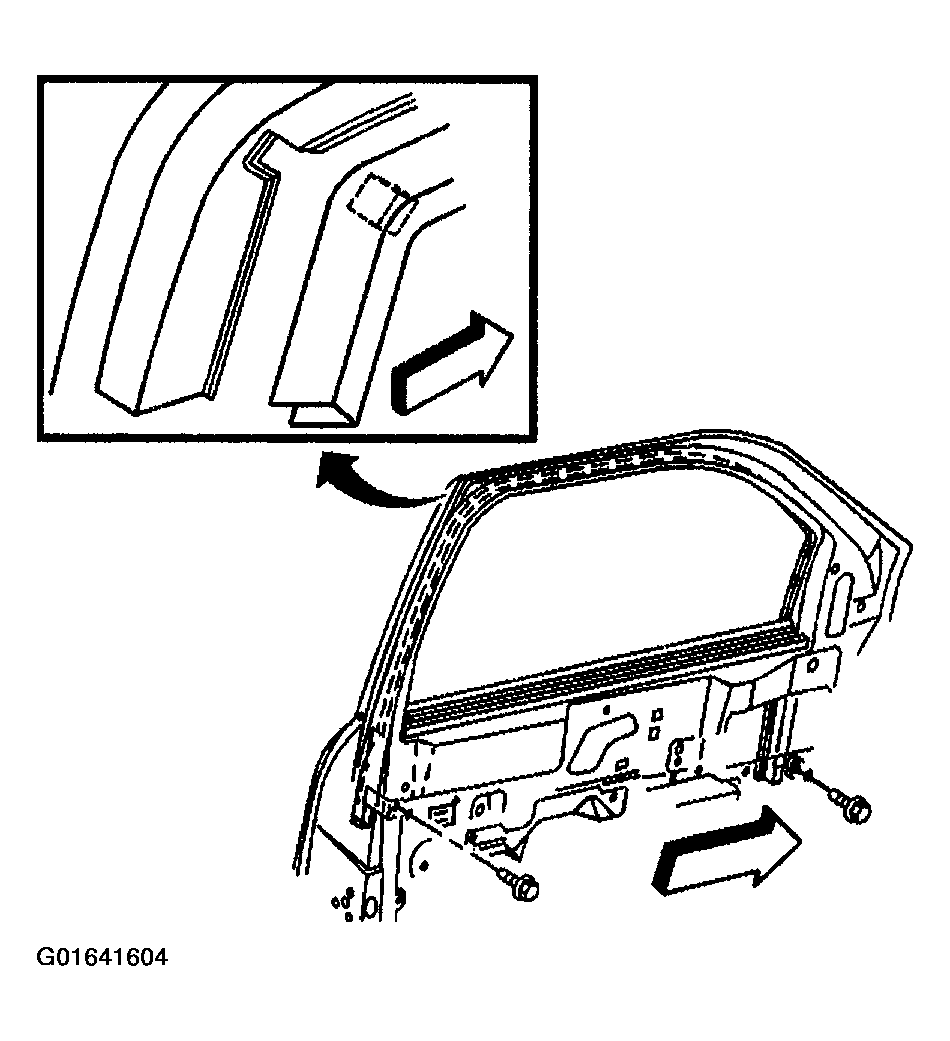

    2. Fig 1: Installing Weatherstrip/Run Channel To Front Door
    G01641604Courtesy of GENERAL MOTORS CORP.
  2. Position the tabs on the weatherstrip/run channel into the slots in the door.
  3. Press the weatherstrip/run channel into the window frame opening.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the 2 retaining bolts.

    Tighten

    Tighten the retaining bolts to 10 N.m (88 lb in).

  5. Install the window. Refer to WINDOW REPLACEMENT - FRONT DOOR   .
  6. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  7. Install the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  .
  8. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
