Diagnostic System Check - Defogger

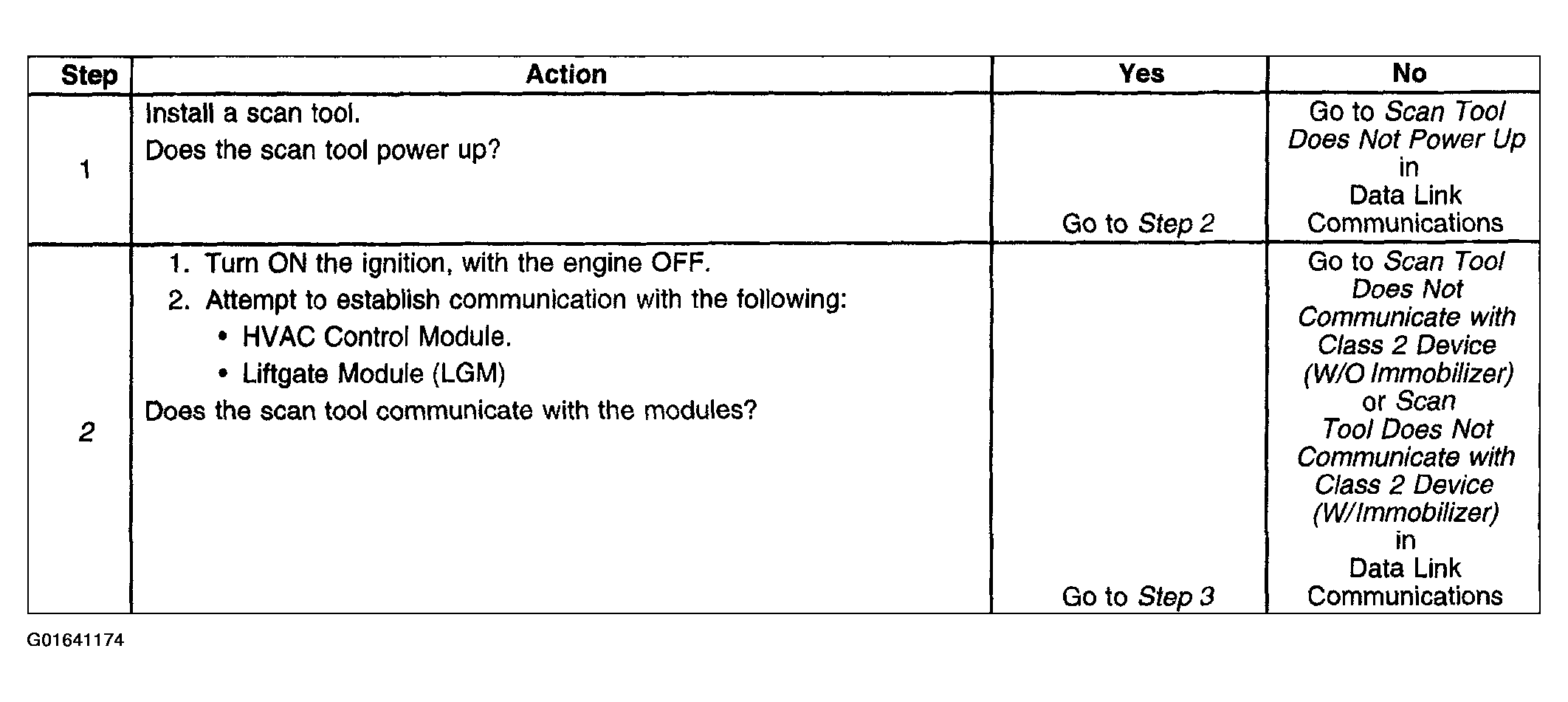

Fig 1: Defogger - Diagnostic Chart (1 Of 2)
G01641174Courtesy of GENERAL MOTORS CORP.

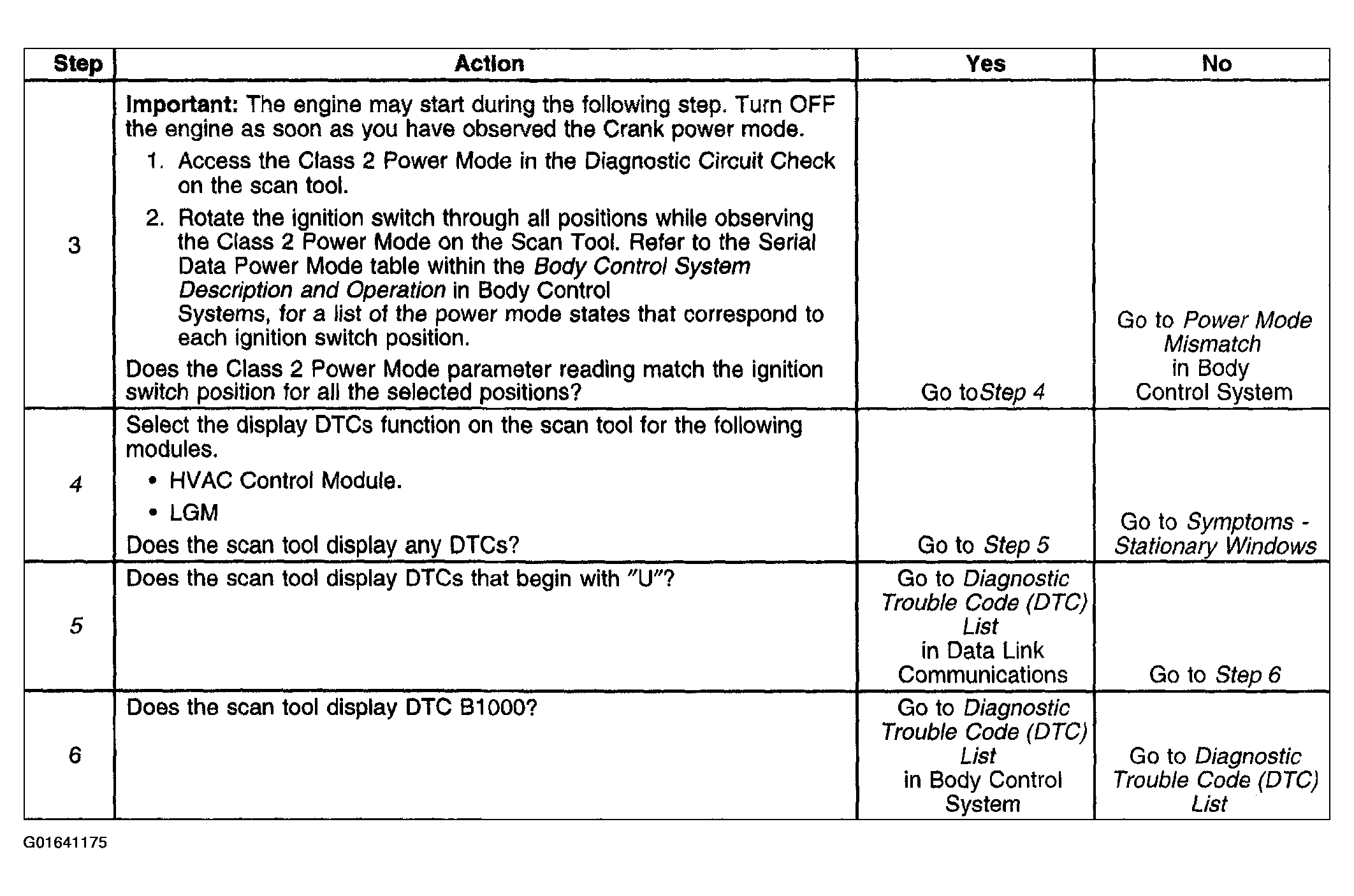

Fig 2: Defogger - Diagnostic Chart (2 Of 2)
G01641175Courtesy of GENERAL MOTORS CORP.
