Lower Engine Components

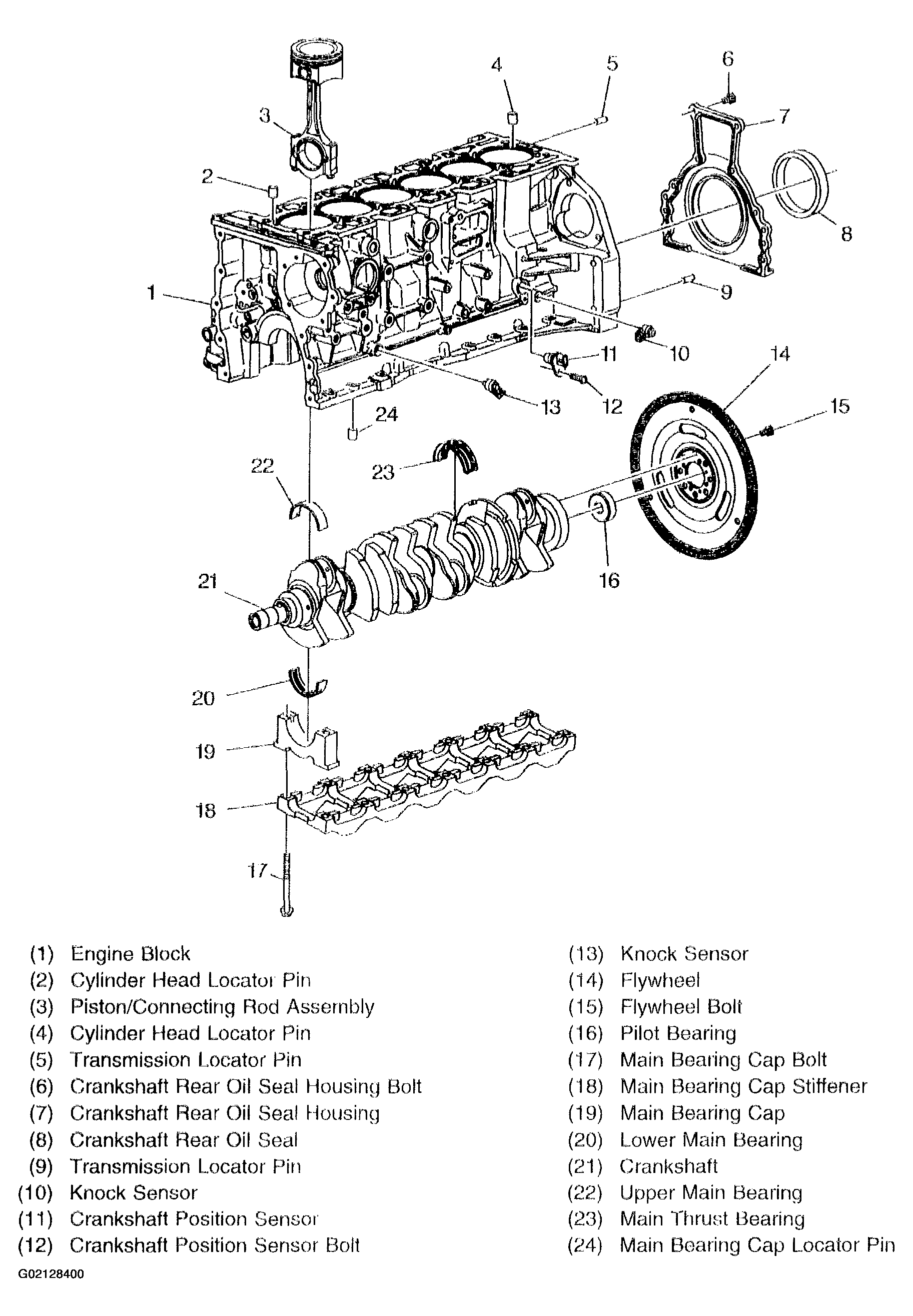

Fig 1: Exploded View of Lower Engine
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
