Installation Procedure

  1. Install the engine oil level sensor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine oil level sensor mounting bolt.

    Tighten

    Tighten the engine oil level sensor mounting bolt to 10 N.m (89 lb in).

  3. Connect the electrical connector to the engine oil level sensor.

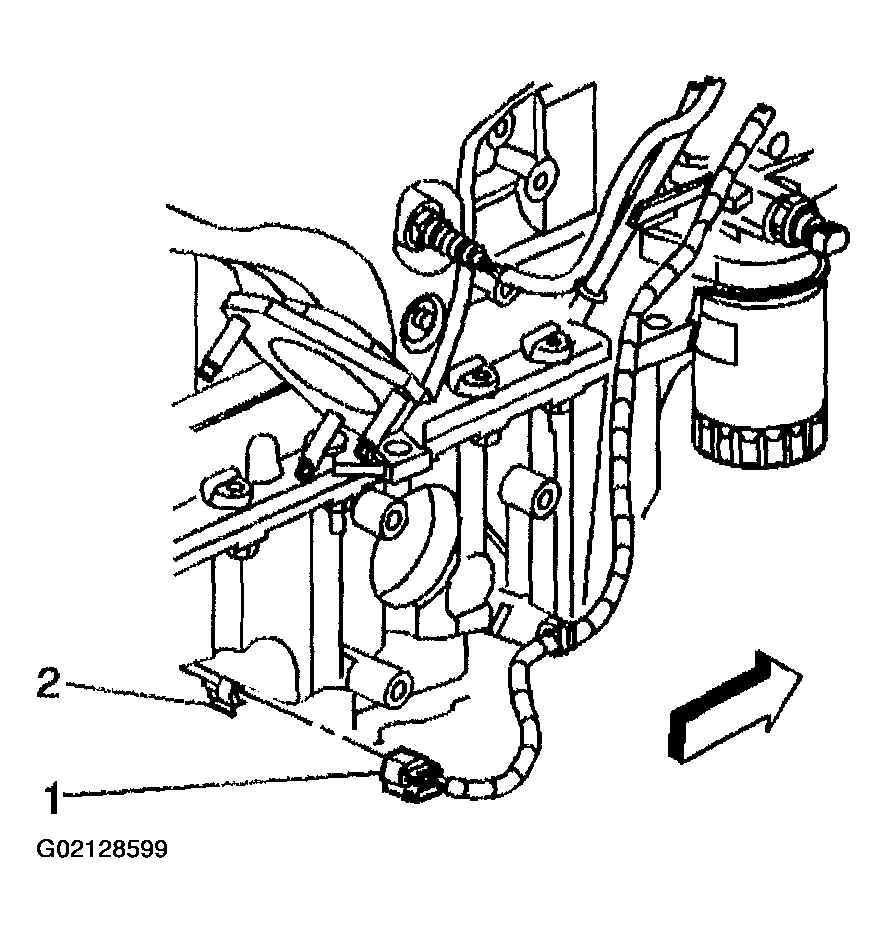

    Fig 1: Installing Engine Oil Level Sensor
    G02128599Courtesy of GENERAL MOTORS CORP.
  4. Install the engine protection shield.
  5. Install the engine protection shield mounting bolts.

    Tighten

    Tighten the engine protection shield mounting bolts to 25 N.m (18 lb ft).

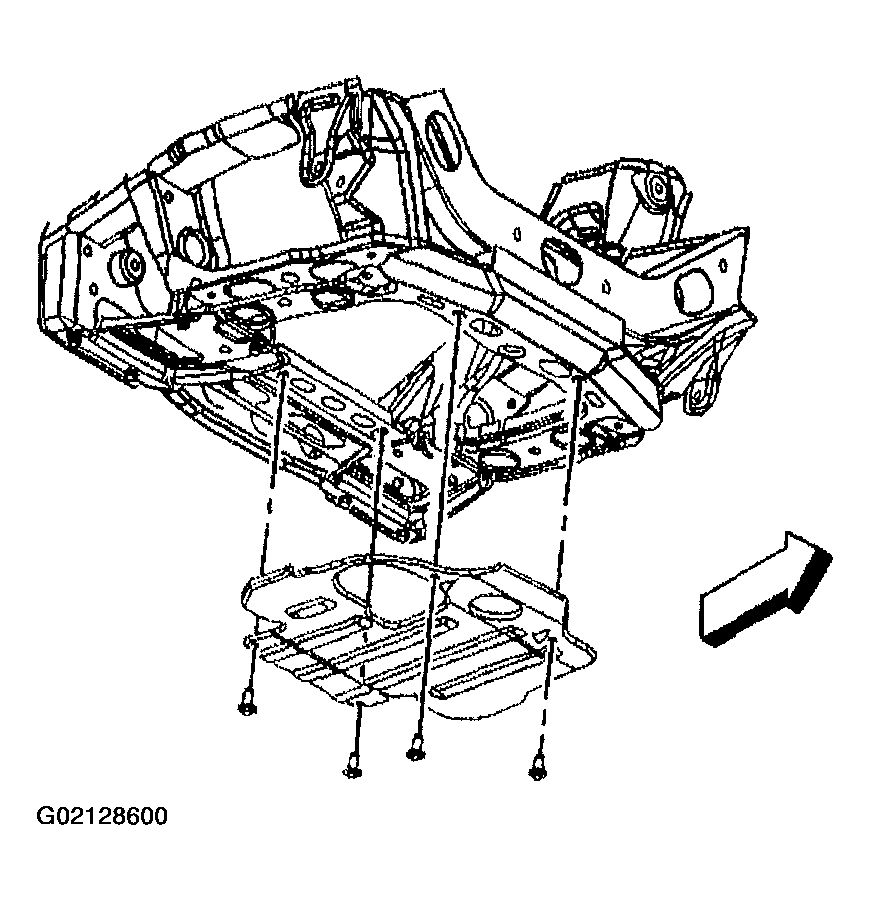

    Fig 2: Installing Engine Protection Shield
    G02128600Courtesy of GENERAL MOTORS CORP.
  6. Install the engine oil drain plug.

    Tighten

    Tighten the engine oil drain plug bolt to 26 N.m (19 lb ft).

  7. Lower the vehicle.
  8. Fill the crankcase with the proper quantity of engine oil.
    Fig 3: Installing Engine Oil Drain Plug
    G02128601Courtesy of GENERAL MOTORS CORP.
