Oil Pan - Right Side View

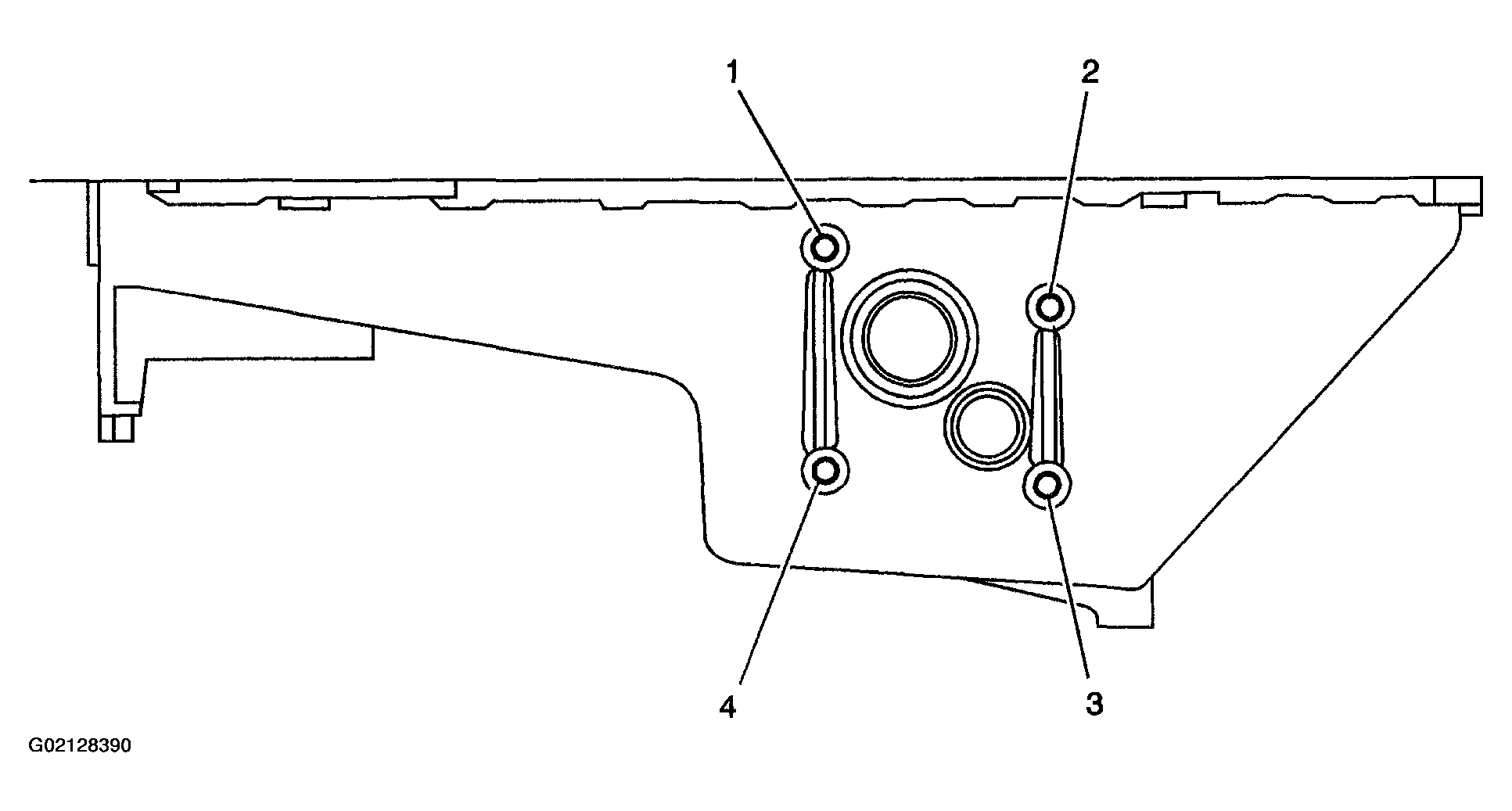

Fig 1: Thread Repair Specifications - Oil Pan - Right Side View
G02128390Courtesy of GENERAL MOTORS CORP.

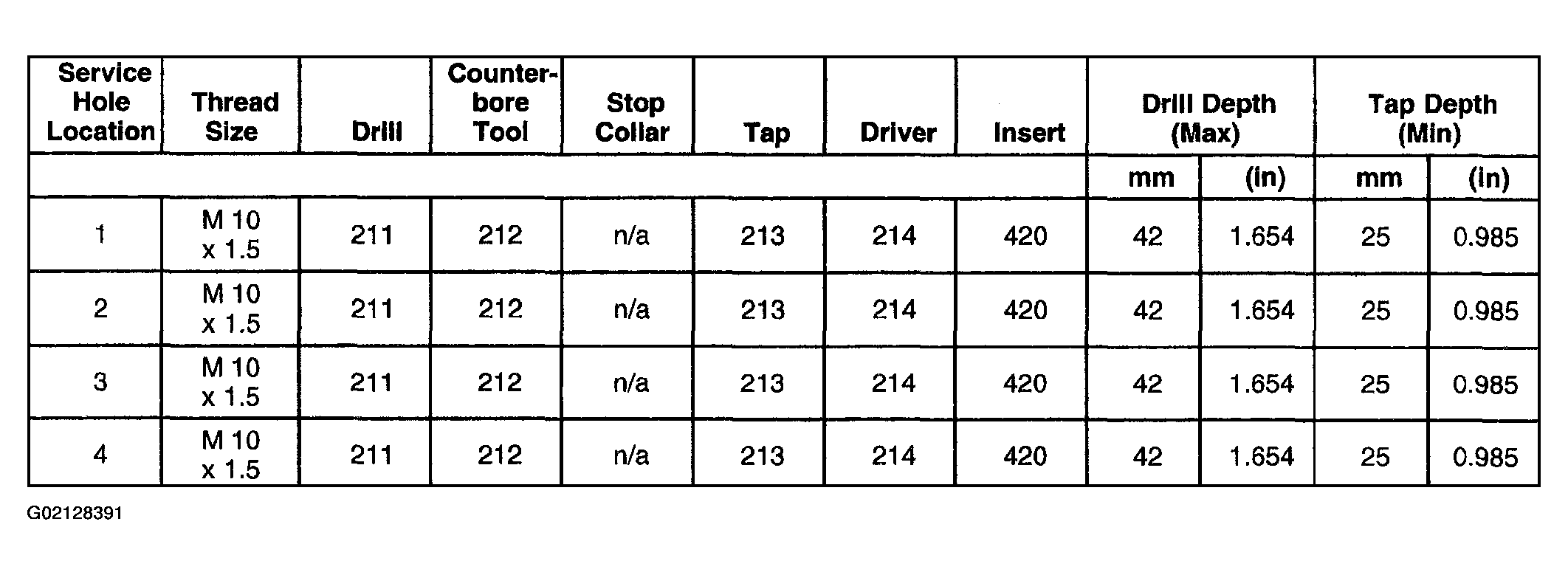

Fig 2: Thread Repair Specifications - Oil Pan - Right Side View Callouts
G02128391Courtesy of GENERAL MOTORS CORP.
