Liftgate Door Lock Actuator Connector End View

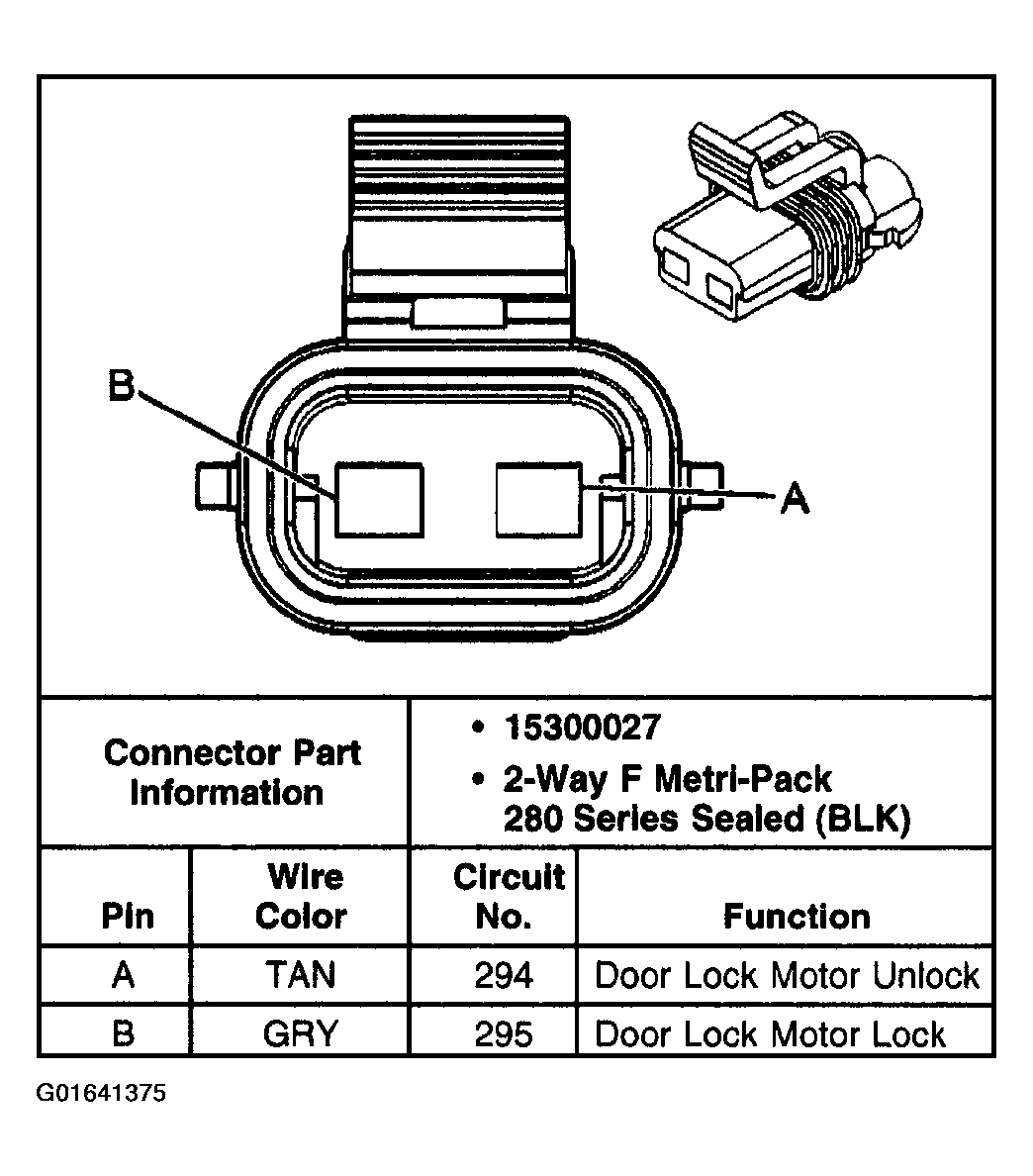

Fig 1: Liftgate Door Lock Actuator Connector End View
G01641375Courtesy of GENERAL MOTORS CORP.
