Adjustable Pedals Component Views

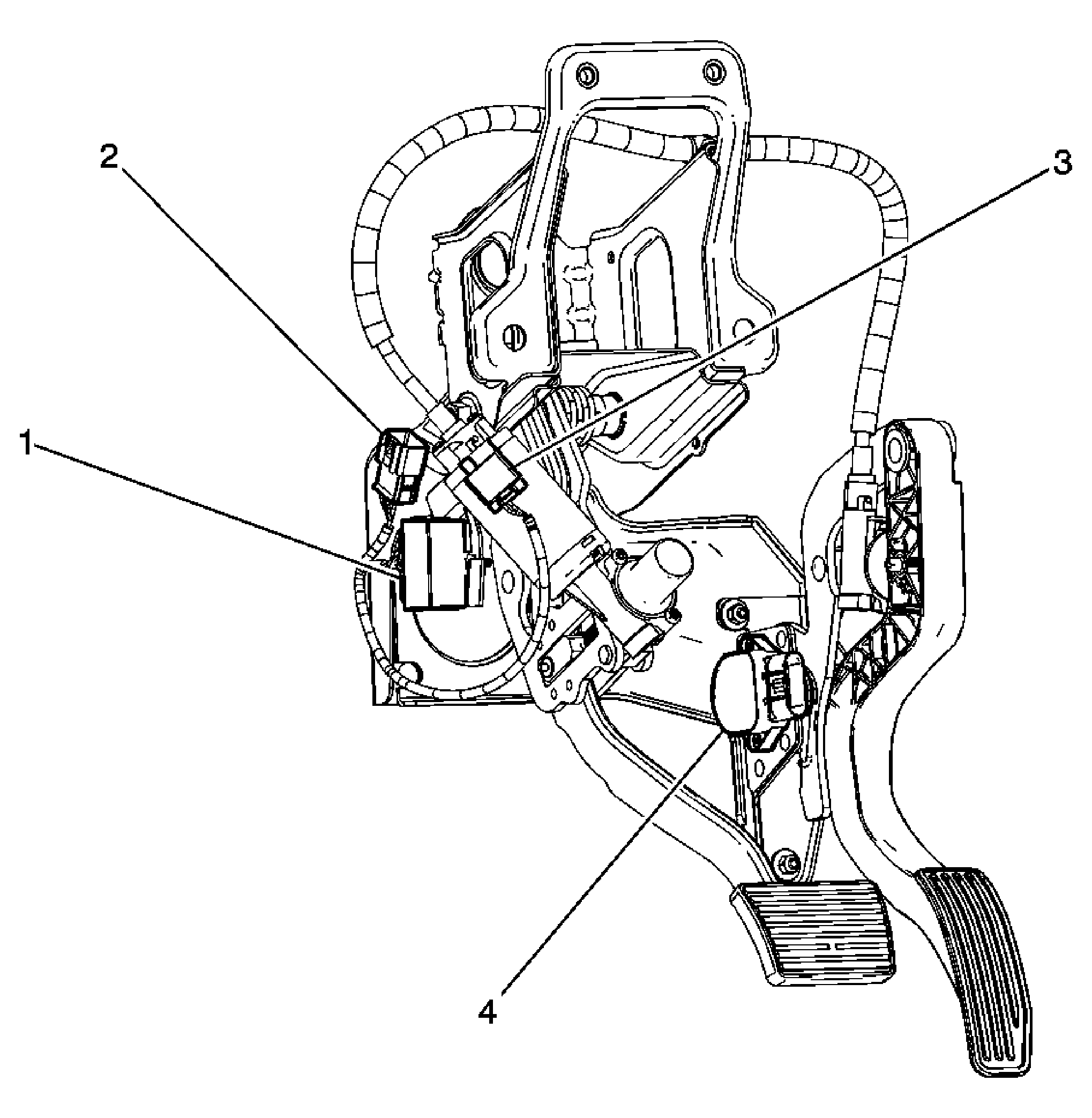

Fig 1: Lower LF of the Passenger Compartment - Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Adjustable Pedals (EAP) Relay
2	C225
3	Electronic Adjustable Pedals (EAP) Assembly Connector
4	Accelerator Pedal Position (APP) Sensor

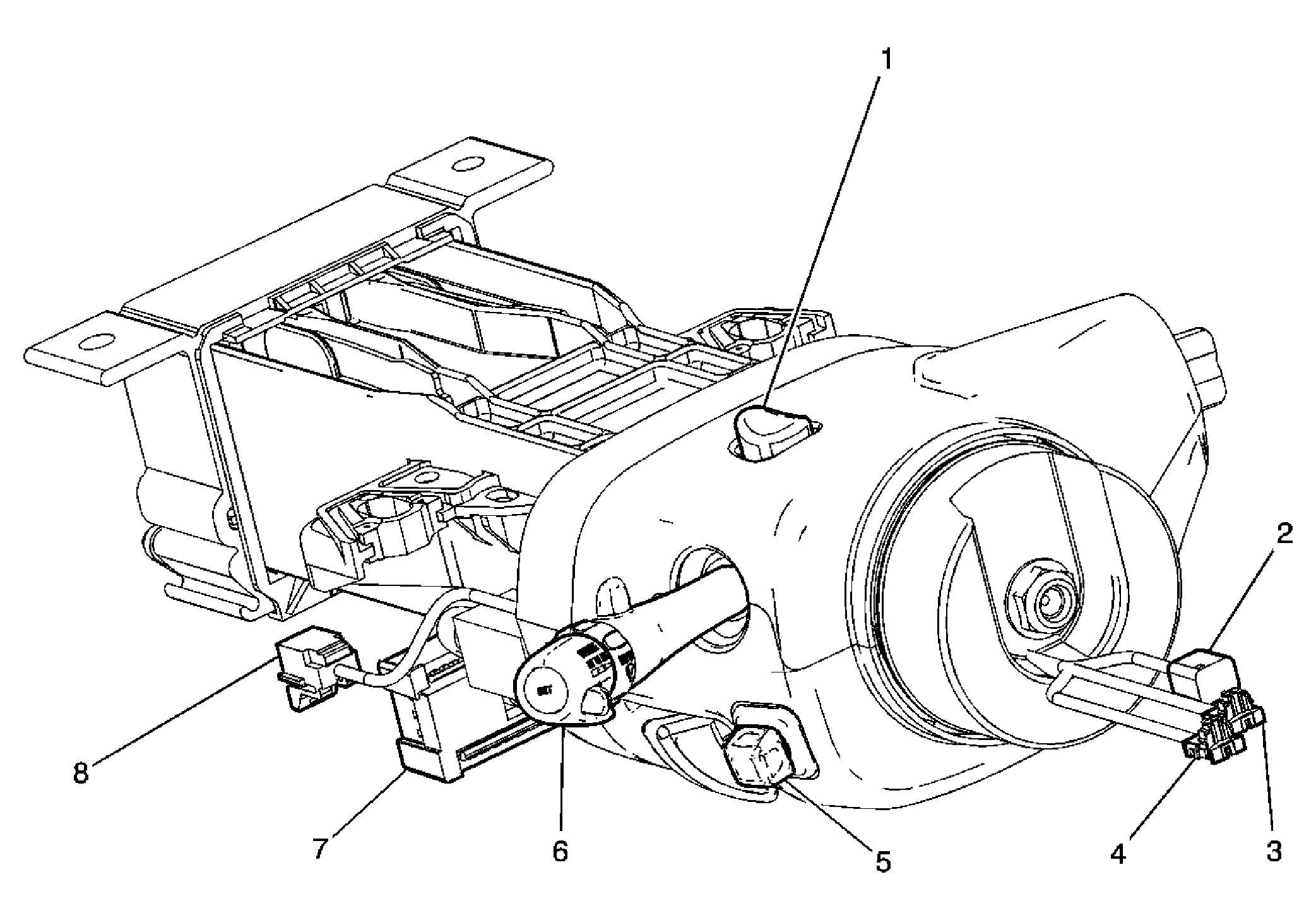

Fig 2: Left Side of the I/P - Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Inflatable Restraint Steering Wheel Module Coil Connector C4
3	Inflatable Restraint Steering Wheel Module Coil Connector C2
4	Inflatable Restraint Steering Wheel Module Coil Connector C3
5	Electronic Adjustable Pedals (EAP) Switch
6	Turn Signal/Multifunction Switch
7	C201
8	Inflatable Restraint Steering Wheel Module Coil Connector C1
