Wiper/Washer System Component Views

Fig 1: Windshield Washer Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Headlamp Washer Fluid Pump
3	Windshield Washer Fluid Pump
4	Rear Window Washer Fluid Pump
5	Air Cleaner Housing

Fig 2: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Harness
2	Windshield Wiper Motor

Fig 3: Outside Moisture Sensor (CE1)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Headlamp Washer Switch (CE4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Headlamp Washer Switch

Fig 5: Rear Window Wiper/Washer Switch (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch, Chevrolet
2	Trim Panel

Fig 6: Rear Window Wiper/Washer Switch (Buick, Oldsmobile, and GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trim Panel, GMC
2	Trim Panel, Buick and Oldsmobile
3	Rear Window Wiper/Washer Switch, Buick and Oldsmobile
4	Rear Window Wiper/Washer Switch, GMC

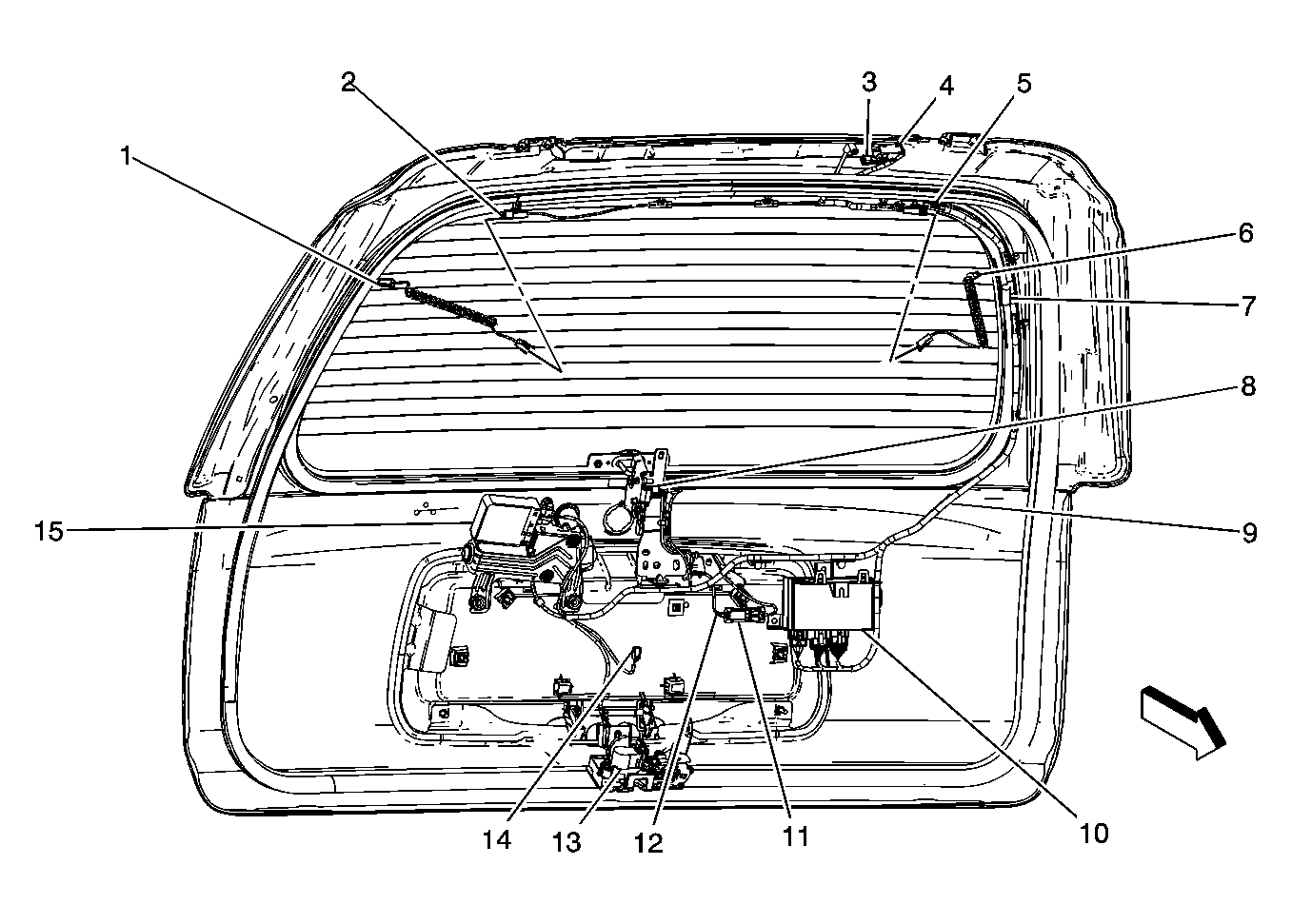

Fig 7: Liftgate (Except XUV)

Courtesy of GENERAL MOTORS CORP.

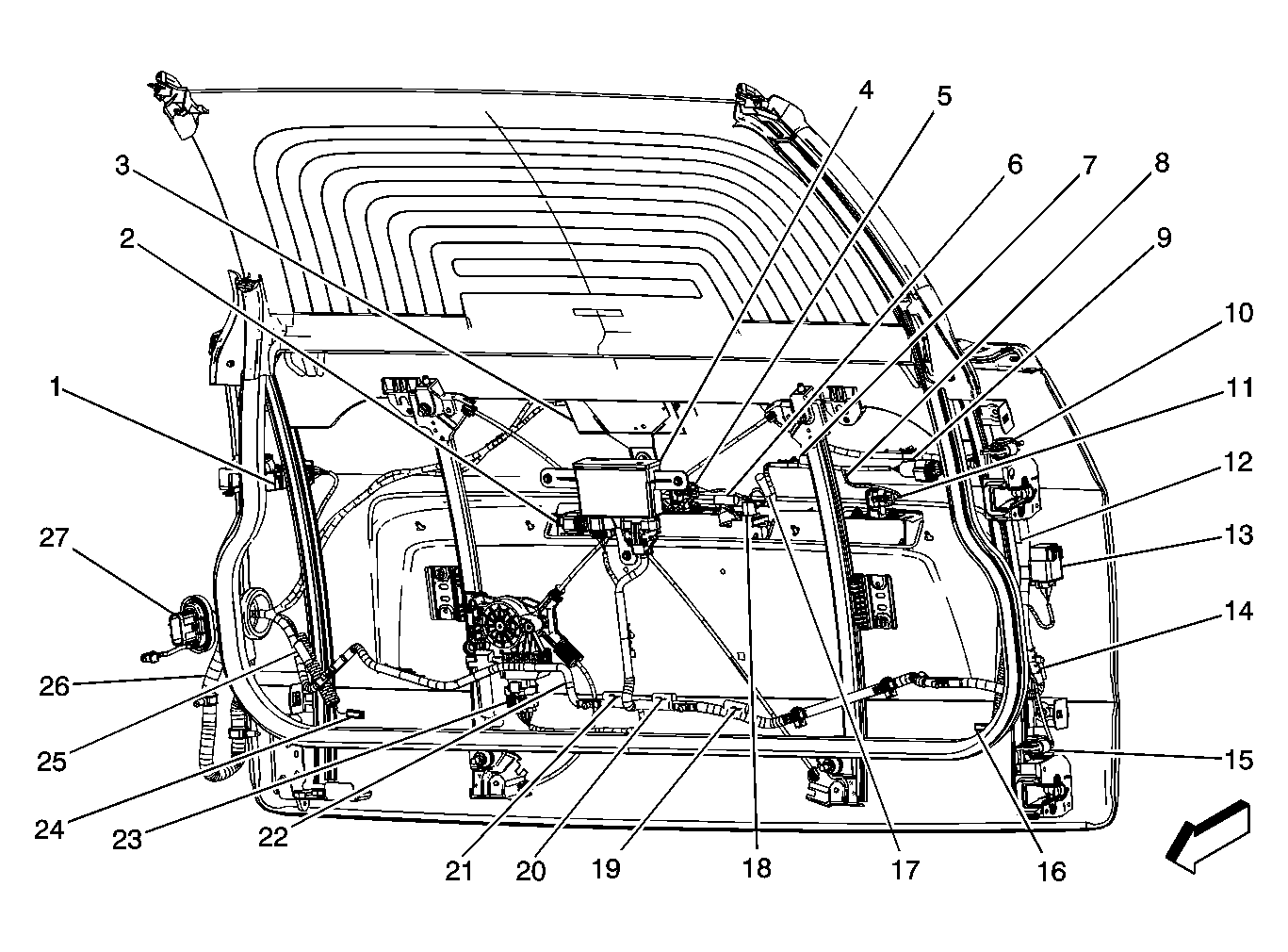

Fig 8: Endgate (XUV Only)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Endgate Actuator - Upper Right
2	Endgate Key Cylinder
3	Rear Window Wiper Motor
4	Endgate Module (EGM)
5	Endgate Drop Handle Switch
6	S902
7	S909
8	License Lamp Harness
9	C901
10	Endgate Actuator - Upper Left
11	Endgate Swing Handle Switch
12	S914
13	Endgate Latch Relay
14	S904
15	Endgate Actuator - Lower Left
16	Rear Window Defogger Grid Connector C1
17	S915
18	License Lamp - Left
19	S912
20	S913
21	S911
22	S910
23	Endgate Window Regulator
24	Rear Window Defogger Grid Connector C2
25	S905
26	Endgate Harness
27	C900
