Installation Procedure

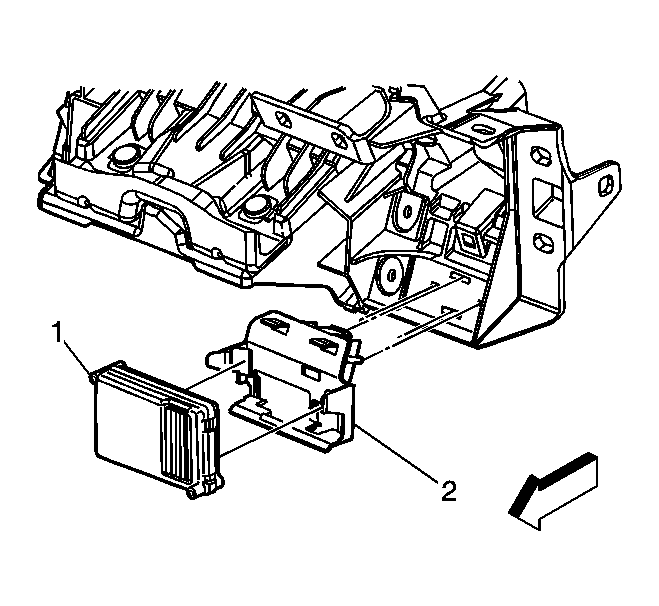

Fig 1: Removing/Installing Transfer Case Control Module

Courtesy of GENERAL MOTORS CORP.

Install the transfer case control module (1) to the mounting bracket.
Connect the three electrical connectors to the transfer case control module.
Install the transfer case control module and mounting bracket to the instrument panel mag beam.

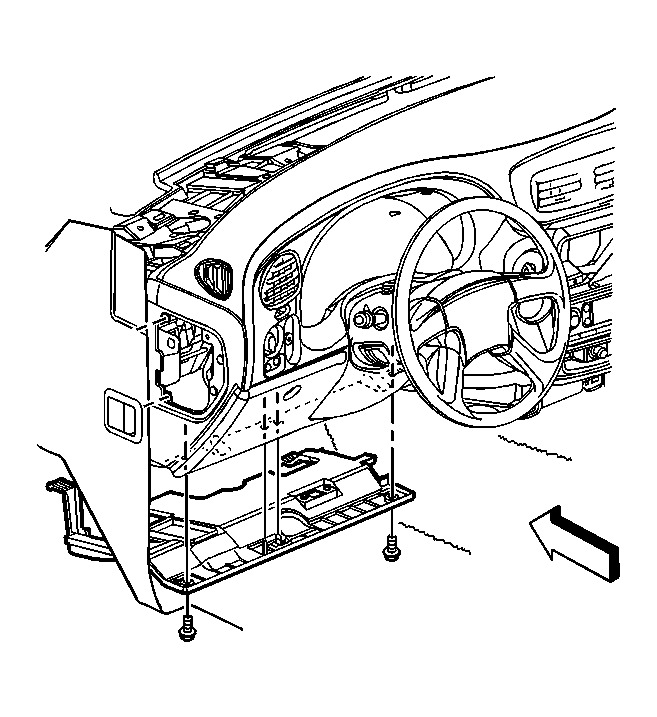

Fig 2: Removing/Installing Closeout/Insulator Panel - Left

Courtesy of GENERAL MOTORS CORP.

Install the left side closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel Gages and Console.

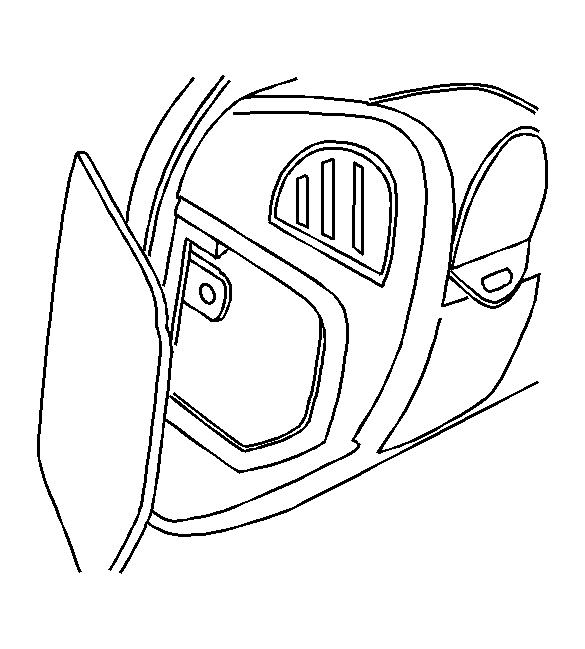

Fig 3: Locating Access Panel

Courtesy of GENERAL MOTORS CORP.

Install the access panel.
Program the transfer case shift control module. Refer to Transfer Case Control Module Reprogramming .
