Front Lighting (W49)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

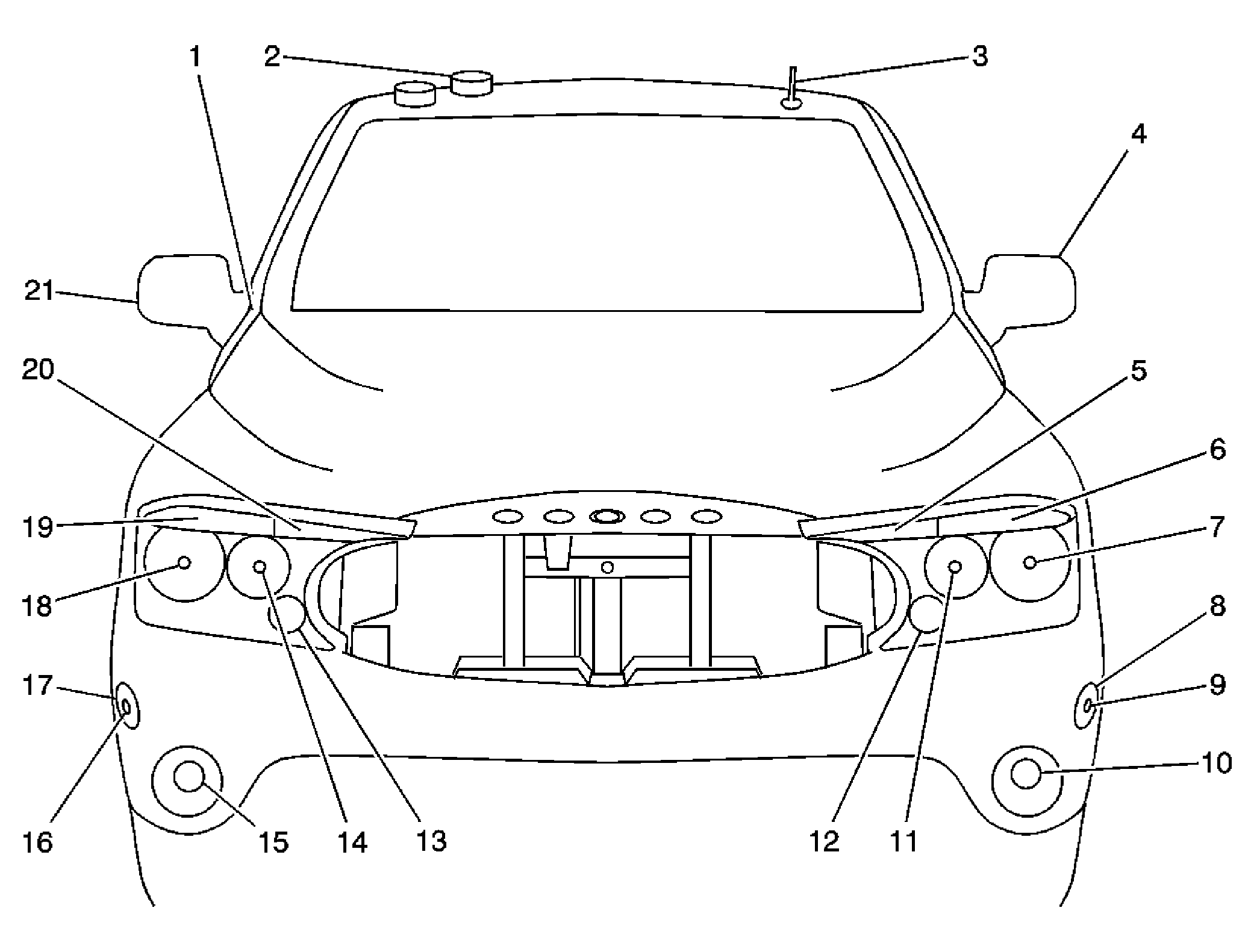

| Callout | Component Name |
|---|---|
| 1 | Radio Antenna |
| 2 | Digital Radio Antenna |
| 3 | Cellular Antenna |
| 4 | Outside Rearview Mirror - Driver |
| 5 | Park Lamp - LF |
| 6 | Park Lamp - LF |
| 7 | Headlamp - High Beam - Left |
| 8 | Marker Lamp - LF |
| 9 | Cornering Lamp - Left (T87) |
| 10 | Fog Lamp - LF (T96) |
| 11 | Headlamp - Low Beam - Left |
| 12 | Turn Signal Lamp - LF |
| 13 | Turn Signal Lamp - RF |
| 14 | Headlamp - Low Beam - Right |
| 15 | Fog Lamp - RF (T96) |
| 16 | Cornering Lamp - Right (T87) |
| 17 | Marker Lamp - RF |
| 18 | Headlamp - High Beam - Right |
| 19 | Park Lamp - RF |
| 20 | Park Lamp - RF |
| 21 | Outside Rearview Mirror - Passenger |
