Steering Columns: Description

Steering column is of the conventional type. The shaft is encased in a mast jacket and the assembly is attached to the instrument panel by support brackets. At the lower end the steering shaft is connected to the rack and pinion steering gear through a universal joint and intermediate shaft.

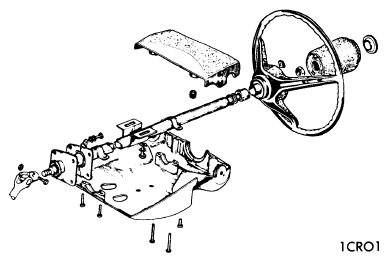

Fig 1: Cricket Steering Column
G09345831Courtesy of CHRYSLER GROUP, LLC
