Air Switching Valve

When engine speed sensor detects 1600-2000 RPM (1400-1800 RPM on 2.6L engines), it deactivates air switching valve by opening solenoid valve. This maintains smooth vehicle operation during engine mode transient stage and prevents engine stalling.

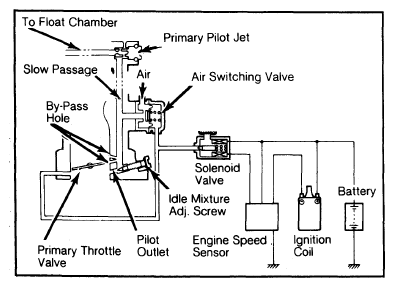

Fig 1: Air Switching Valve

Courtesy of CHRYSLER GROUP, LLC
