Ignition Timing

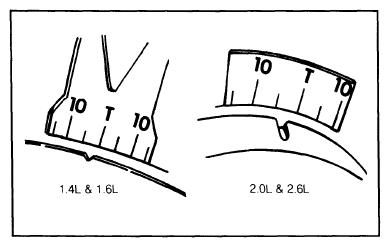

- With engine at normal operating temperature, turn headlights, air conditioning controls (if equipped), and all electrical accessories off. Connect tachometer and timing light.
Courtesy of CHRYSLER GROUP, LLC
- Loosen distributor nut and rotate distributor as necessary to adjust timing. Tighten mounting nut.
IGNITION TIMING (Degrees BTDC @ RPM)
| Application |
Timing |
| 1400 cc |
5@650 |
| 1600 cc |
5@700 |
| 2000 cc |
5@750 |
| 2600 cc |
| |
Man. Trans. |
7@750 |
| |
Auto. Trans. |
7@800 |
