Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

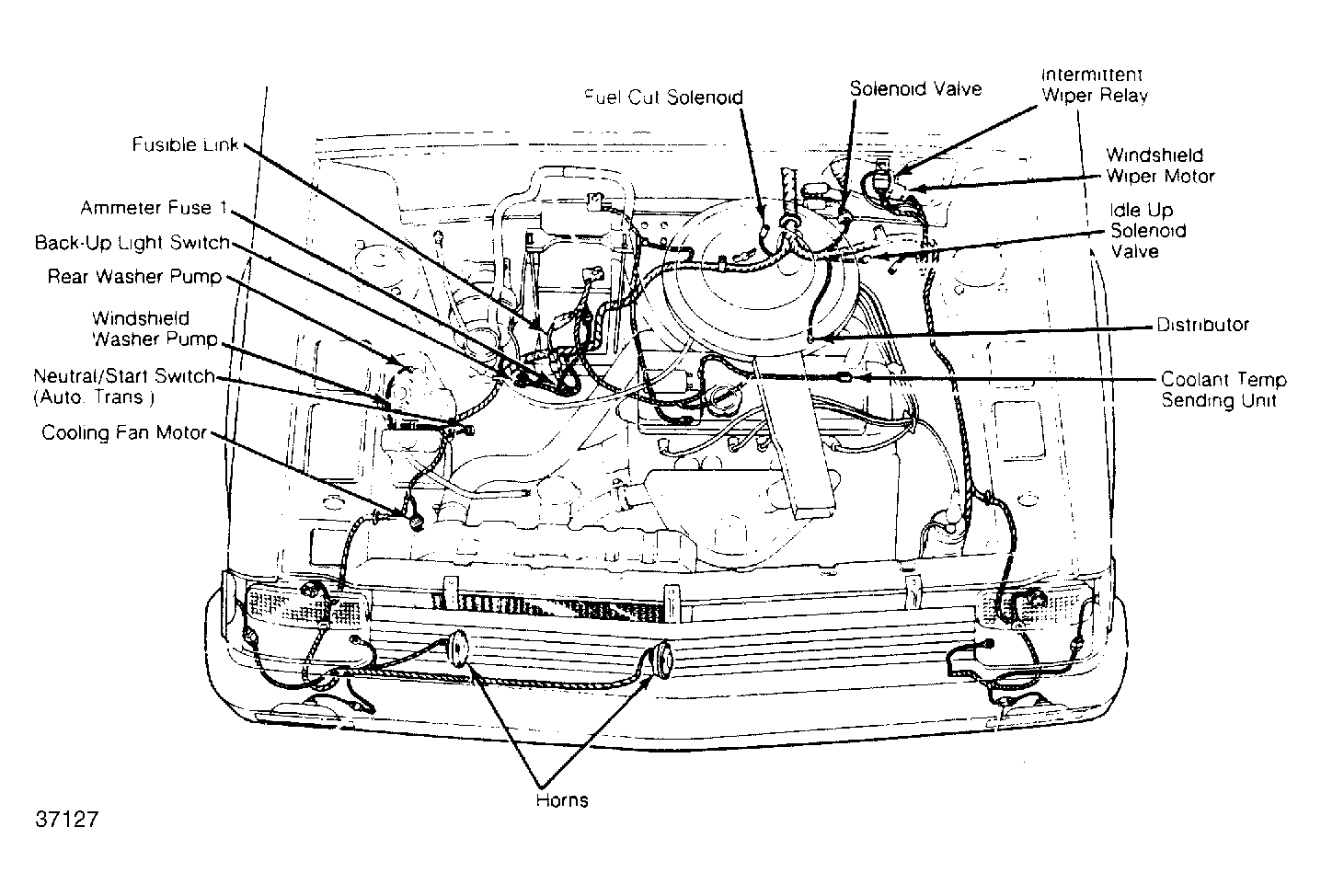

| Ammeter In-Line Fuse 1 | On battery wire harness. See Figure. |
| Ammeter In-Line Fuse 2 | On wiring harness along left side of engine bay. |
| Diode | On left side wiring harness, below ignition coil. |
| Fusible Link | On battery wire harness. See Figure. |
| Hazard/Turn Signal Flasher | On relay block, under left side of dash. |
| Idle Up Solenoid Diode | On left rear corner of engine bay. |
| Radio Noise Suppression Capacitors | Above ignition coil and at rear of alternator. |
| Relay Block | Behind driver's kick panel. |
