Wiring Diagrams

Fig 1: Wiring Schematic of Ignition System W/Internal Control Module
G29005

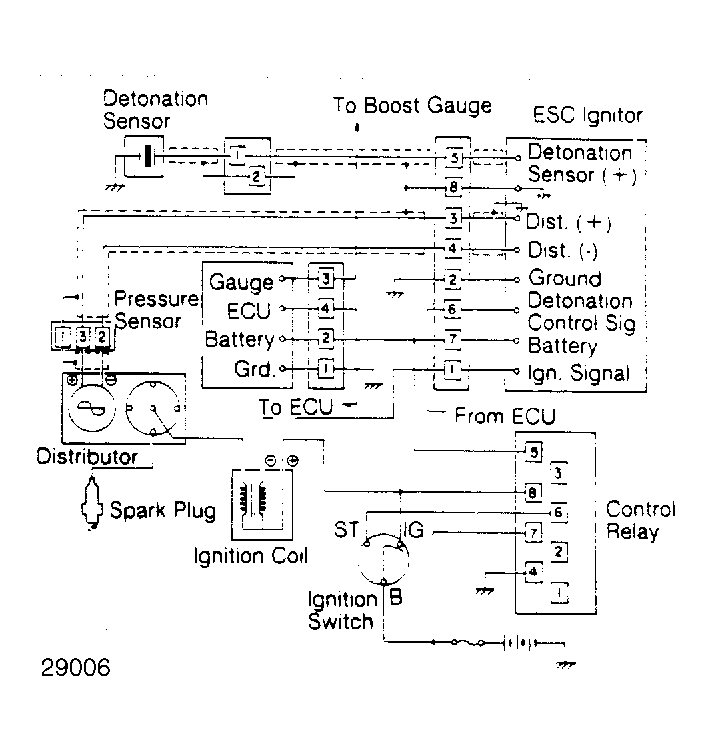

Fig 2: Wiring Schematic of Starion With ECI System
G29006
