Output Signal Charts

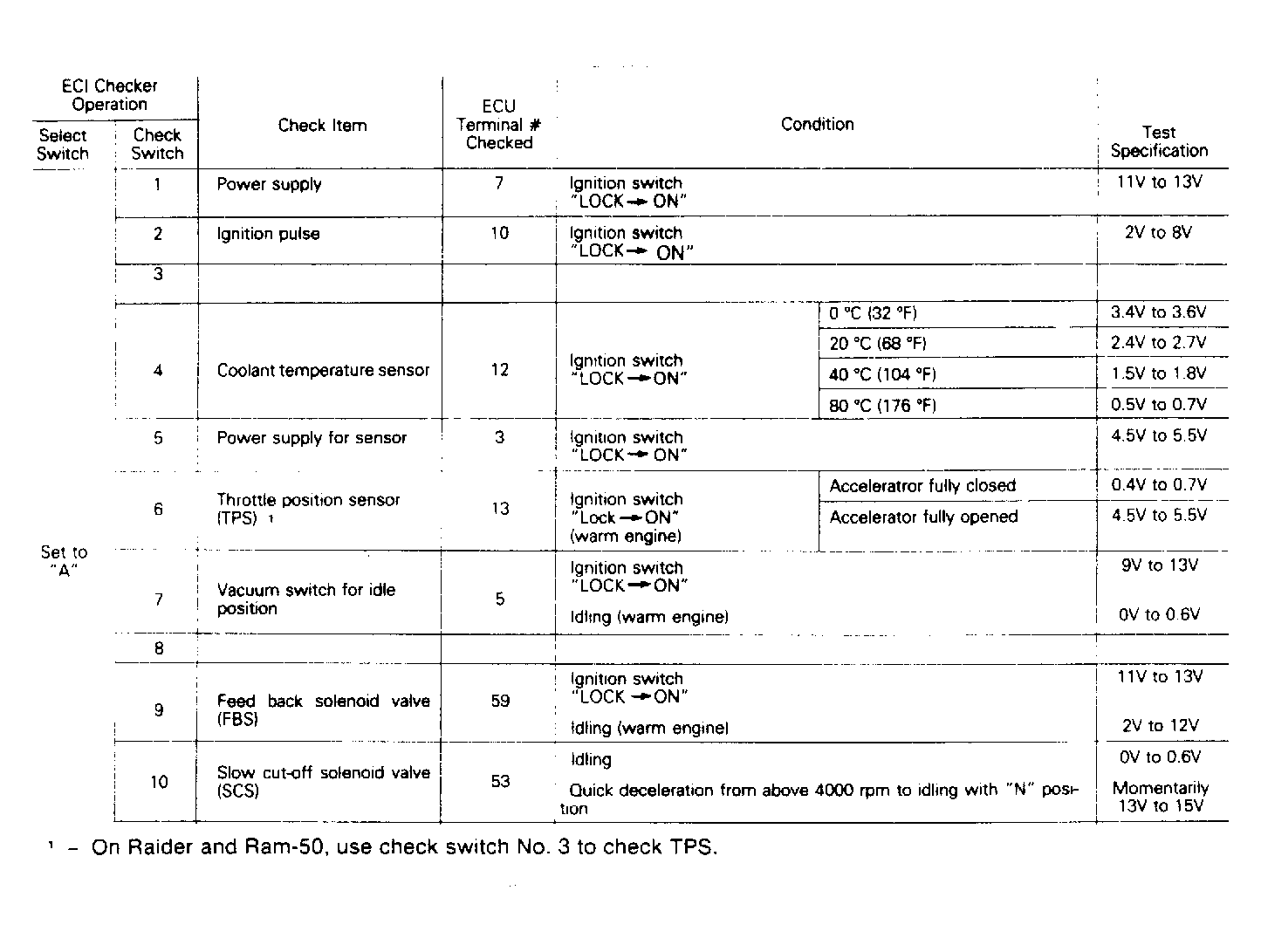

Fig 1: Output Signal Chart (Raider & Ram-50) (1 of 2)

G94411

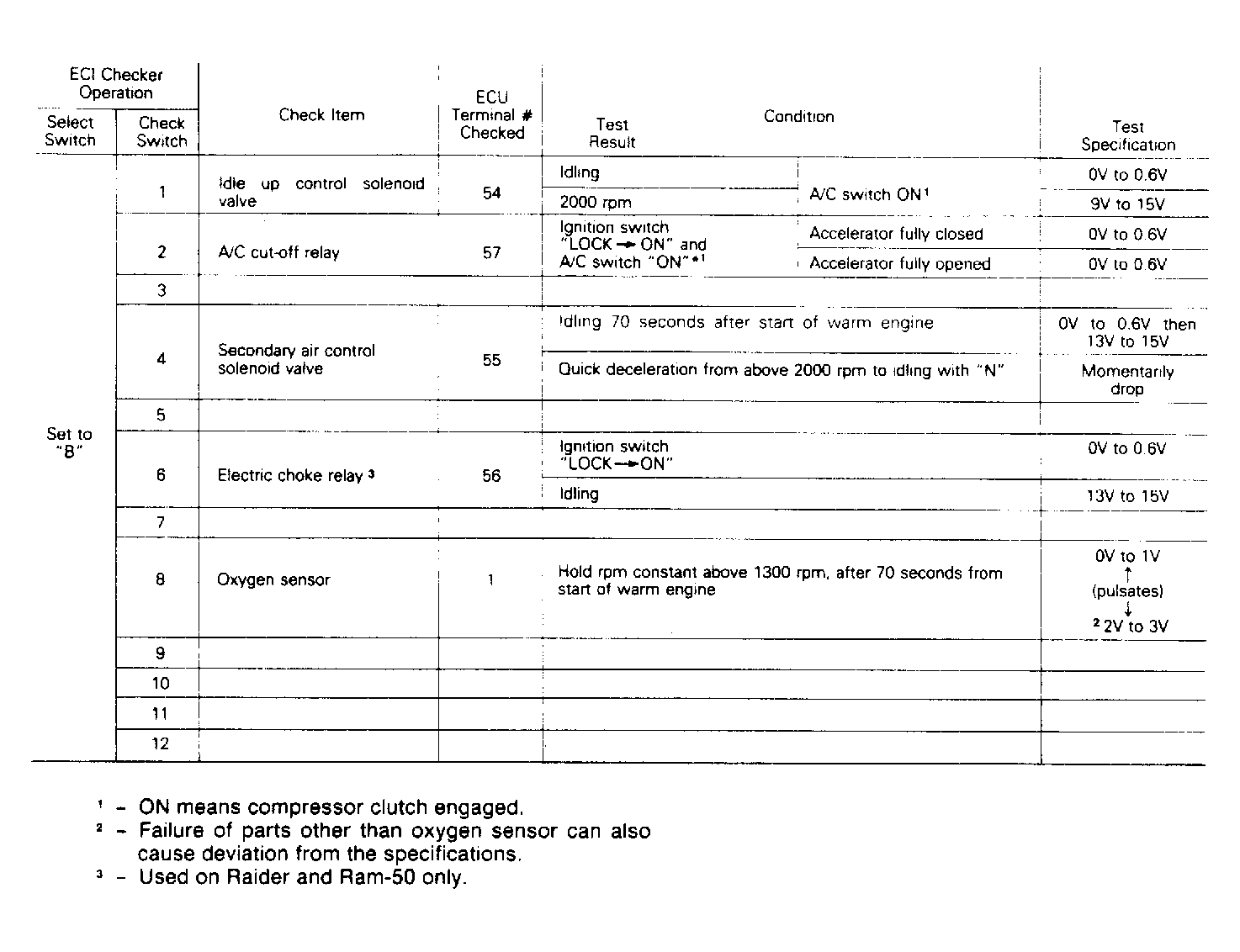

Fig 2: Output Signal Chart (Raider & Ram-50) (2 of 2)

G94413

Fig 3: Output Signal Chart (Colt) (1 of 2)

G94414

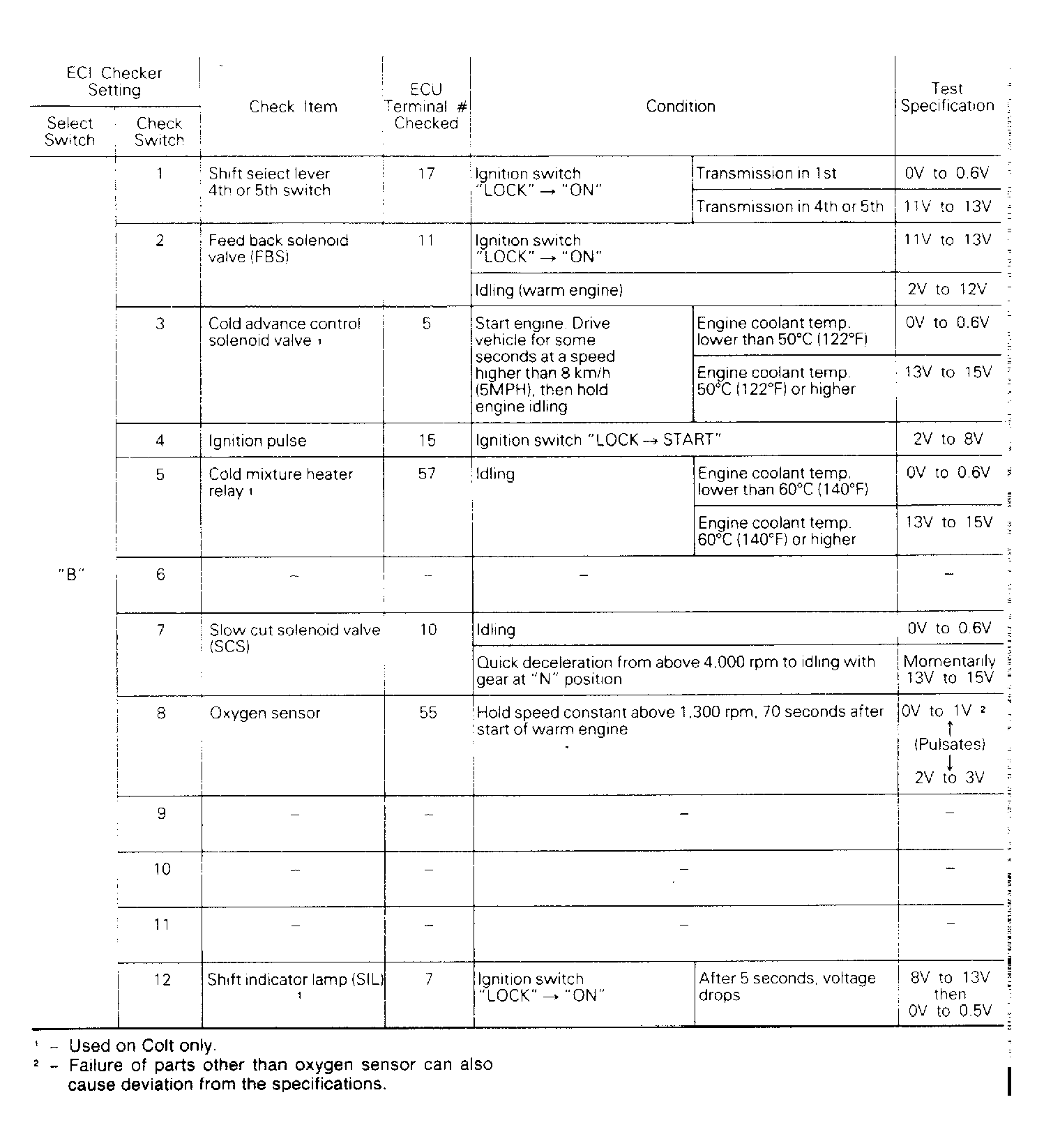

Fig 4: Output Signal Chart (Colt) (2 of 2)

G94415
