Dr-8: Code 21 "O2 Sensor Shorted Hi (Non-Turbo)
Fig 1: DR-8: Circuit Diagram

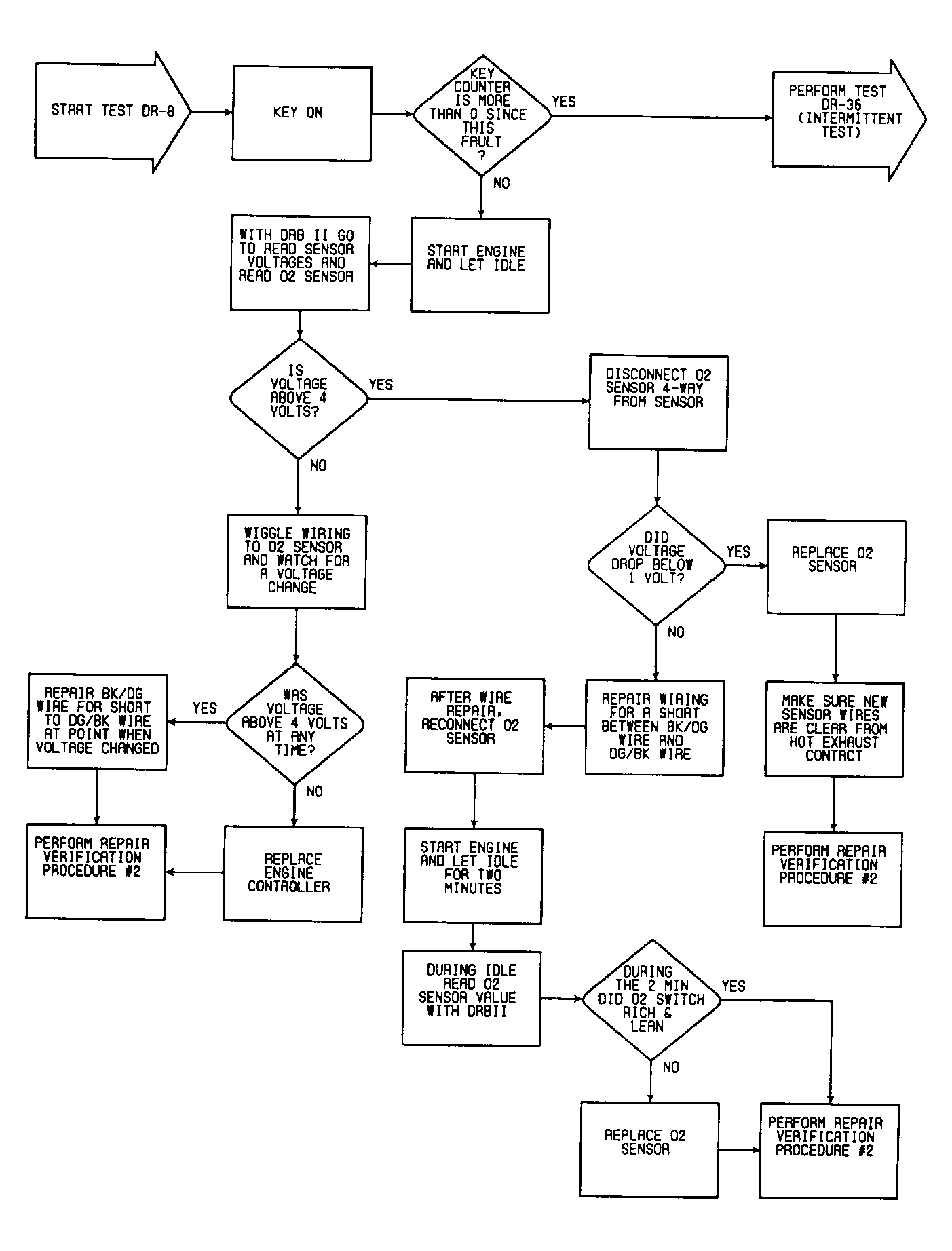

Fig 2: DR-8: Flow Chart
