Dr-17: No-Fault Code Test, DRB-II Sensor Test

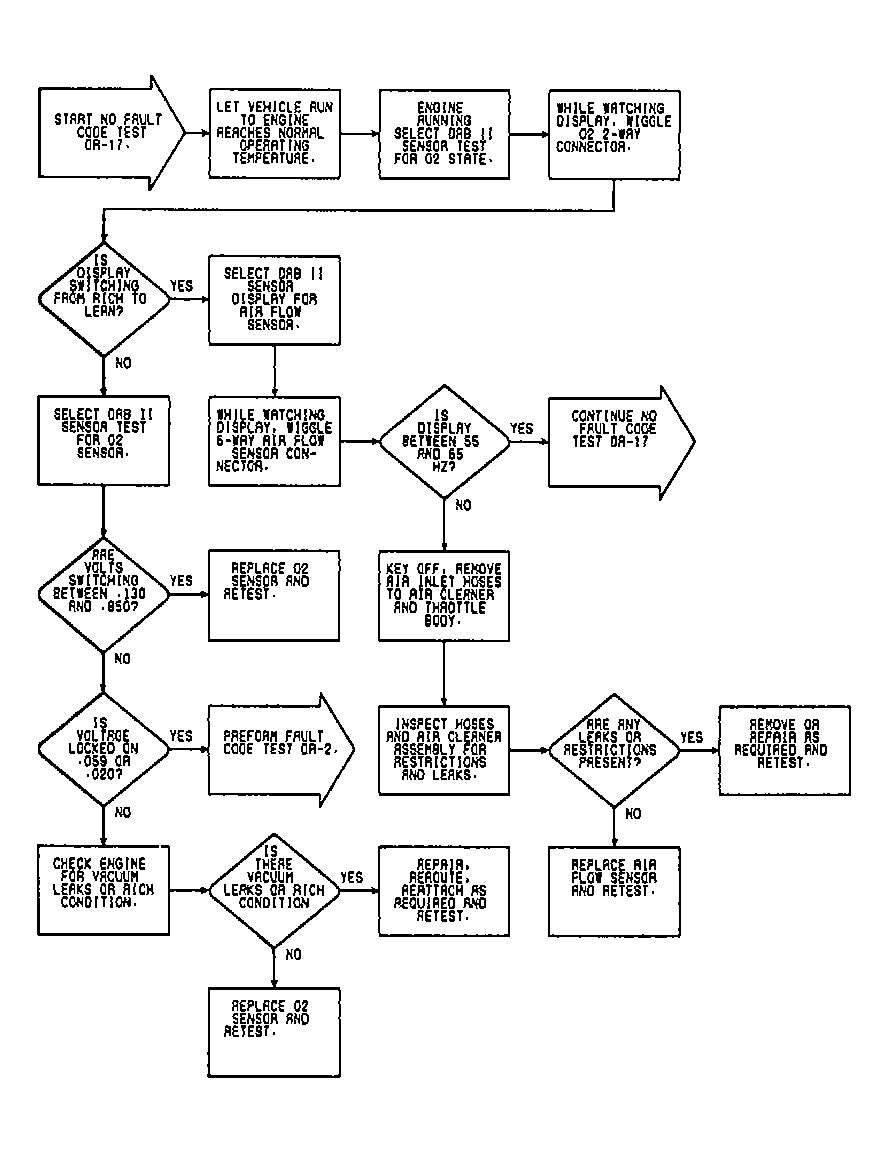

Fig 1: DR-17 Flow Chart & Circuit Diagram (1 of 7)

Fig 2: DR-17 Flow Chart & Circuit Diagram (2 of 7)

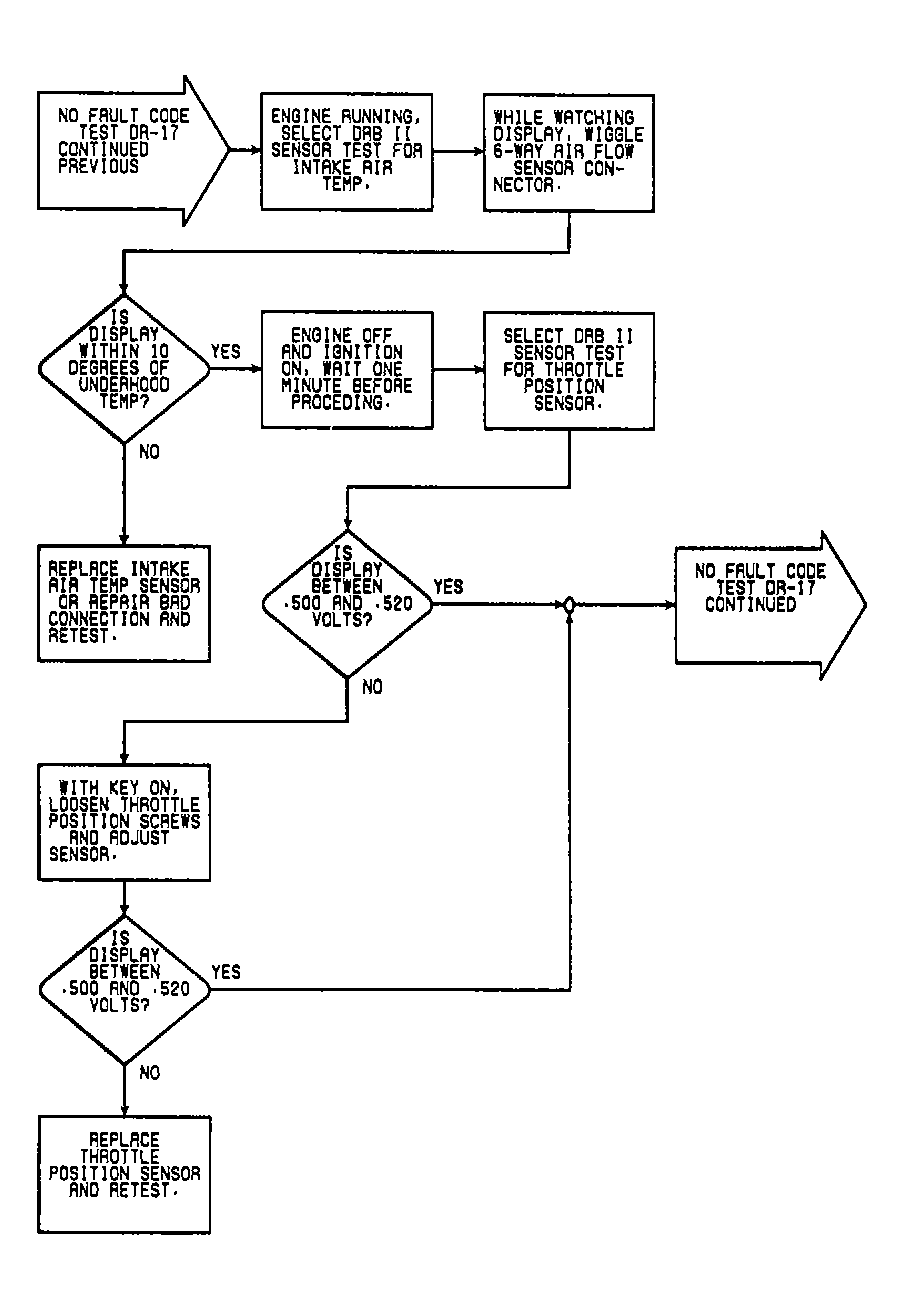

Fig 3: DR-17 Flow Chart & Circuit Diagram (3 of 7)

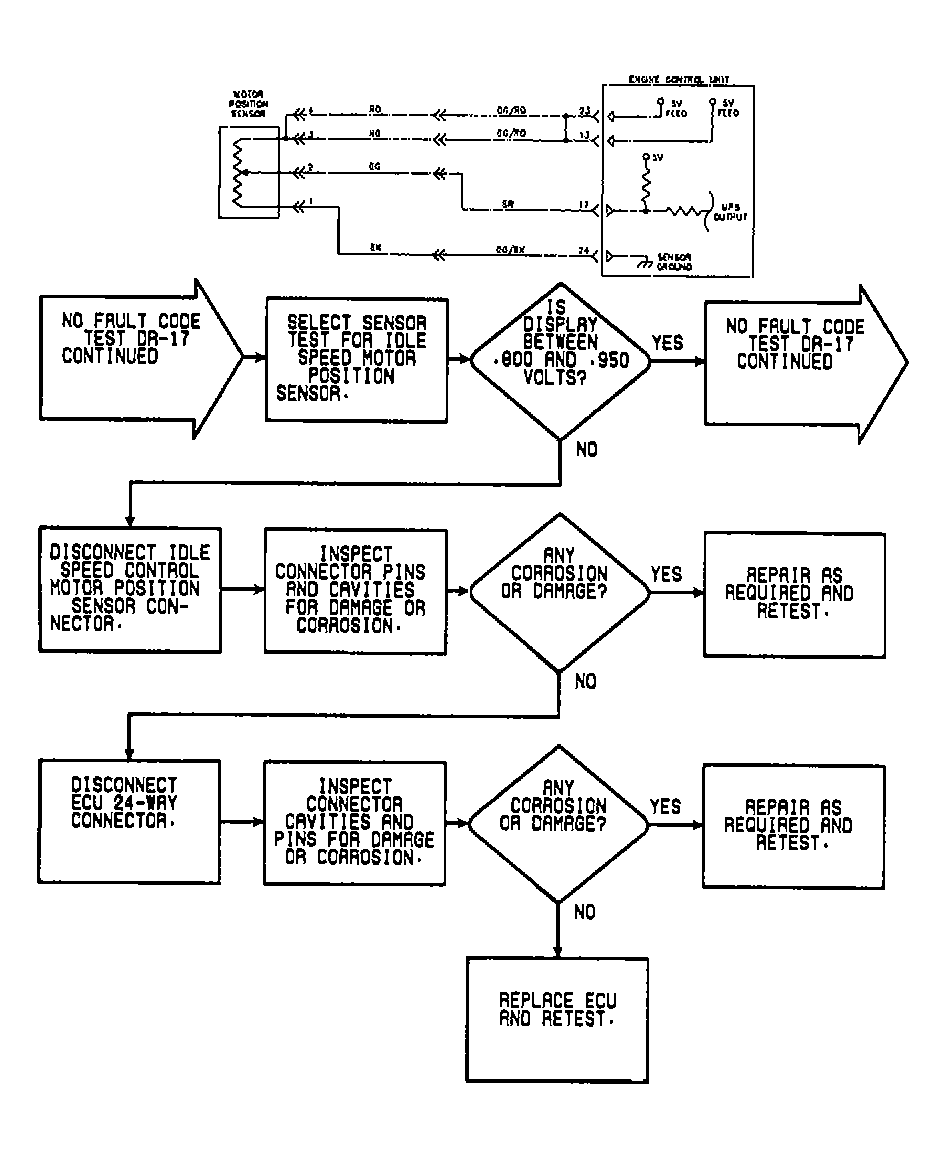

Fig 4: DR-17 Flow Chart & Circuit Diagram (4 of 7)

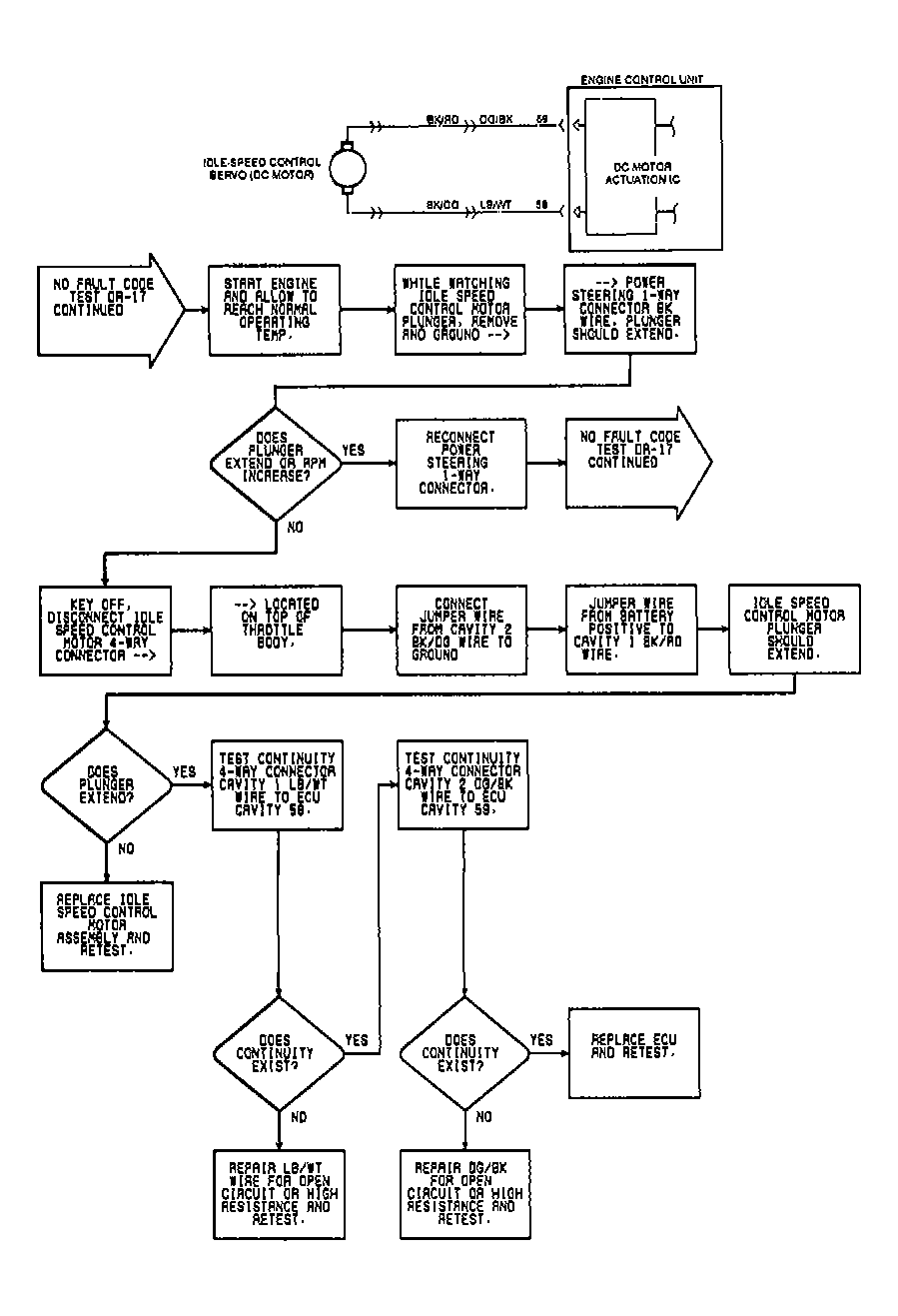

Fig 5: DR-17 Flow Chart & Circuit Diagram (5 of 7)

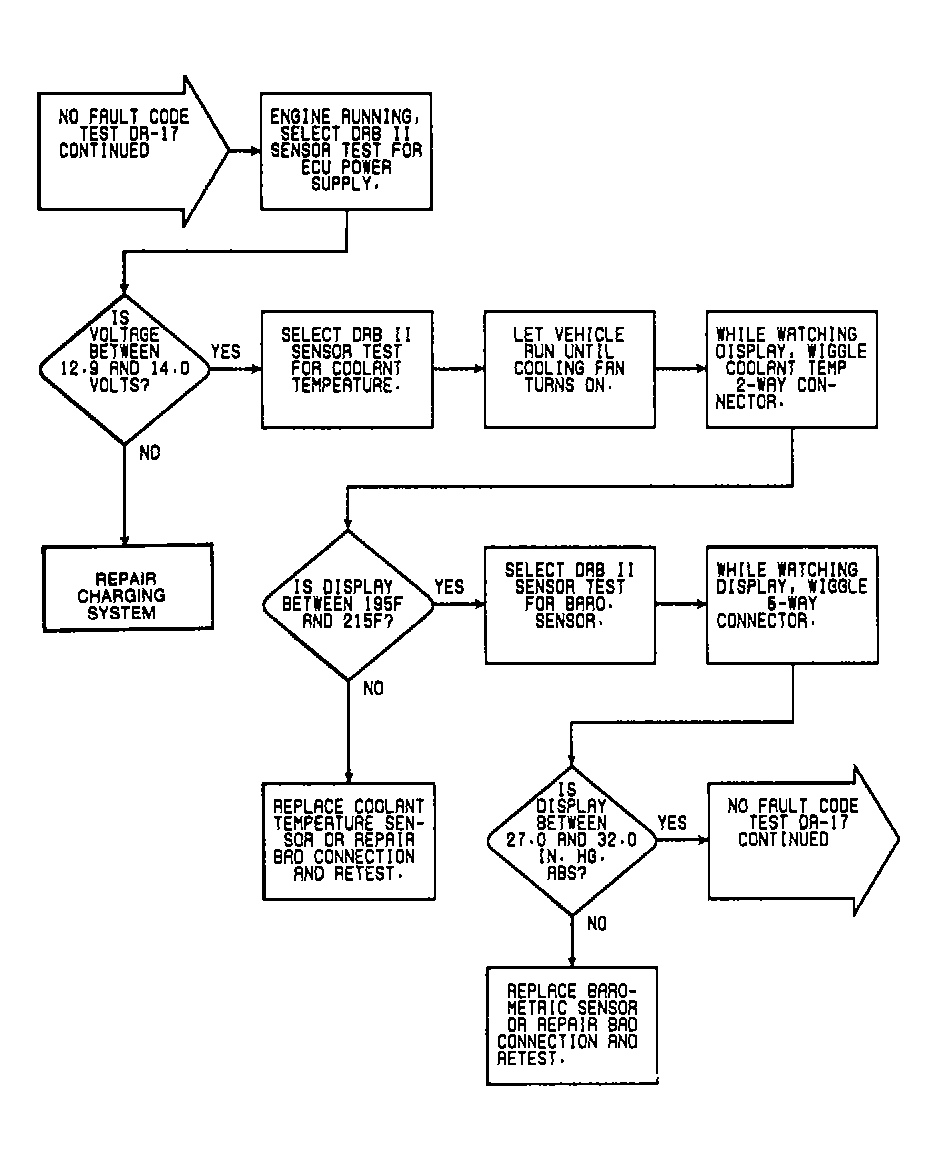

Fig 6: DR-17 Flow Chart & Circuit Diagram (6 of 7)

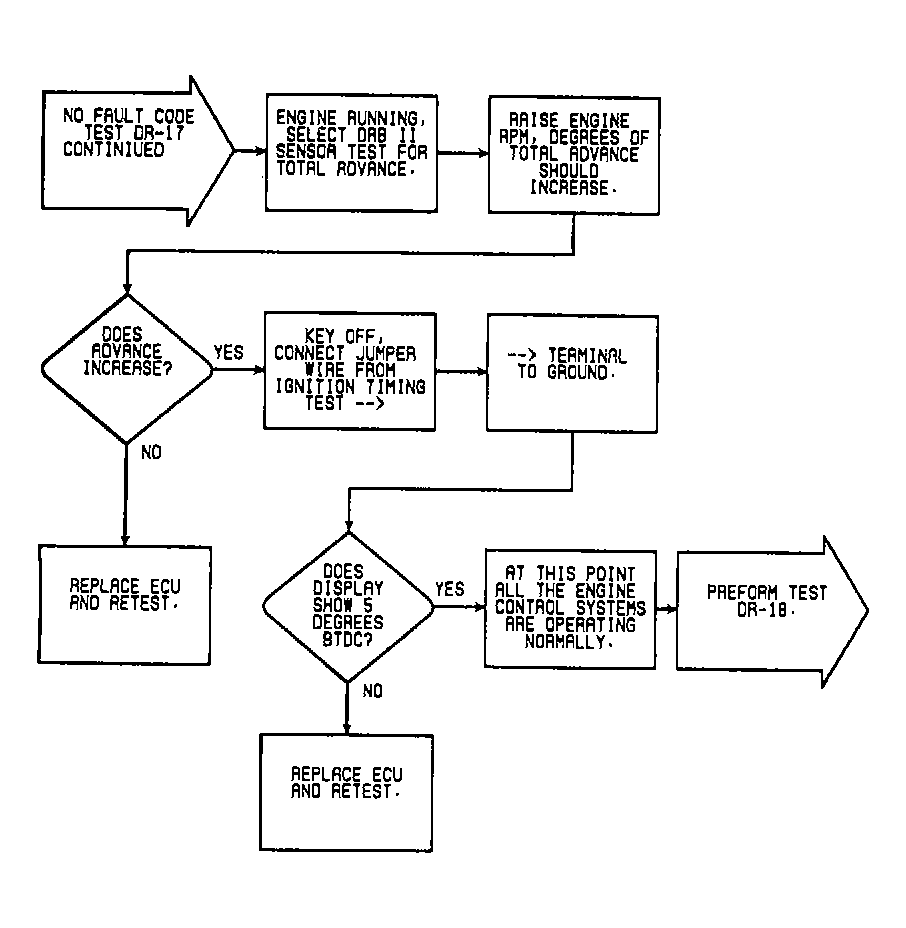

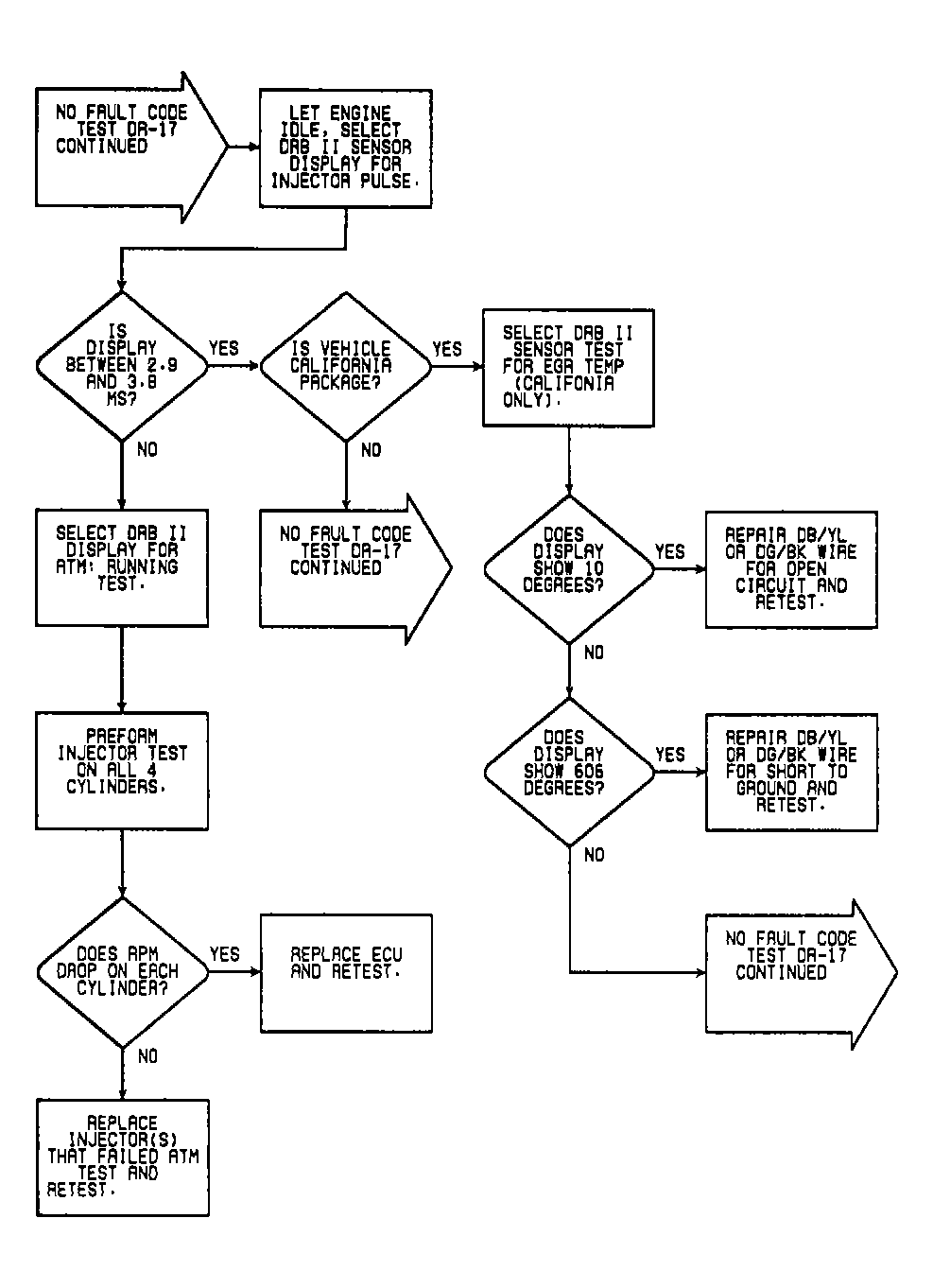

Fig 7: DR-17 Flow Chart & Circuit Diagram (7 of 7)
