Cruise Control: Service and Repair

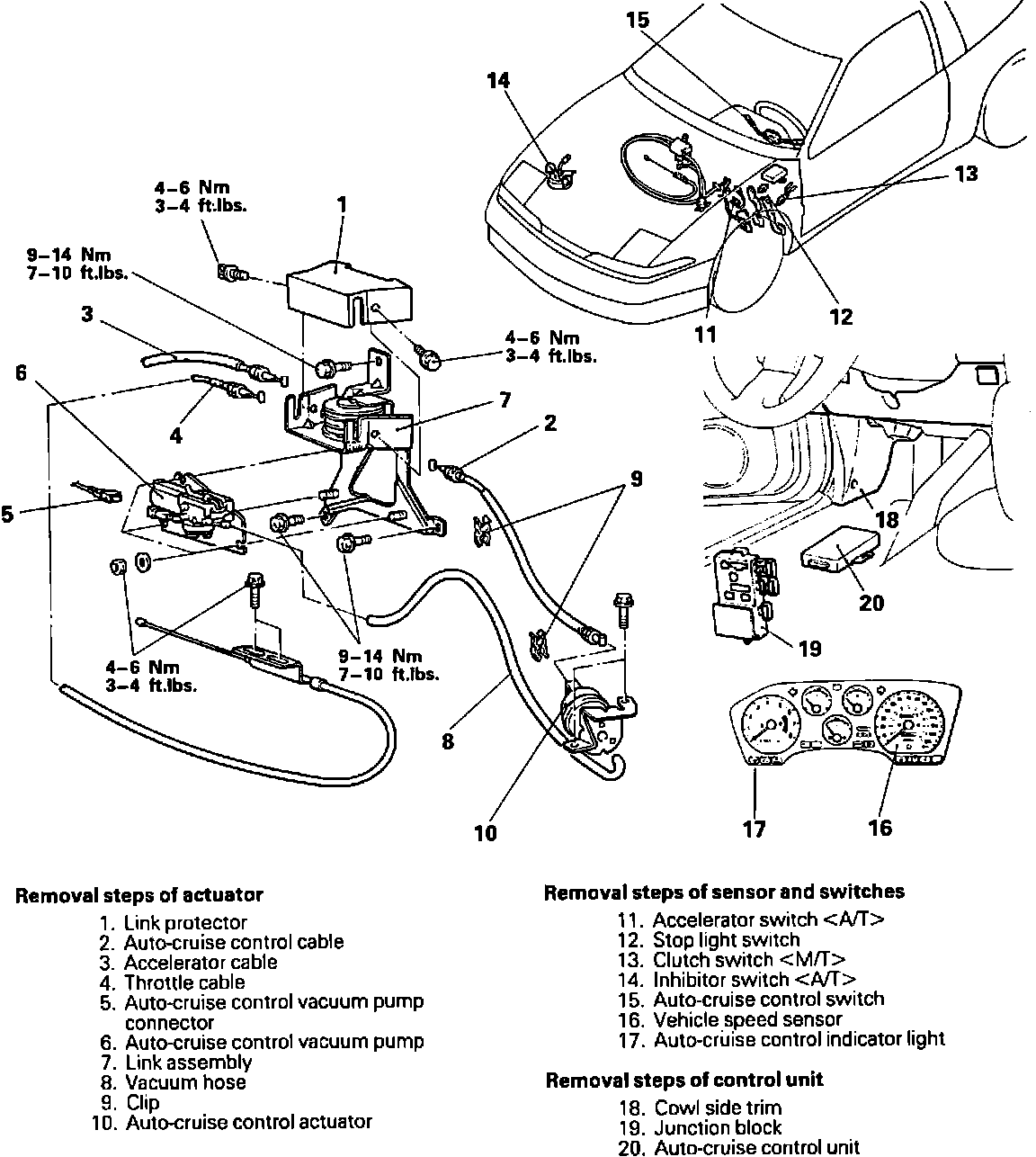

Fig. 105 Component Location:





Remove components in order as shown when replacing actuator and speed control components. Reverse procedure to install.
