NS-6: Testing Control Relay

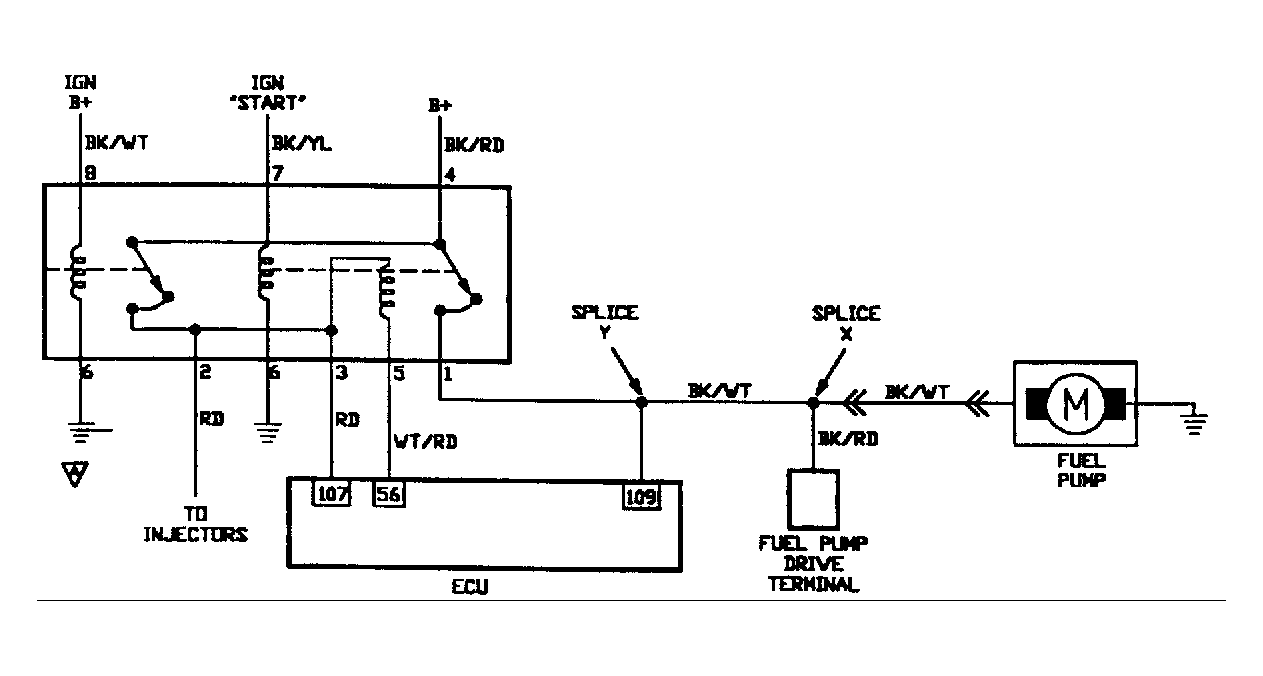

Fig 1: No Start Test 6 Schematic Testing Control Relay
G90A15370

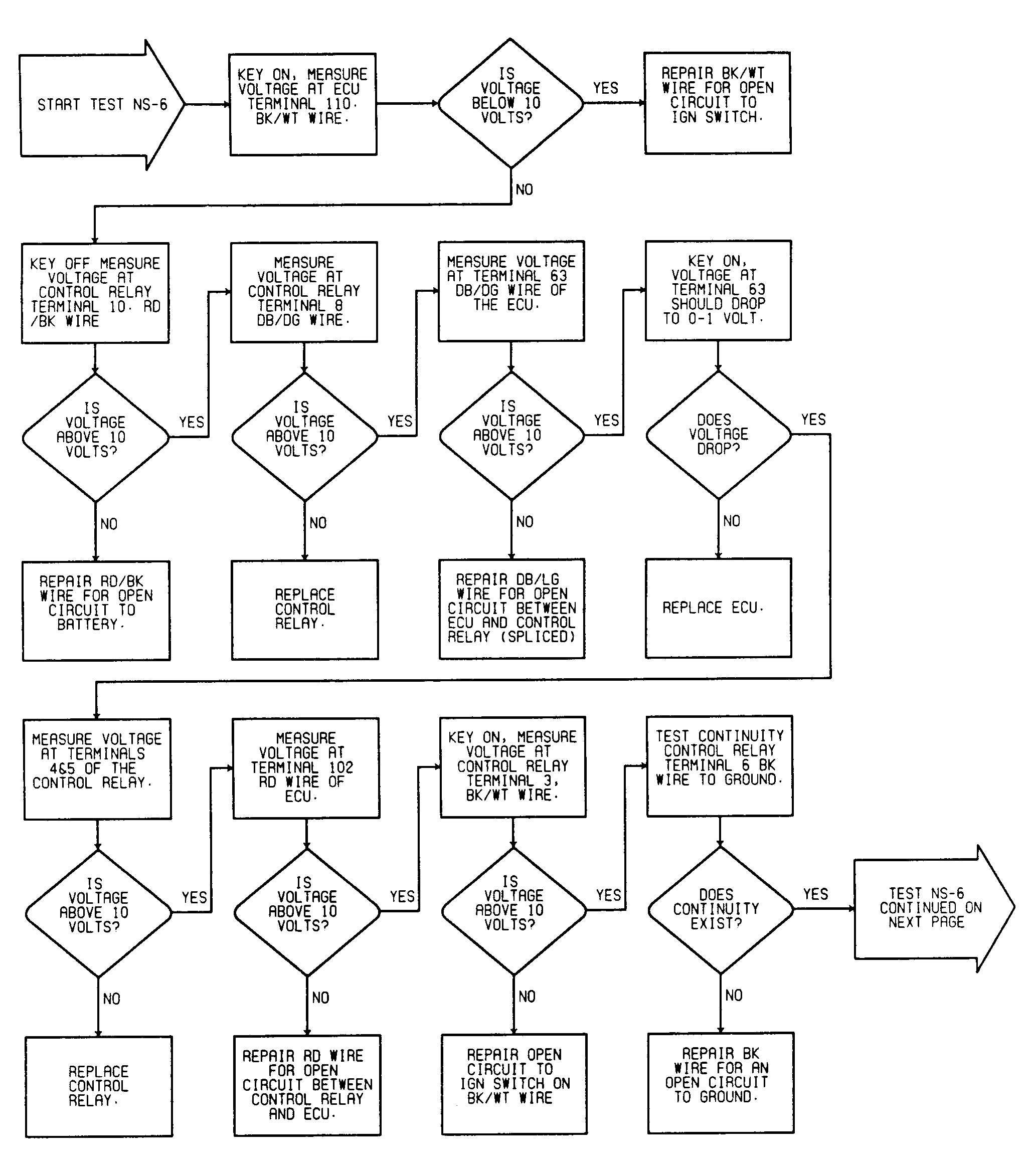

Fig 2: No Start Test 6 Flow Chart Testing Control Relay
G91F16712
