Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See Figure
Auto Shutdown (ASD) Relay	Fig 1
Barometric Pressure Solenoid	Fig 2
Camshaft Position Sensor	Fig 3
Crankshaft Position Sensor	Fig 4
Distributor Connector (Harness Side)	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9 & Fig 10
Idle Air Control (IAC) Motor	Fig 11
Ignition Coil	Fig 12
Injector Connector	Fig 13
Intake Air Temperature (IAT) Sensor	Fig 14
Manifold Absolute Pressure (MAP) Sensor	Fig 15
Manifold Tuning Valve (MTV) Solenoid	Fig 16
Oxygen Sensor	Fig 17
Radiator Fan Relay	Fig 18
Torque Converter Clutch Solenoid	Fig 19
Throttle Position Sensor (TPS)	Fig 20
Wastegate Solenoid	Fig 21
Powertrain Control Module (PCM)	Fig 22

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

Fig 1: Auto Shutdown (ASD) Relay Connector Terminal ID

Courtesy of CHRYSLER CORP.

BAROMETRIC PRESSURE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Ignition 12-Volt Feed
2	Light Blue	Control

Fig 2: Barometric Pressure Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Tan/Yellow	Signal

Fig 3: Camshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 4: Crankshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

DISTRIBUTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Black/Light Blue	Ground

Fig 5: Distributor Connector Terminal ID

Courtesy of CHRYSLER CORP.

ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: Engine Coolant Temperature (ECT) Sens Connector Terminal ID

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue

Ignition 12-Volt Feed

Pink/Black

Control

⁽¹⁾	Dark Blue/White on AG and AJ bodies and AA body.

Fig 7: Evaporative Purge Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Black	Ground

Fig 8: Fuel Pump Connector Terminal ID

Courtesy of CHRYSLER CORP.

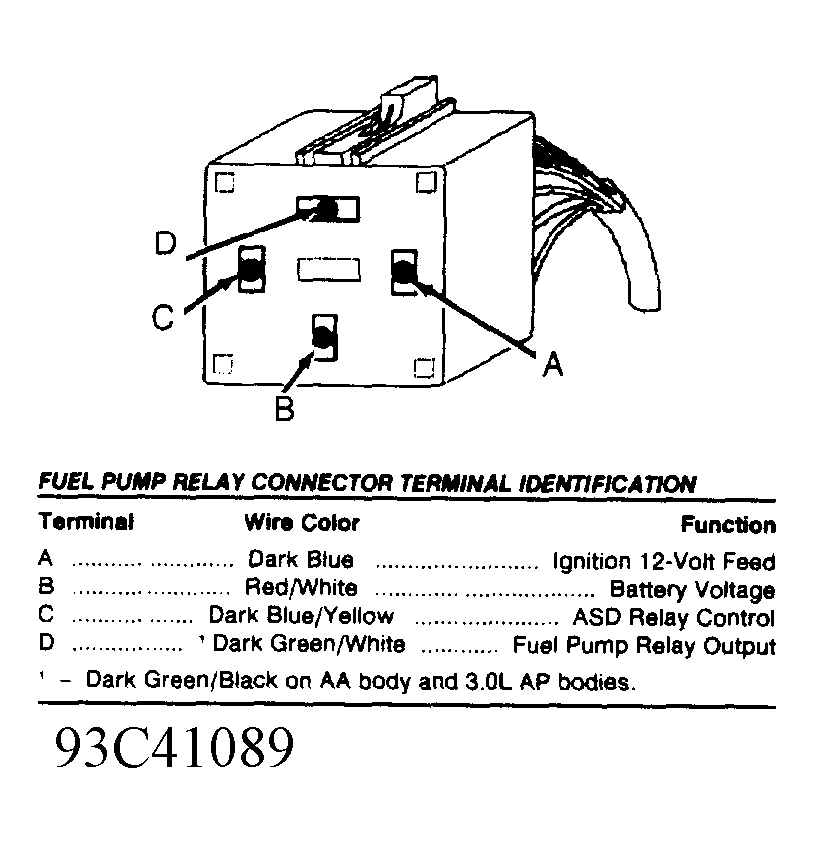

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal

Wire Color

Function

Dark Blue

Ignition 12-Volt Feed

Red/White

Battery Voltage

Dark Blue/Yellow

ASD Relay Control

⁽¹⁾ Dark Green/White

Fuel Pump Relay Output

⁽¹⁾	Dark Green/Black on AA body and AP bodies.

Fig 9: Fuel Pump Relay Connector Terminal ID (Except AC Body)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 10: Fuel Pump Relay Connector Terminal ID (AC Body)

Courtesy of CHRYSLER CORP.

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 11: Idle Air Control (IAC) Motor Connector Terminal ID

Courtesy of CHRYSLER CORP.

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Red/Yellow	Ignition Coil Driver No. 3
2	Black/Gray	Ignition Coil Driver No. 1
3	Dark Blue/Tan	Ignition Coil Driver No. 2
4	Dark Green/Orange	ASD Relay Output

Fig 12: Ignition Coil Connector Terminal ID

Courtesy of CHRYSLER CORP.

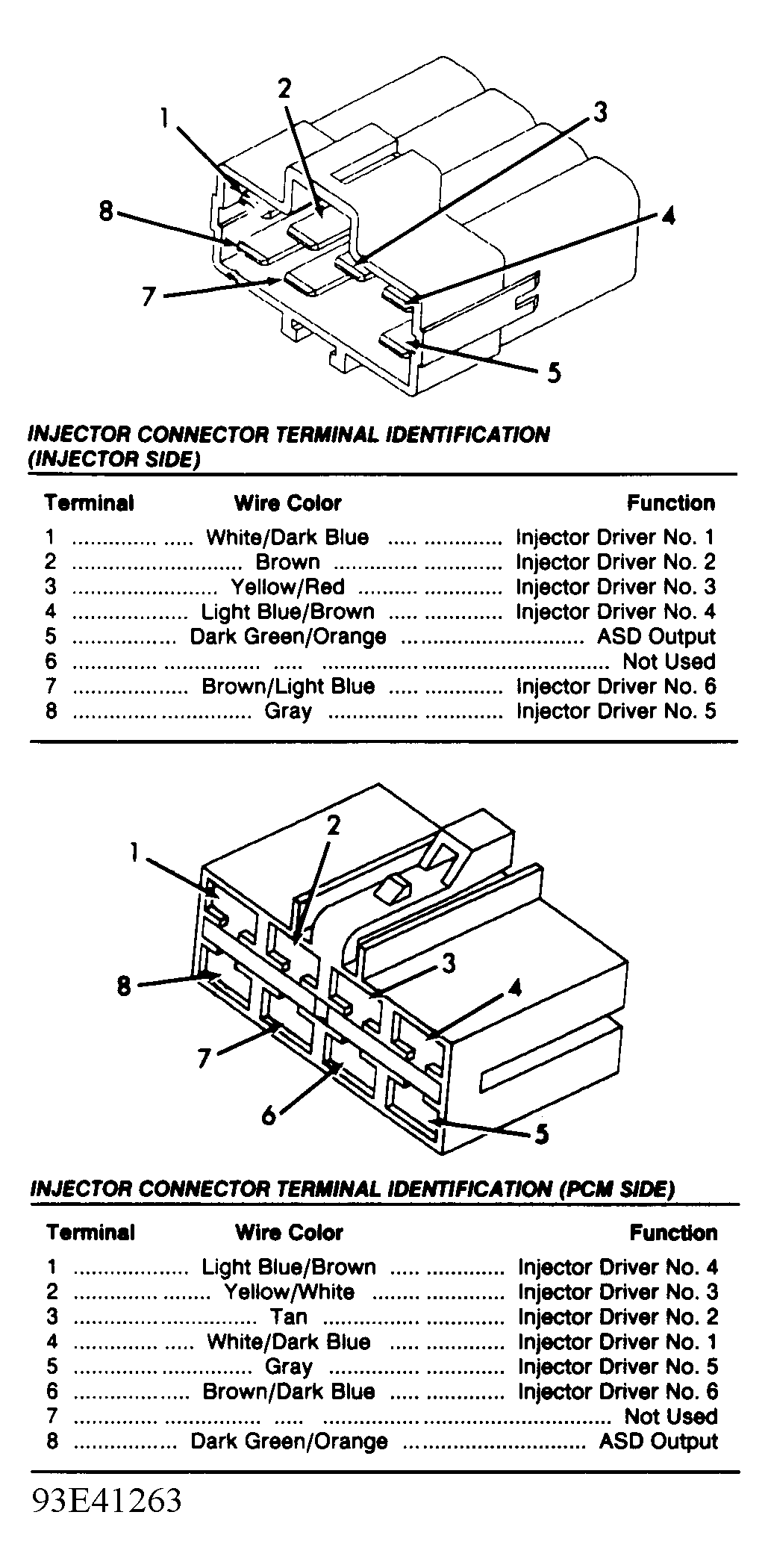

INJECTOR CONNECTOR TERMINAL IDENTIFICATION (INJECTOR SIDE)

Terminal	Wire Color	Function
1	White/Dark Blue	Injector Driver No. 1
2	Brown	Injector Driver No. 2
3	Yellow/Red	Injector Driver No. 3
4	Light Blue/Brown	Injector Driver No. 4
5	Dark Green/Orange	ASD Output
6	n/a	Not Used
7	Brown/Light Blue	Injector Driver No. 6
8	Gray	Injector Driver No. 5

INJECTOR CONNECTOR TERMINAL IDENTIFICATION (PCM SIDE)

Terminal	Wire Color	Function
1	Light Blue/Brown	Injector Driver No. 4
2	Yellow/White	Injector Driver No. 3
3	Tan	Injector Driver No. 2
4	White/Dark Blue	Injector Driver No. 1
5	Gray	Injector Driver No. 5
6	Brown/Dark Blue	Injector Driver No. 6
7	Not Used	Not Used
8	Dark Green/Orange	ASD Output

Fig 13: Injector Connector Terminal ID

Courtesy of CHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 14: Intake Air Temperature (IAT) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 15: Manifold Absolute Pressure (MAP) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

MANIFOLD TUNING VALVE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Violet/White	Control
2	Light Green/Black	Ignition 12-Volt Feed

Fig 16: Manifold Tuning Valve (MTV) Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

OXYGEN SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black	Heater Ground
4	Dark Green/Black	Heater Feed

Fig 17: Oxygen Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue/White

Ignition 12-Volt Feed

Gray

Battery Voltage

Dark Blue/Pink

Control

Light Green

Output

⁽¹⁾	White on 4-cylinder AC body.

Fig 18: Radiator Fan Relay Connector Terminal ID

Courtesy of CHRYSLER CORP.

TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Not Used	Not Used
2	Dark Blue	Ignition 12-Volt Feed
3	Orange/Light Green	Control

Fig 19: Torque Converter Clutch Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 20: Throttle Position Sensor (TPS) Connector Terminal ID

Courtesy of CHRYSLER CORP.

WASTEGATE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Ignition 12-Volt Feed
2	Light Green/Black	Control

Fig 21: Wastegate Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

Fig 22: Powertrain Control Module (PCM) Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
