Torque Specifications

Engine Mount Bracket Attaching Bolts 30 ft-lbs
Fuel Pump Module Locknut 40-41 ft-lbs
Oil Drain Plug 25 ft-lbs
Radiator Isolator Mounting Bracket 6 ft-lbs
Cylinder Head Bolt Torque and Pattern:

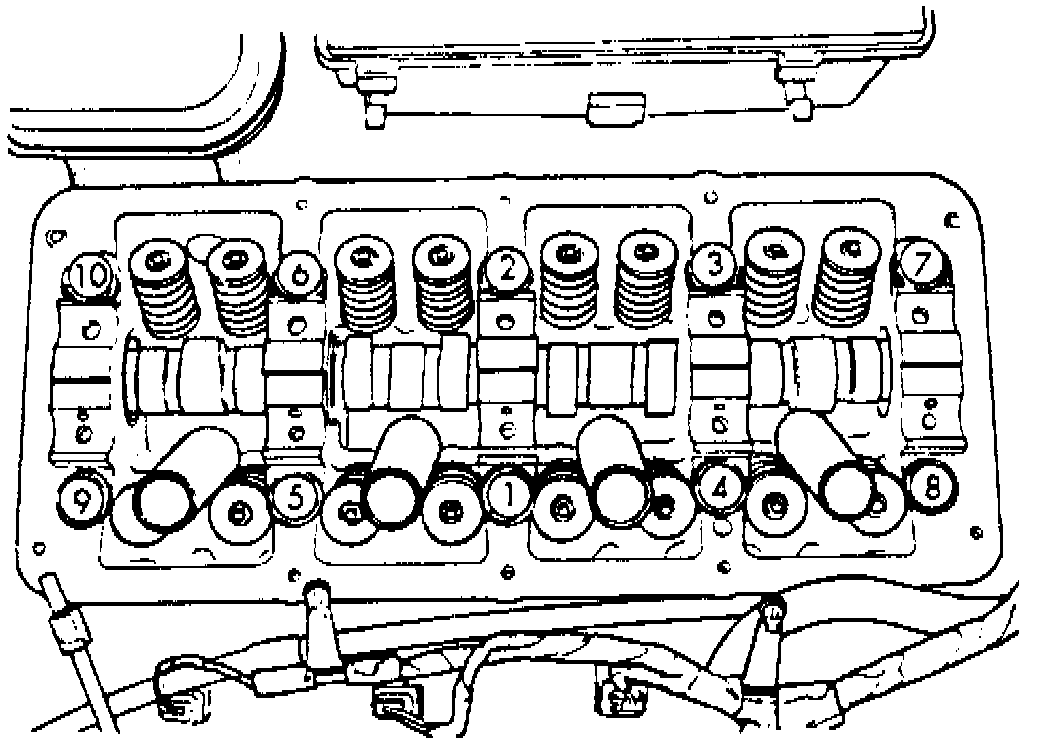

Fig. 14 Cylinder Head Bolt Tightening Sequence.:

1. Install short bolts in positions 7, 8, 9 and 10.
2. Torque cylinder head bolts 25 ft-lbs
3. Torque cylinder head bolts 50 ft-lbs
4. Loosen bolts, then torque 50 ft-lbs
5. Tighten bolts an additional 1/4 turn without using a torque wrench.
