Main Relay (Computer/Fuel System): Locations

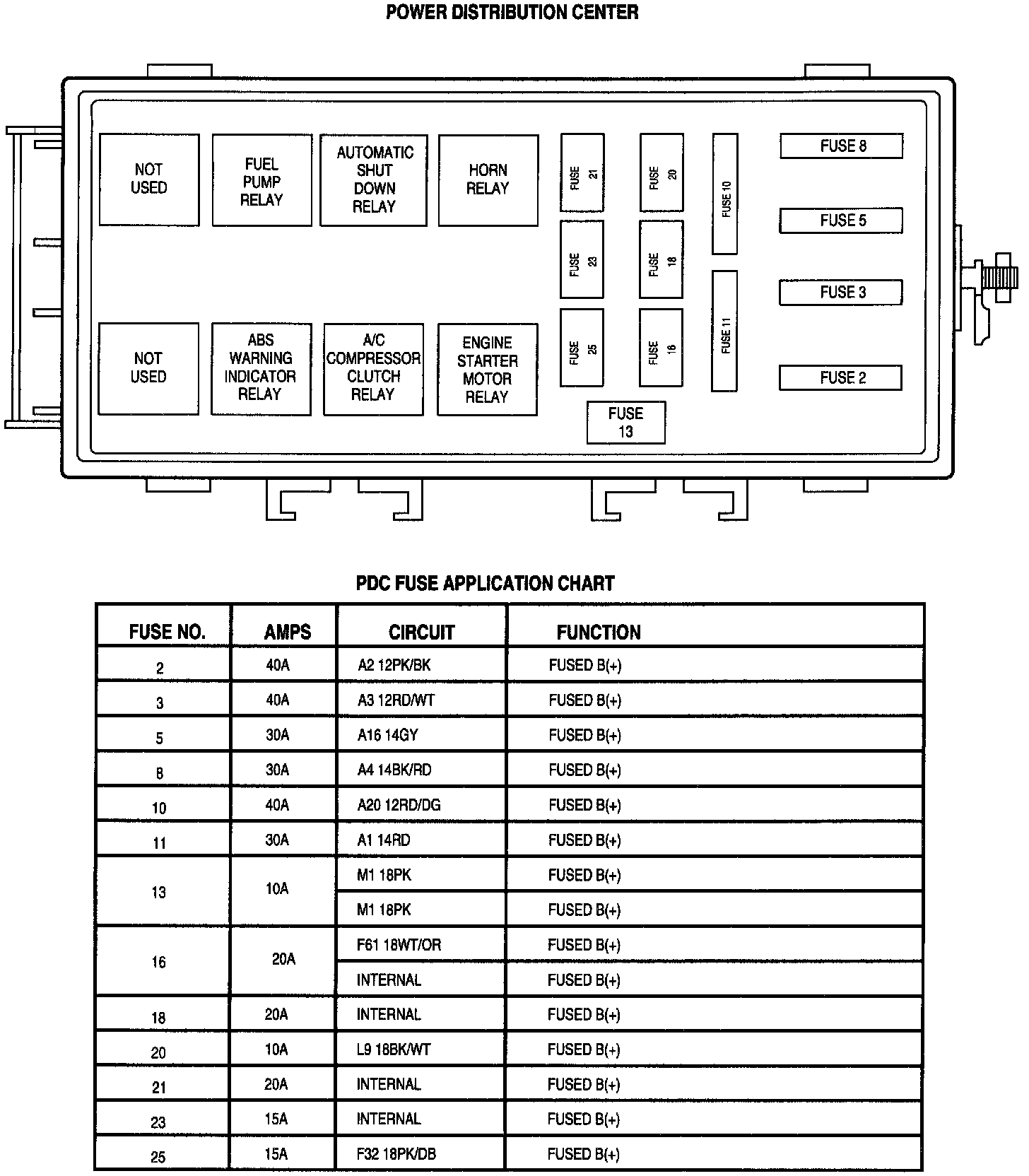

Power Distribution Center (PDC):




Power Distribution Center System -- Sheet 8w-10-2:

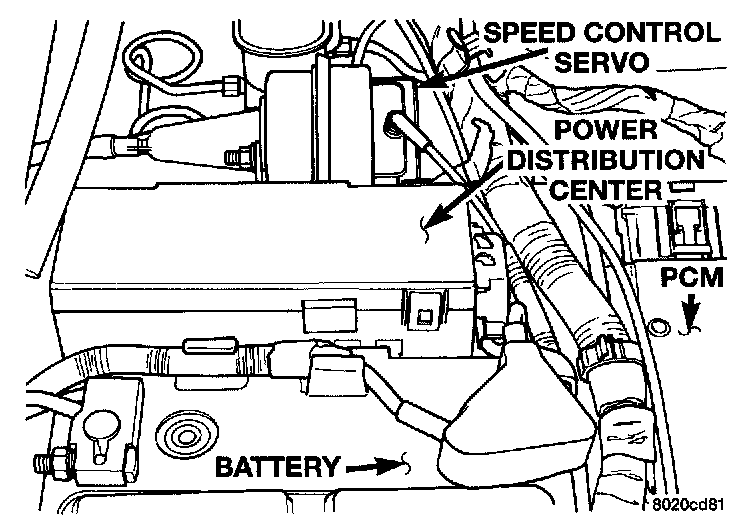

The ASD relay is located in the PDC.
