Chime Sounds With Driver Seat Belt Fastened

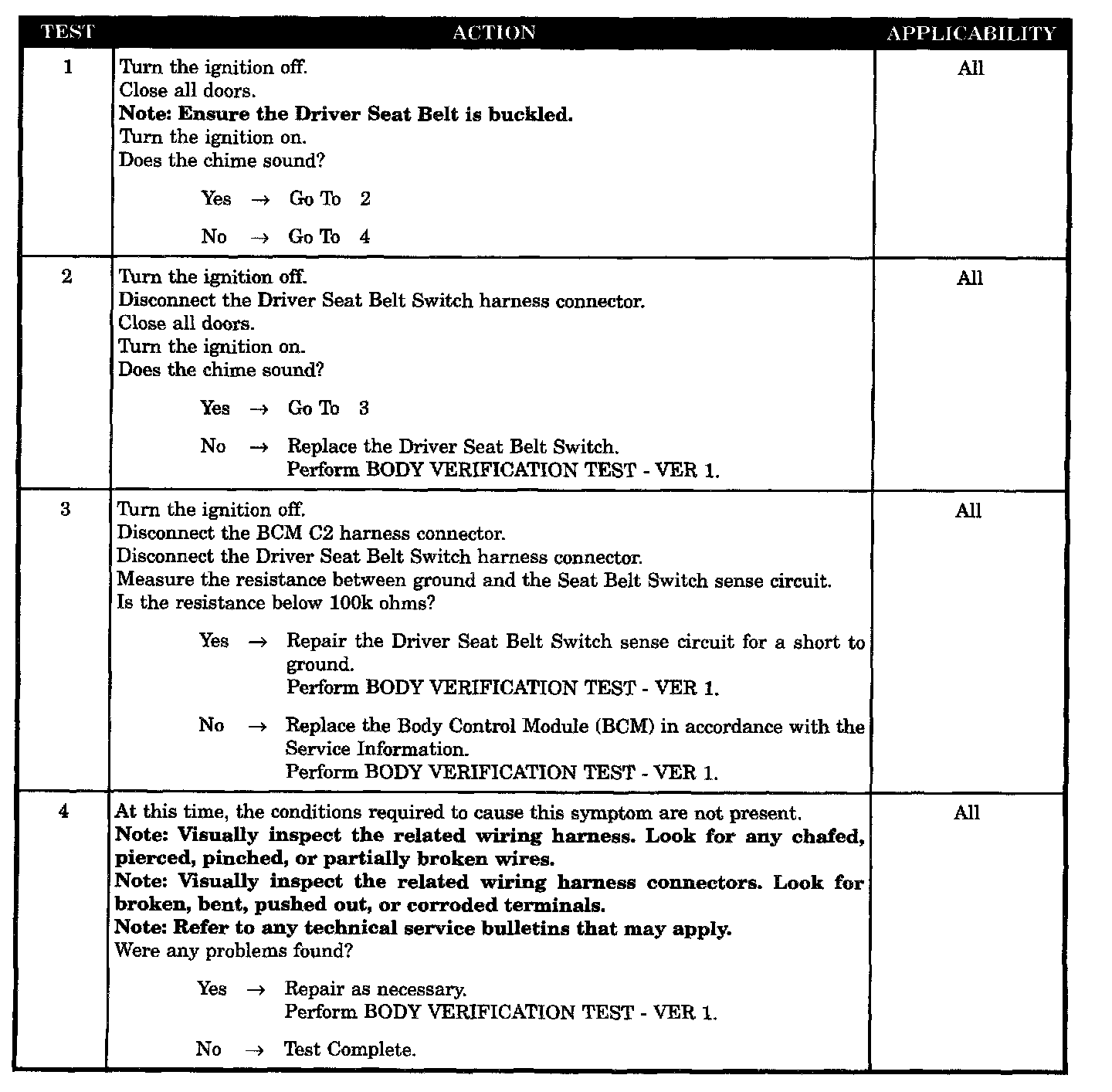

Test 1 - 4:




SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Body Control Module
- Seat Belt Switch sense circuit shorted to ground
- Seat Belt Switch shorted to ground
- Intermittent problem
