Ford Motor Co.
NOTE:
Before attempting removal of lock cylinder place shift lever in "PARK" position on Auto. Trans. or "REVERSE" position on Synchro-mesh with Switch in "RUN" position.

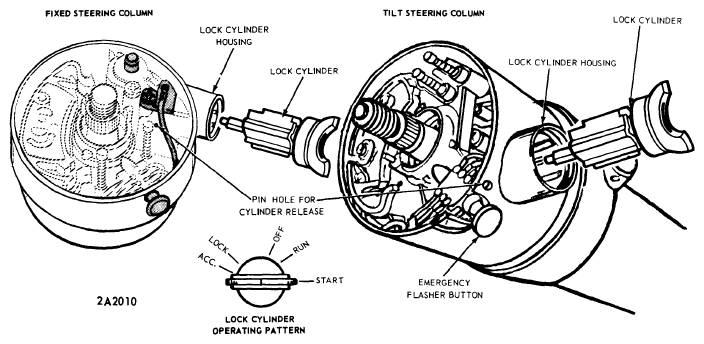

On fixed column units insert a wire pin in lock cylinder hole (see illustration) located inside column, half way down lock cylinder housing. On tilt column units insert a wire pin in hole located on the outside of flange casting (see illustration) next to emergency flasher button.
