Chart 7: Map & BARO Output Check

Fig 1: Chart 7: MAP & BARO Output Check Flow Chart
G249

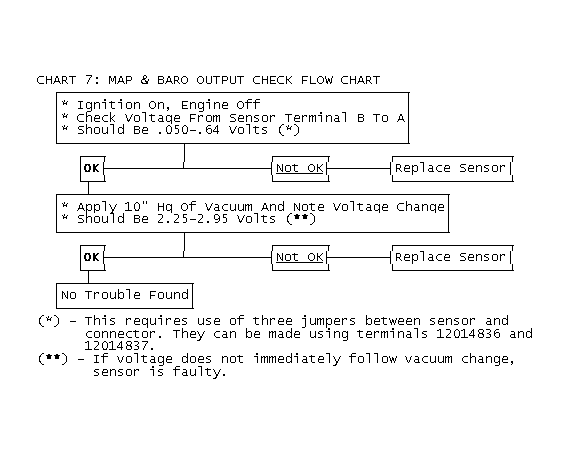

Fig 2: Chart 7: MAP & BARO Output Check Flow Chart
GB0045593
