Electronic Control Module (ECM)

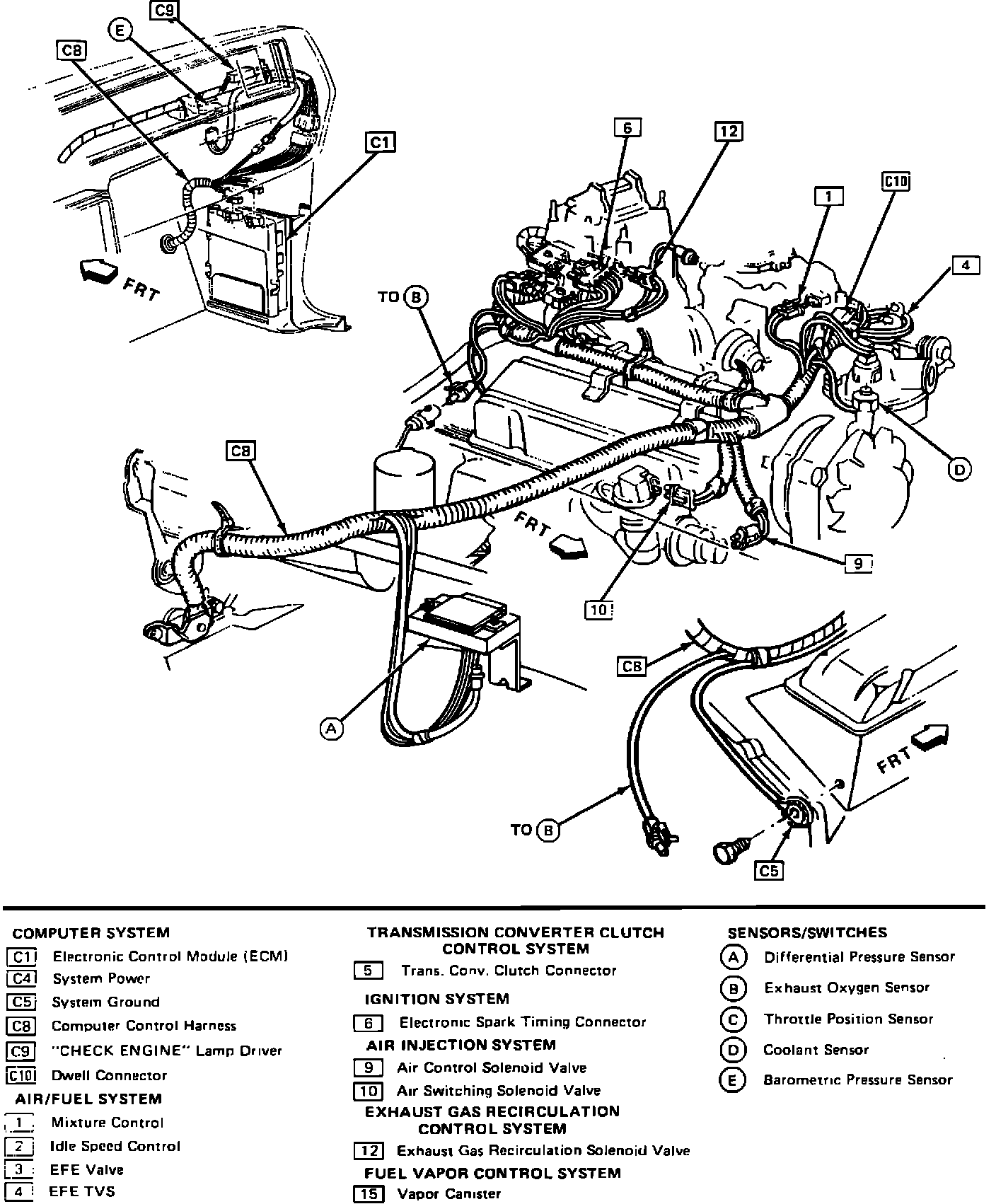

ECM Wiring Harness (Part 1 Of 2):

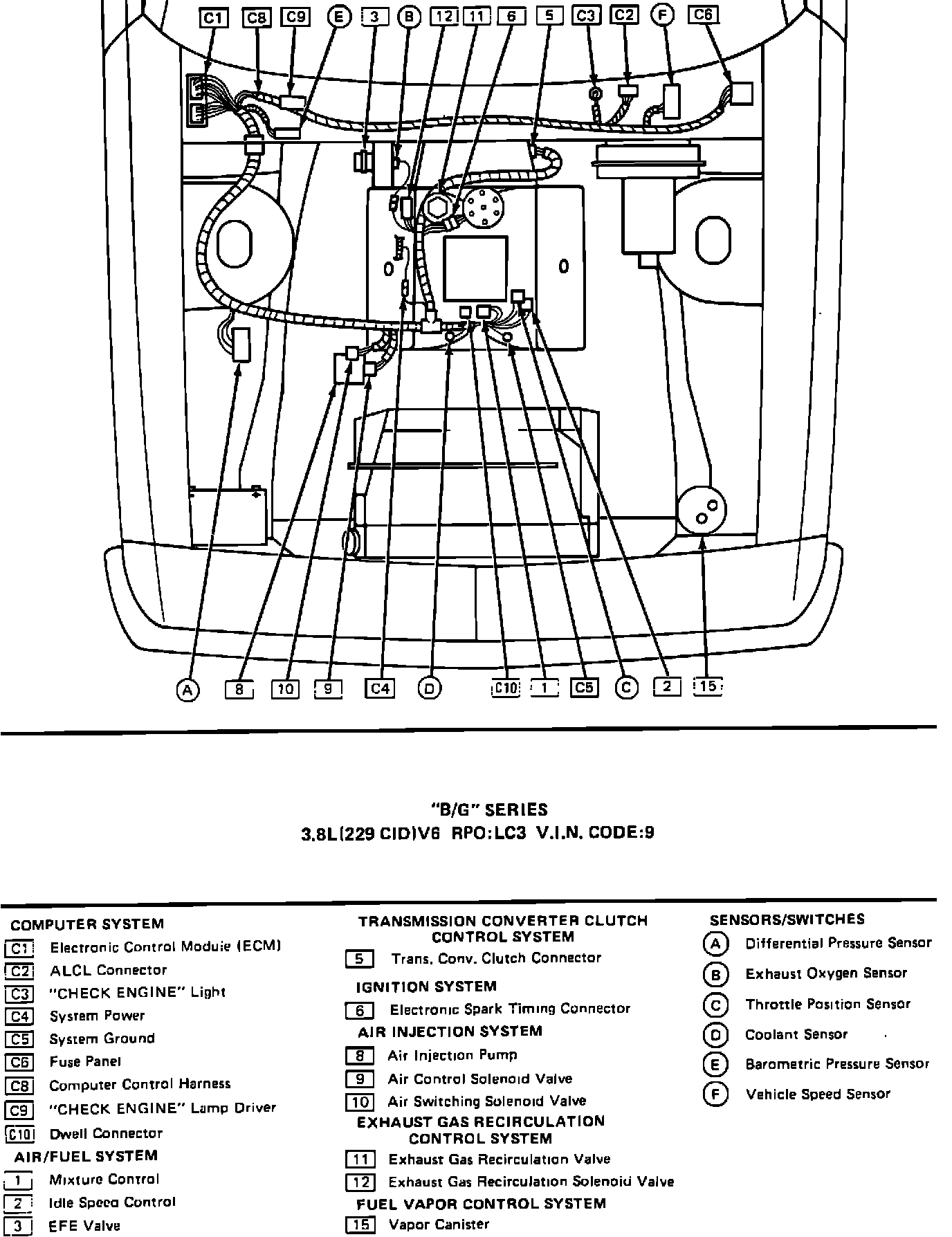

ECM Wiring Harness (Part 2 Of 2):

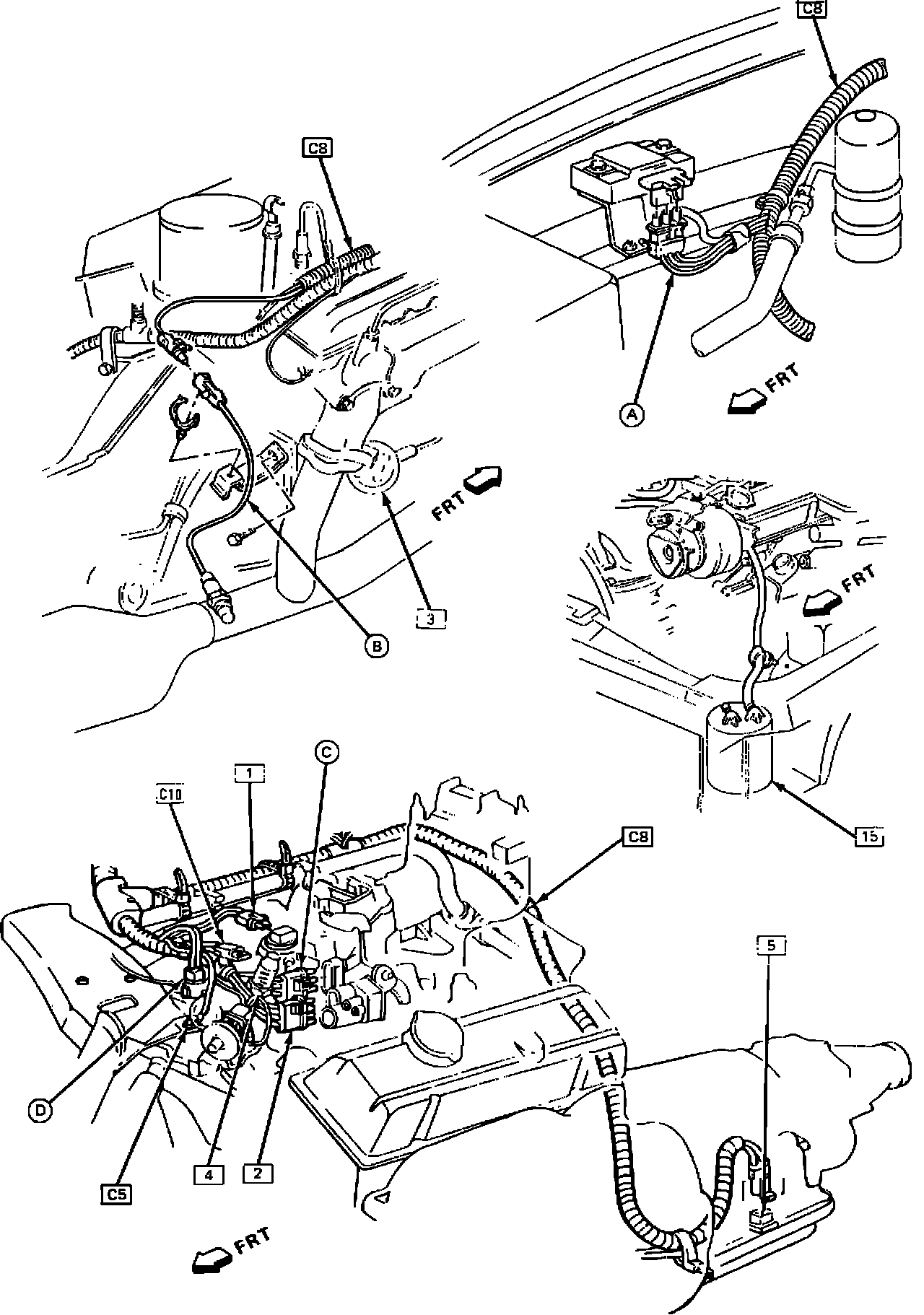

Underhood Component Locations.:

RH Shroud Behind Kick Panel

Applicable to: 1984 V6-229/3.8L Engine
