Firebird V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Detonation Sensor
>>
Fuel Injected
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Injected

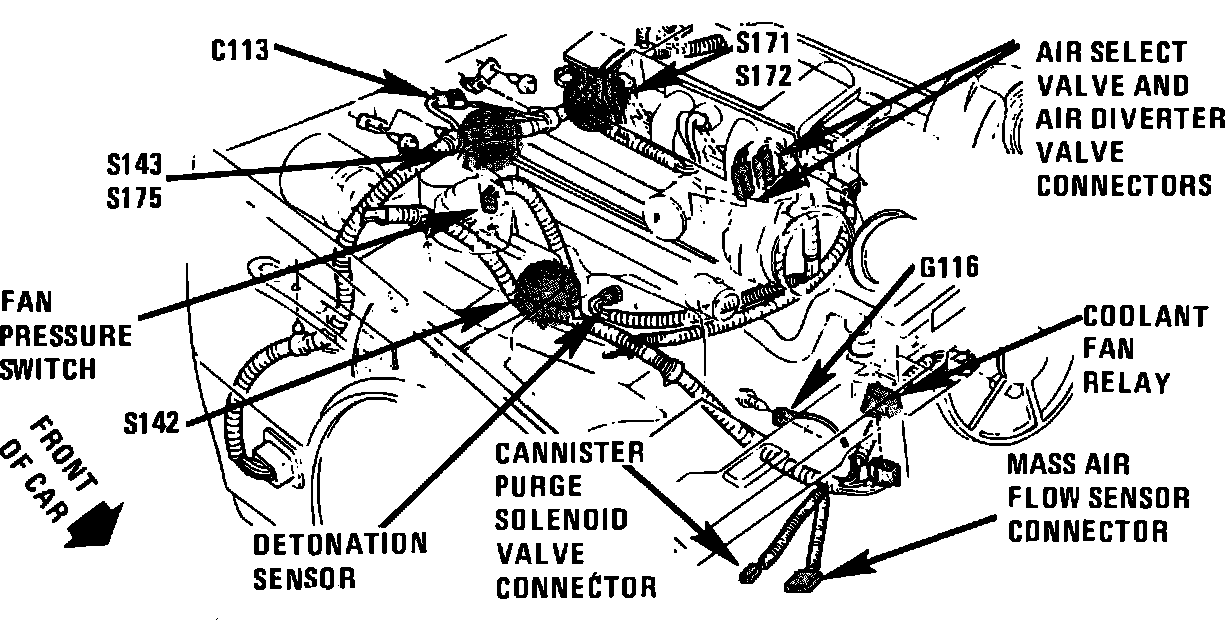

V8-305 Engine Compartment:
Lower RH Side Of Engine, Ahead Of Starter Solenoid
Applicable to: 1984-85
