Pontiac
>>
1985
>>
Firebird V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Electronic Spark Control Module
>>
Carbureted
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Carbureted

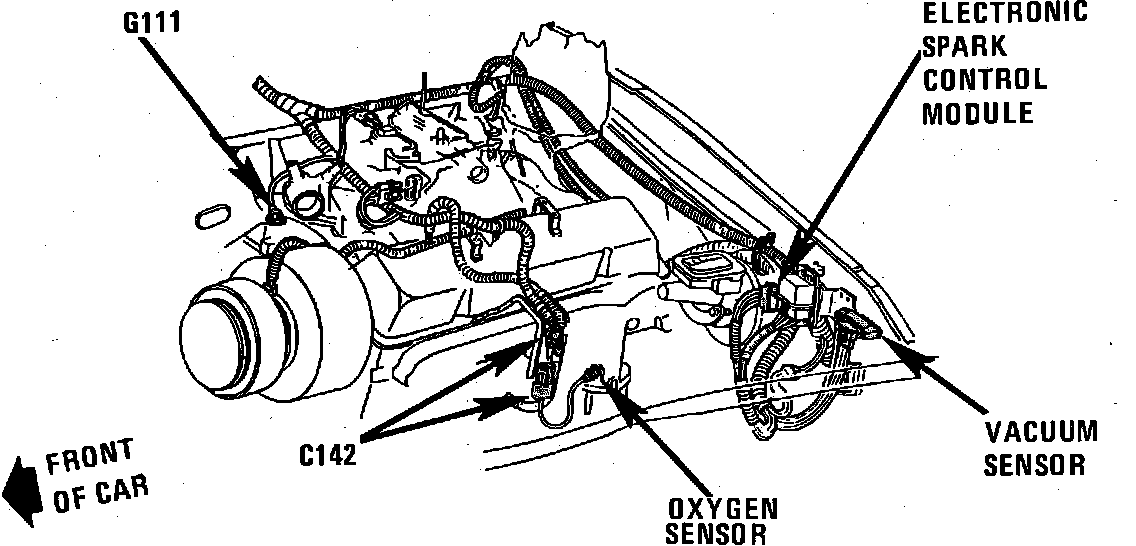

LH Side Of V6-173 Engine:

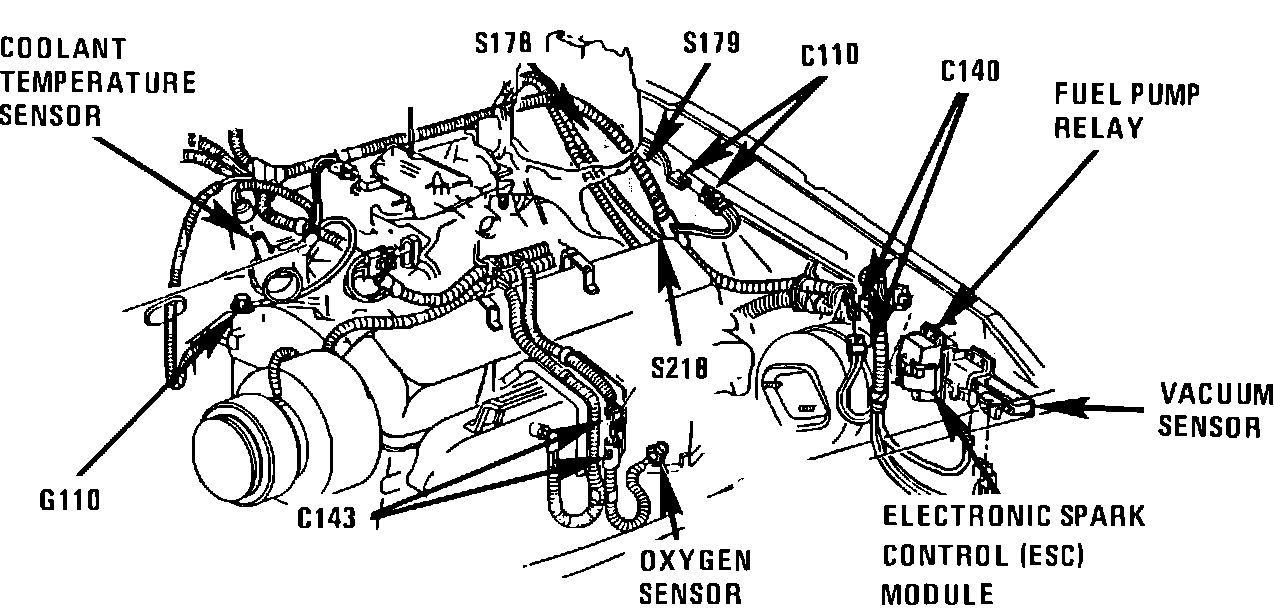

V8-305 Engine Compartment:
LH Front Of Dash, Near Brake Master Cylinder
Applicable to: 1984-85
