System Specifications

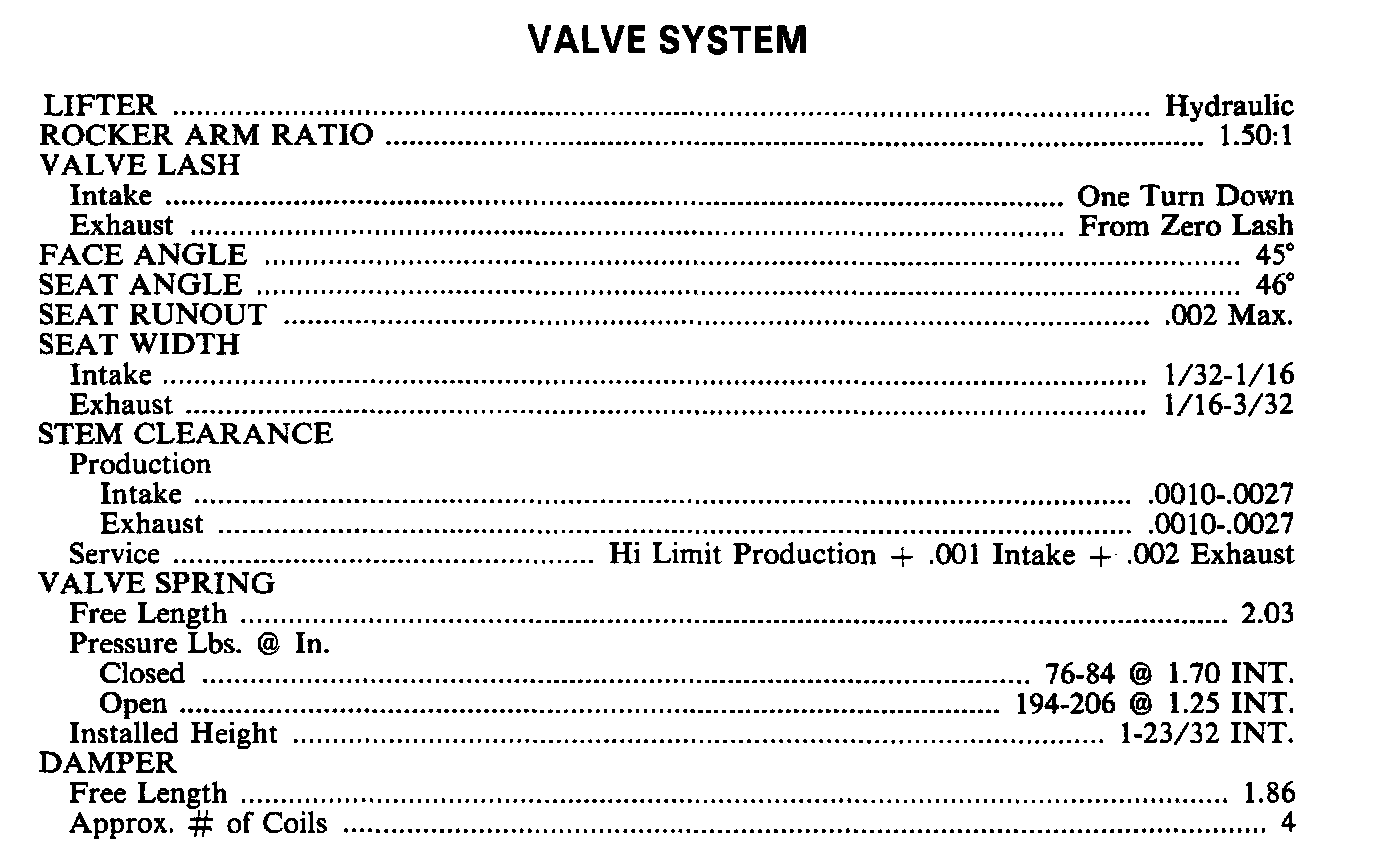

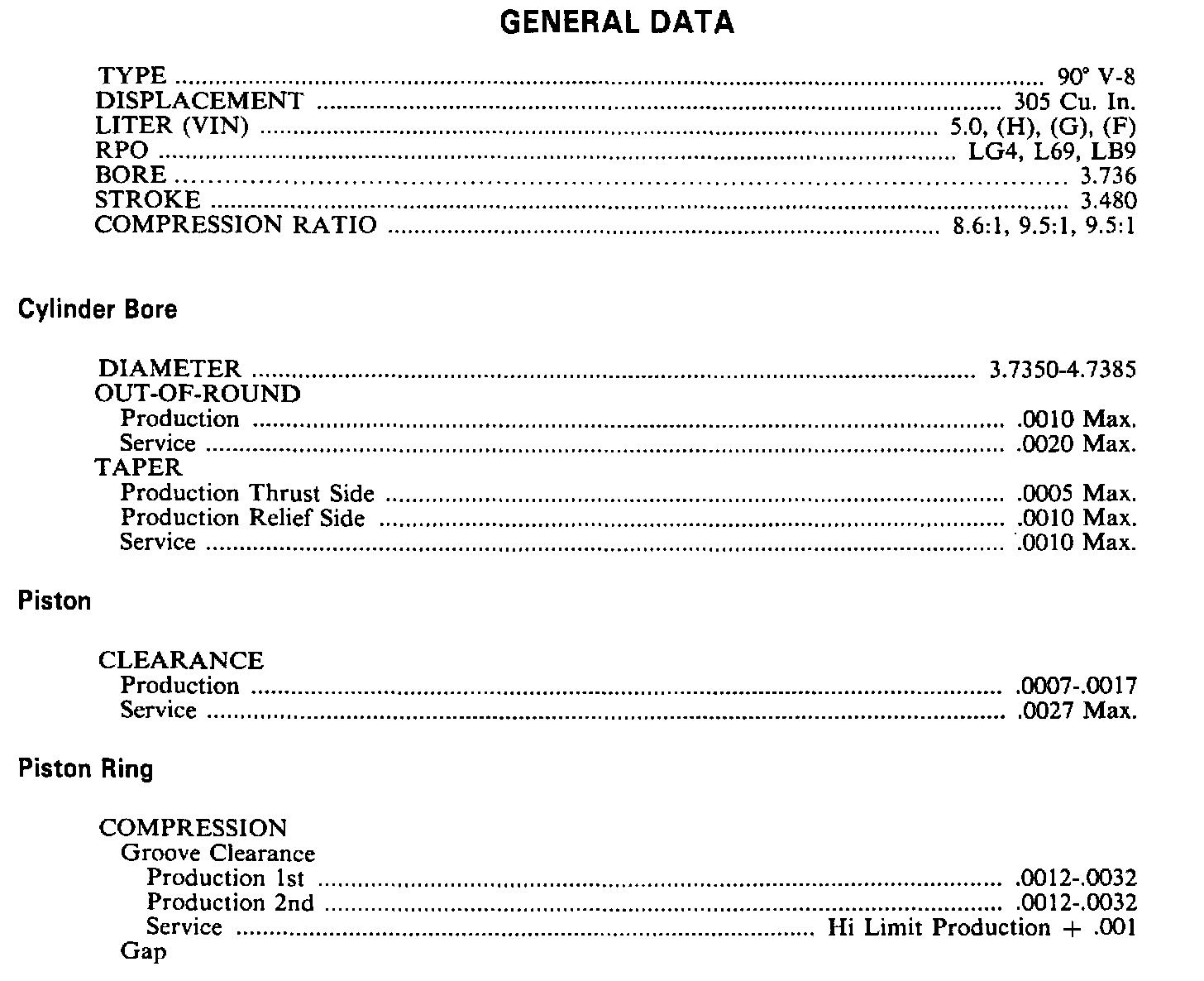

Engine Specifications:

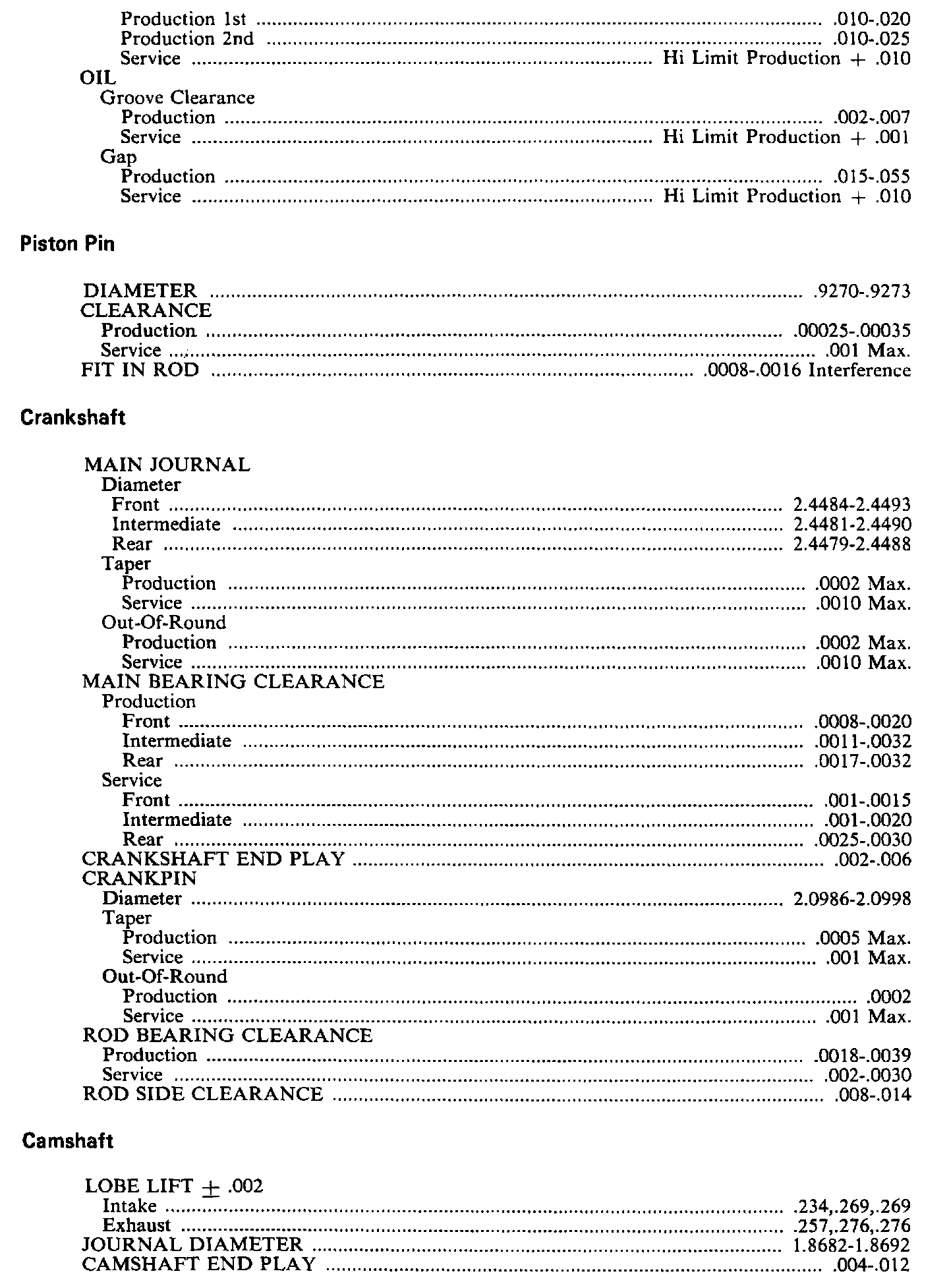

Continued Engine Specifications:





Continued Engine Specifications:

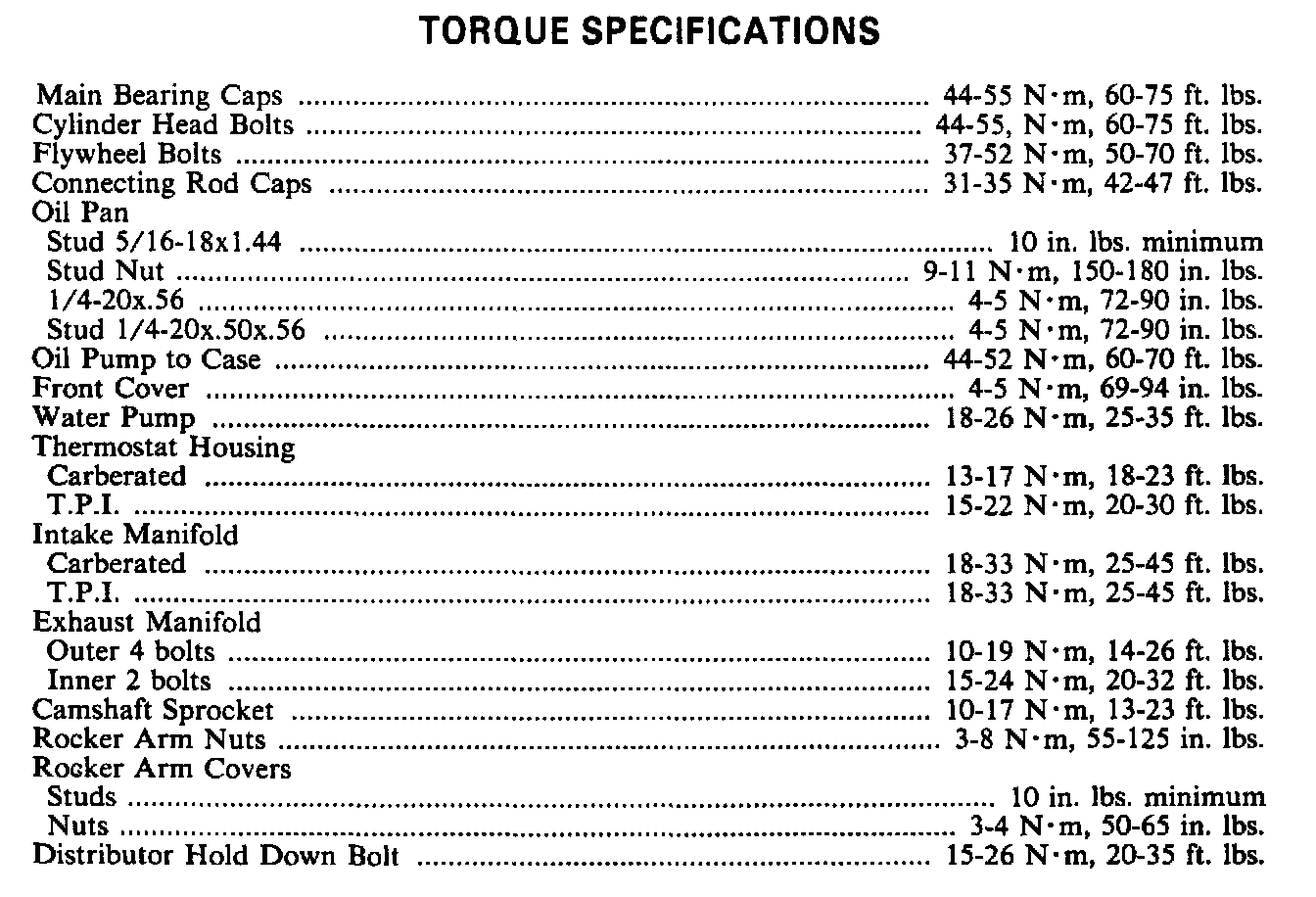

Torque Specifications:







Intake Manifold Sequence (Carbureted):





Intake Manifold Sequence (PFI):





Cylinder Head Sequence:
