ECM Power Harness

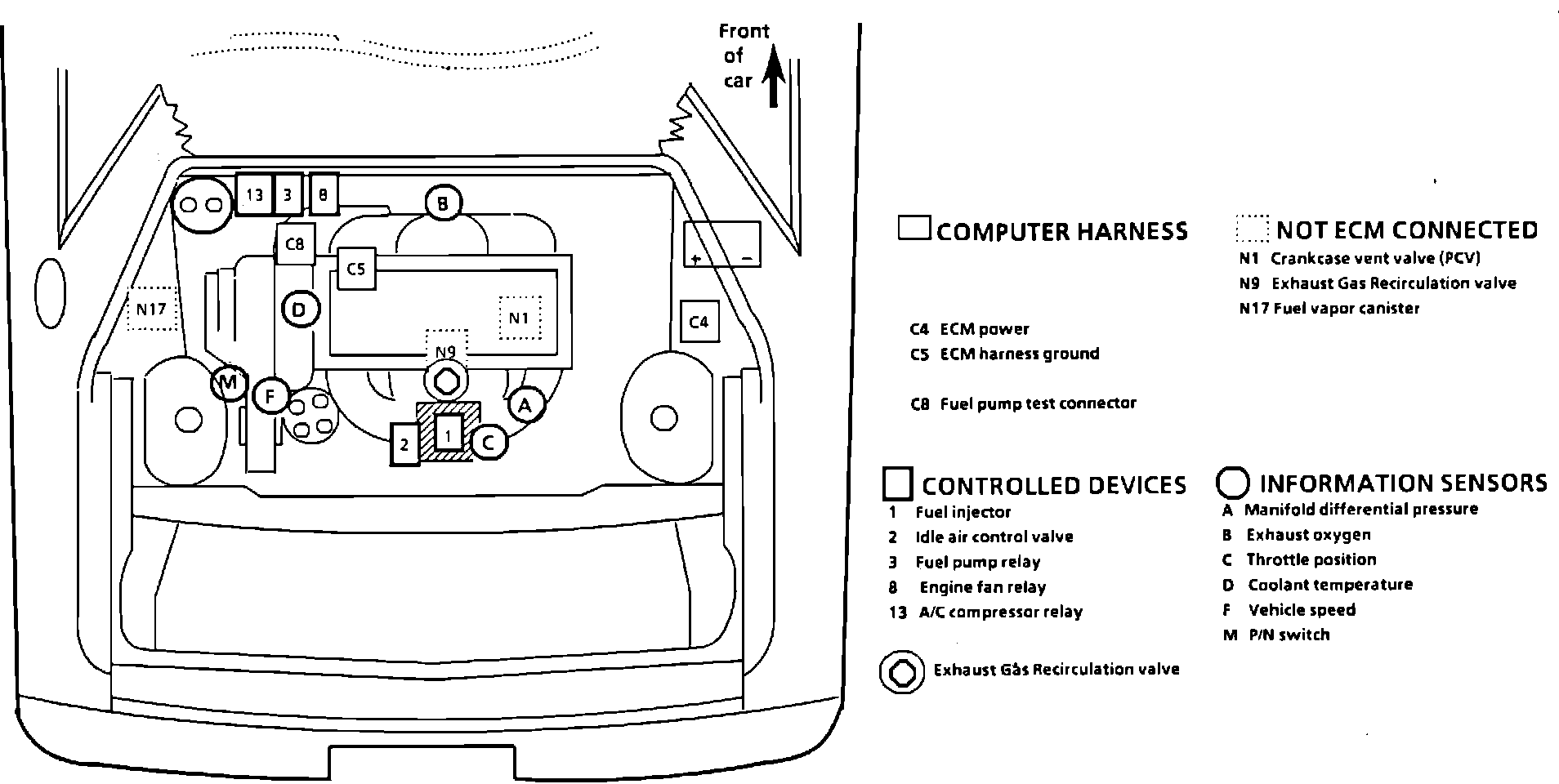

Engine Compartment Component Locations.:
On LH Fender Well
Applicable to: 1986 4-150/2.5L
