Power Steering Pressure Switch: Locations

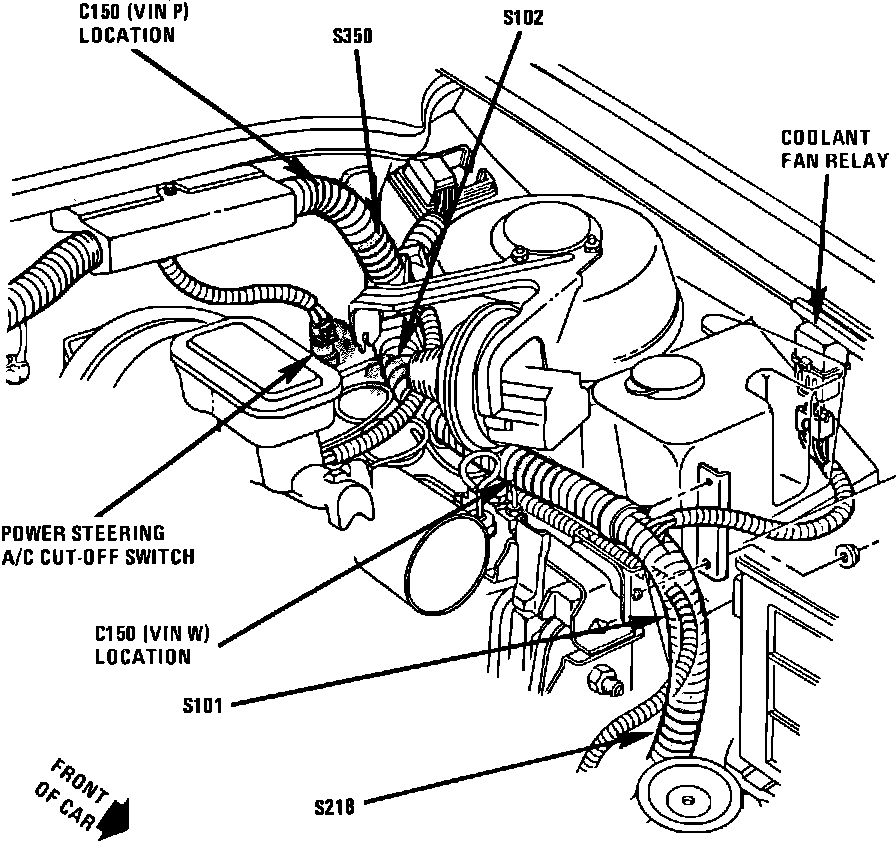

LH Side Of Engine Compartment.:




LH Front Of Dash Above Master Cylinder

Applicable to: 1986 Cavalier, Firenza & Skyhawk With V6-173/2.8L, VIN W (4-121/2.0L, VIN P Similar)
