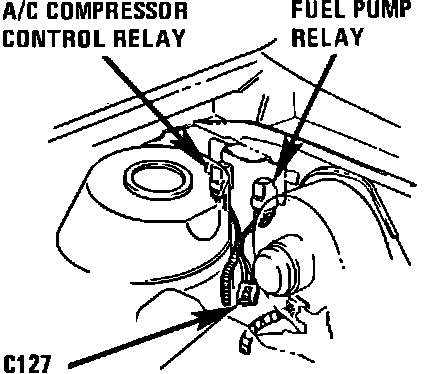

A/C Compressor Control Relay
RH Front Of Dash.:
Upper RH Corner Of Dash, On Bracket
Applicable to: 4-151, VIN R Engine
