Engine Specifications

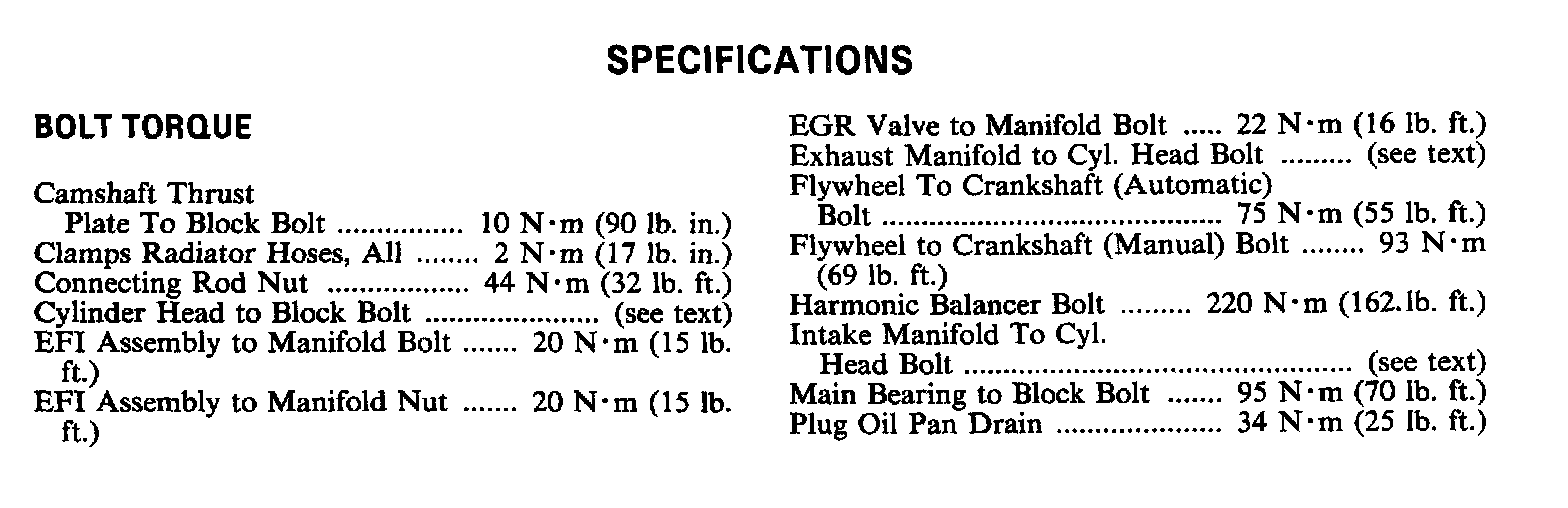

Torque Specifications:

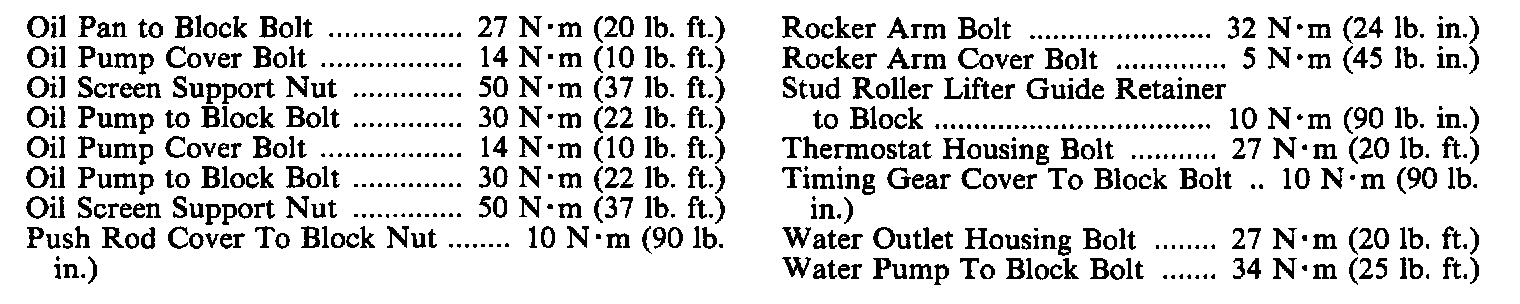

Continued Torque Specifications:

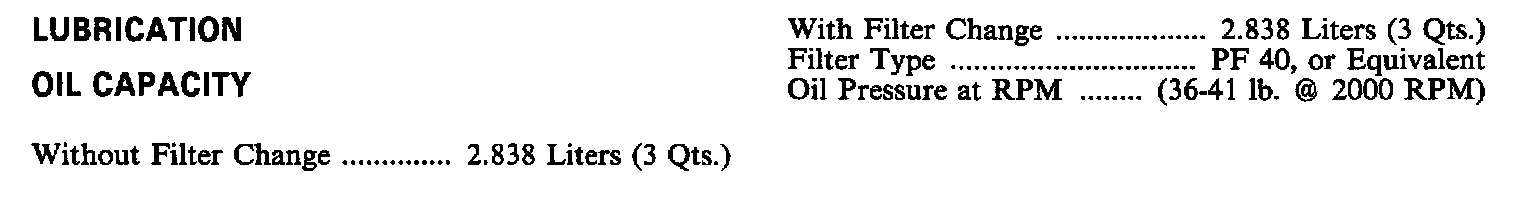

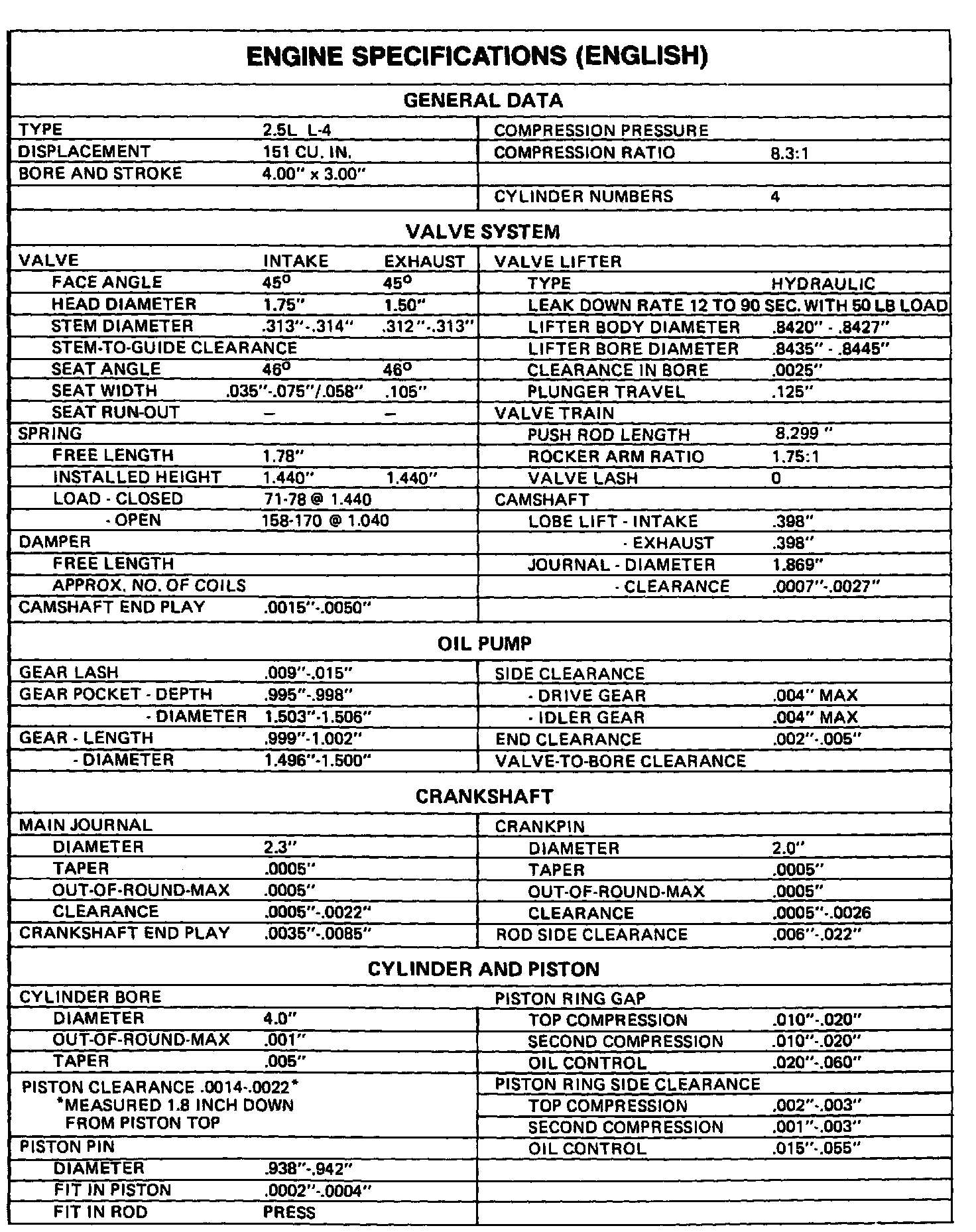

Engine Specifications:




Continued Engine Specifications:

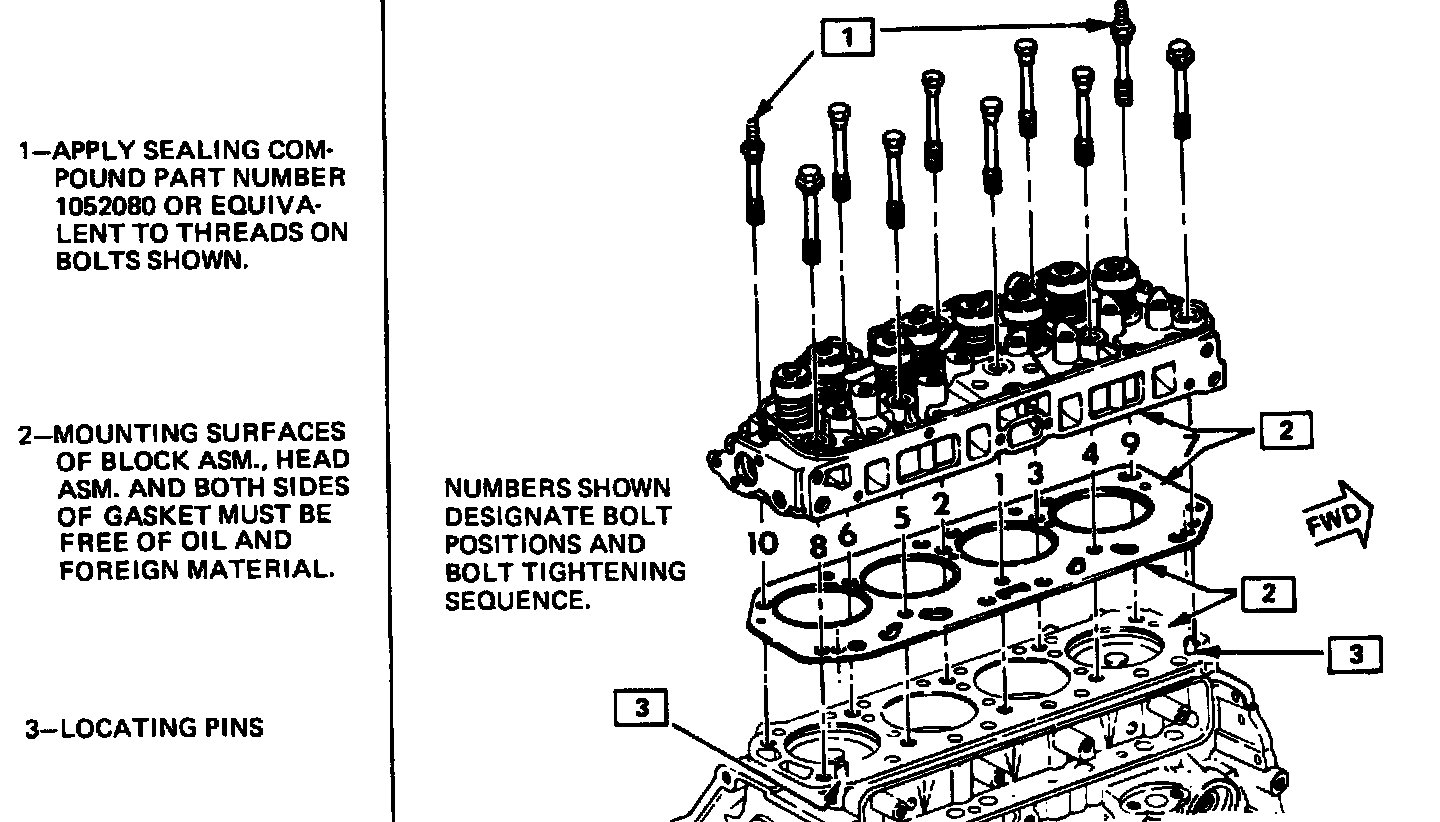

Cylinder Head Sequence:
