Wiper Control Module: Service and Repair

Wiper Cover Replacement

Remove:
1. Cover screws
2. Wiper cover

Install:
1. New wiper cover
2. Cover screws

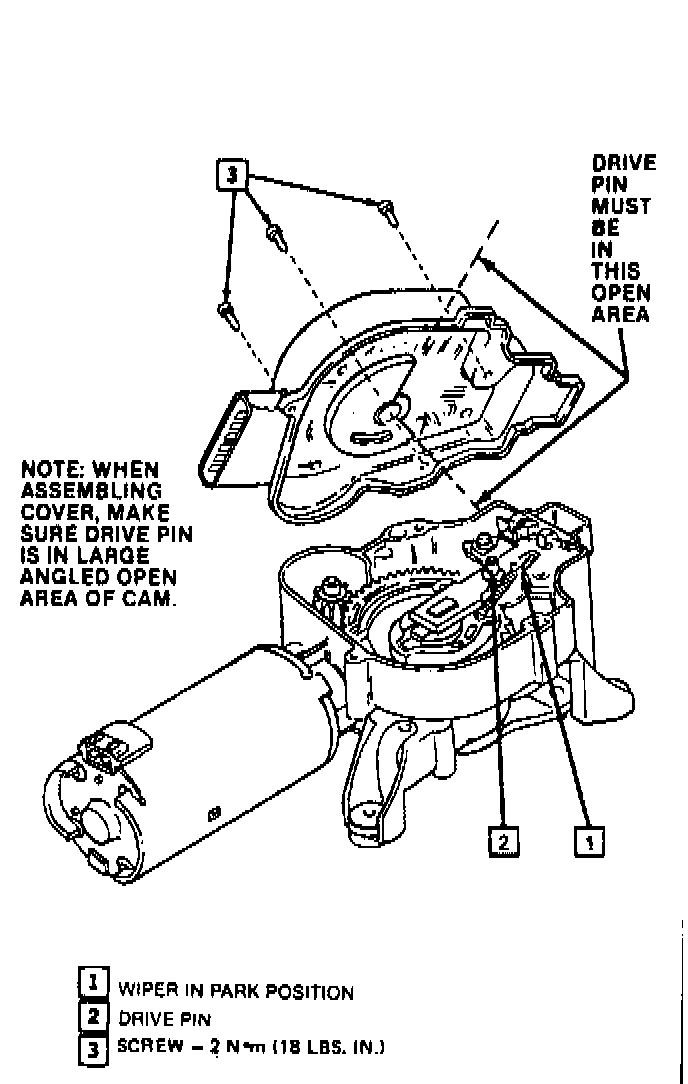

Note: Always install cover assembly with wiper in park position and with cam in position shown in image, so as not to damage cam on drive pawl.
