System Specifications

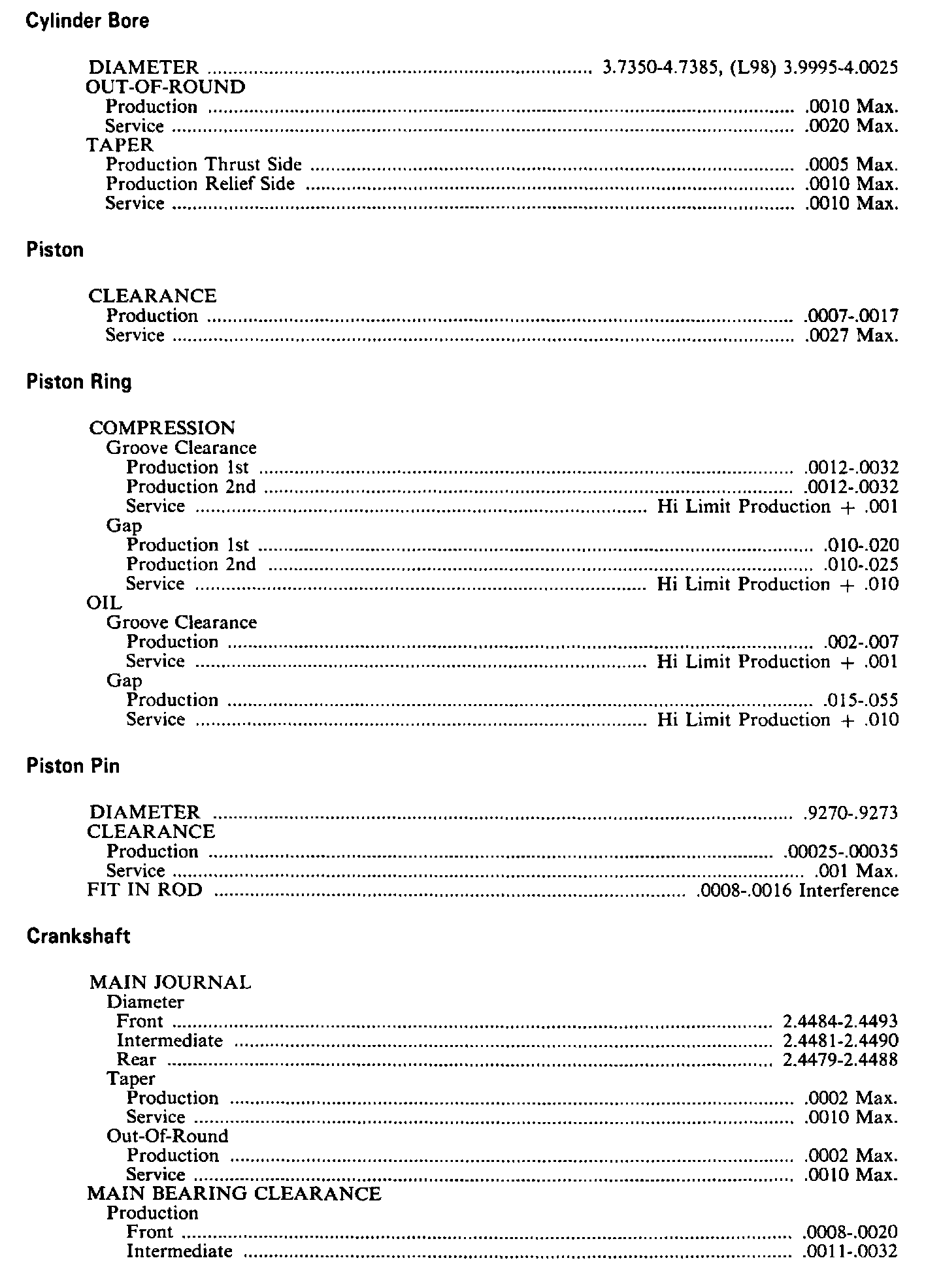

Engine Specifications:

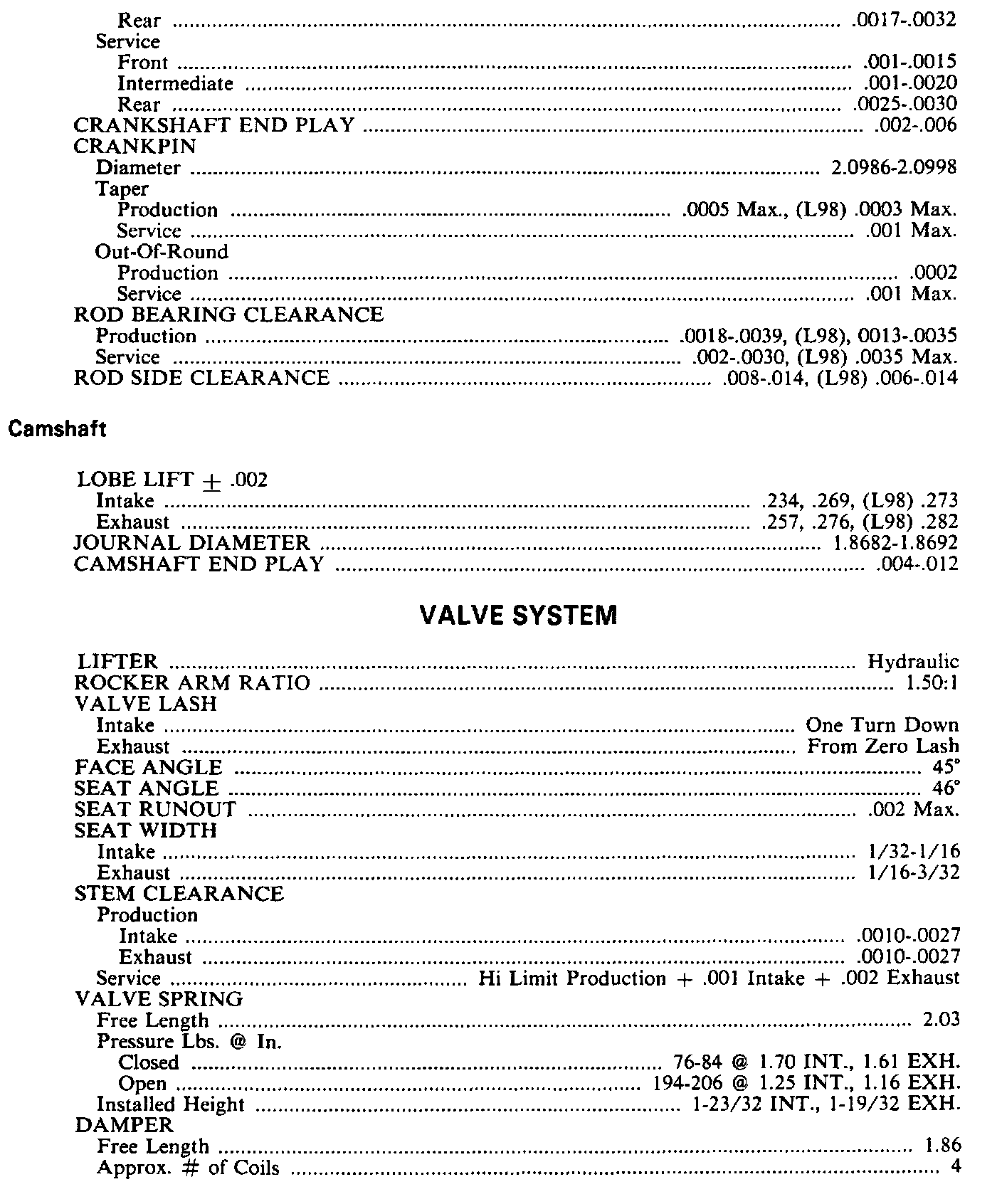

Continued Engine Specifications:




Continued Engine Specifications:

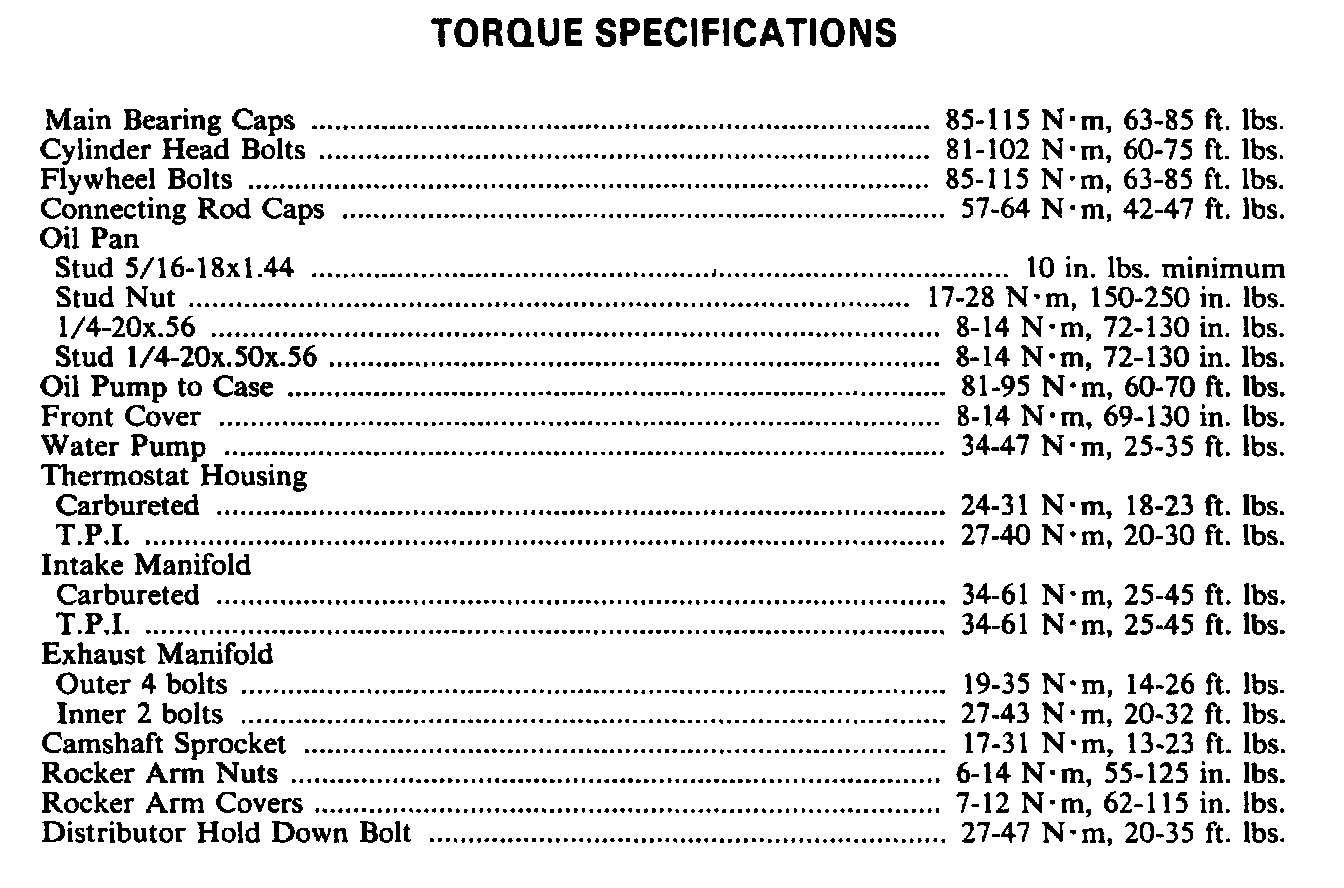

Torque Specifications:






Intake Manifold Sequence (Carbureted):





Intake Manifold Sequence (PFI):





Cylinder Head Sequence:
