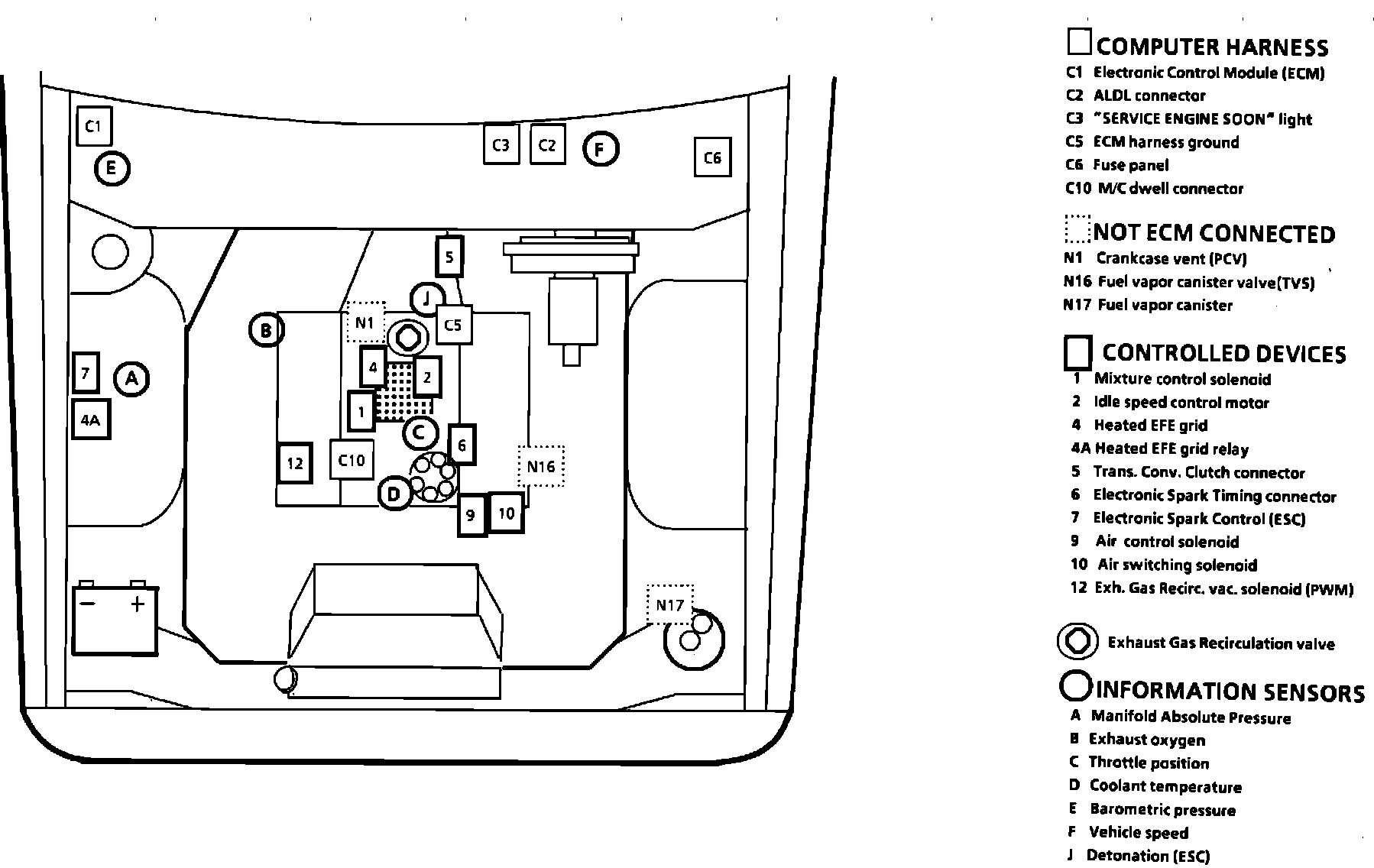

Fuse Panel
Under Dash & Underhood Components.:
Under LH Corner Of I/P
Applicable to: 1987 V6-231/3.8L VIN A
