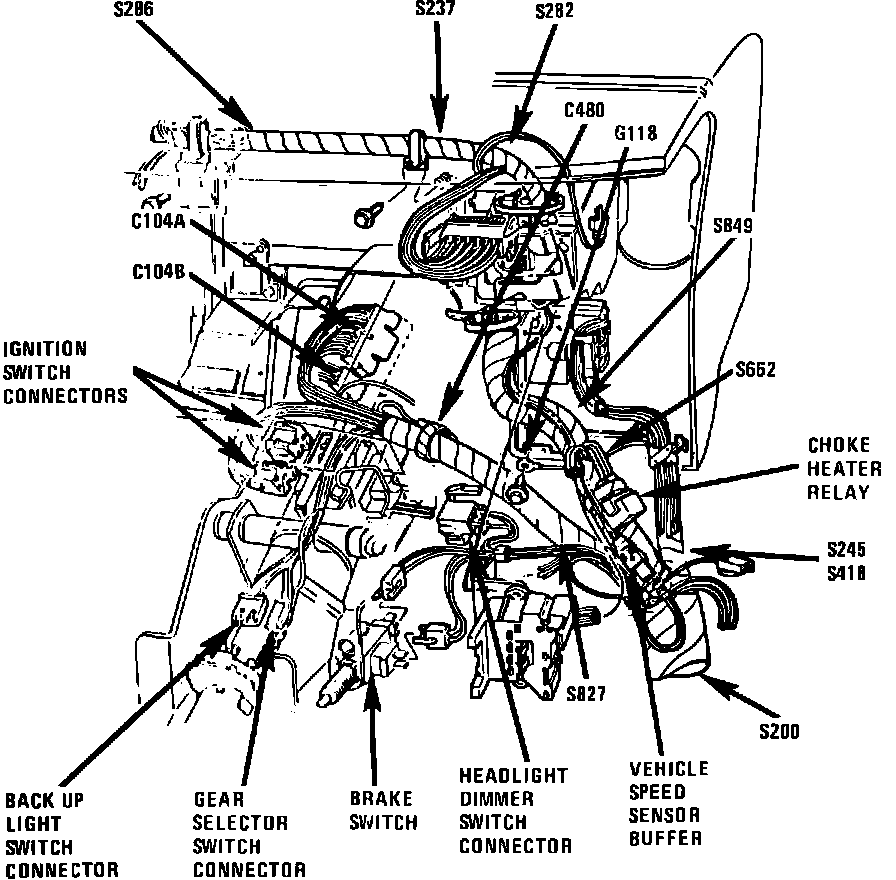

Vehicle Speed Sensor Signal Buffer: Locations

Behind LH Side Of I/P.:




Taped To Harness, Behind LH Side Of I/P

Applicable to: 1987 Grand Prix
