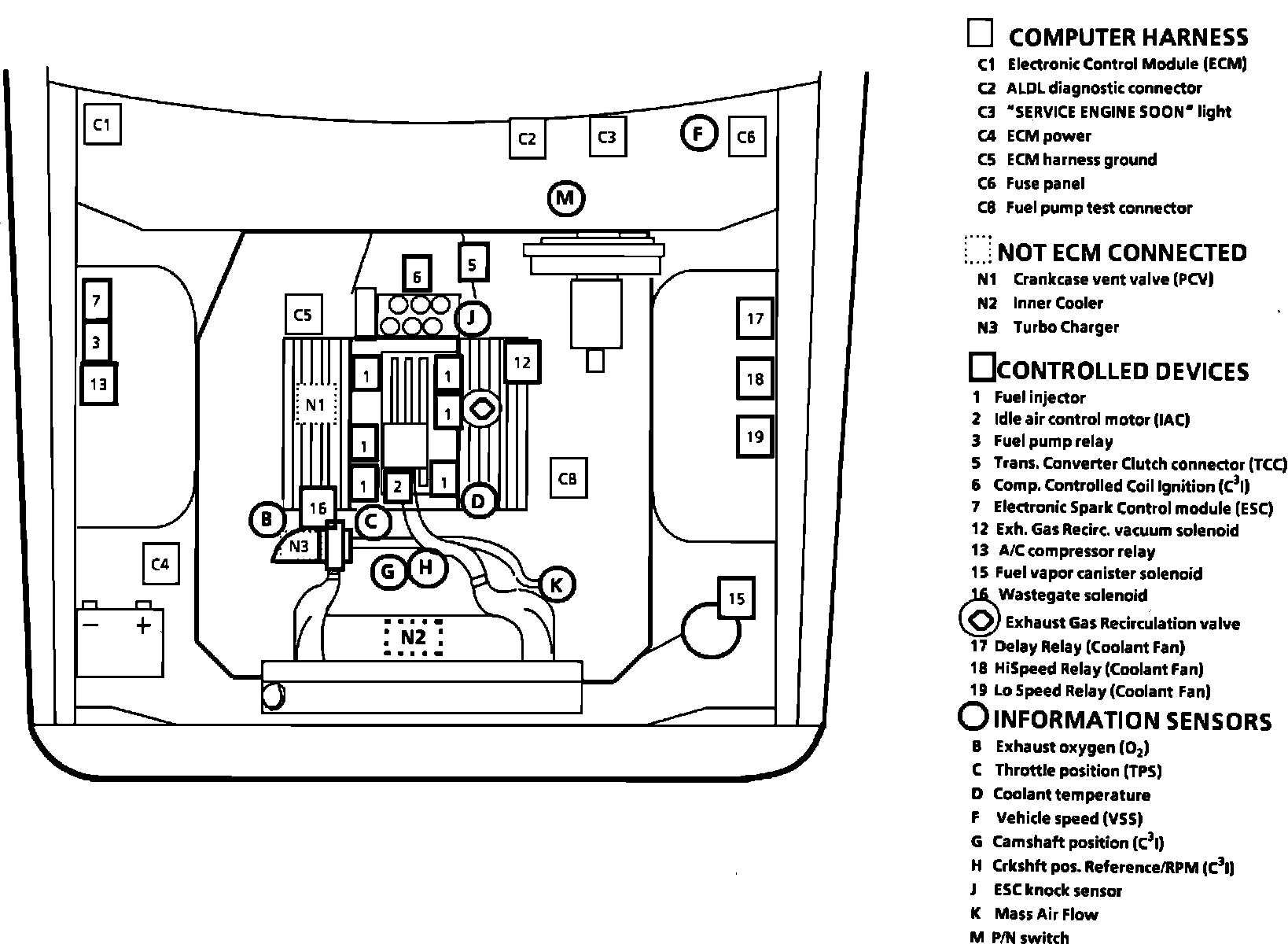

Underhood View
Under Dash & Underhood Components.:
On Top Of RH Wheelhouse
Applicable to: 1987 V6-231/3.8L VIN 7
