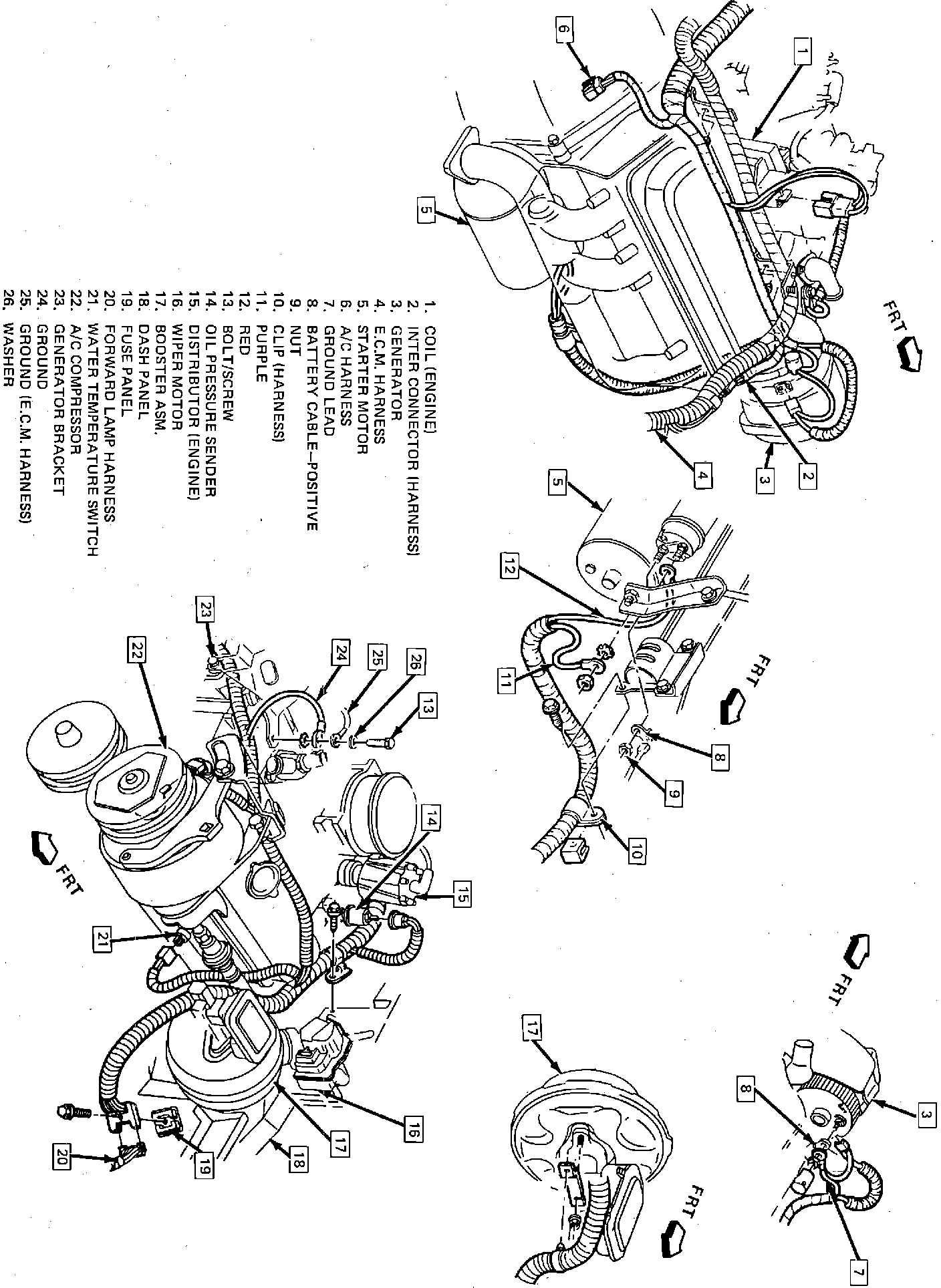

ECM Wiring Harness
Engine Wiring.:
RH Side Of Engine
Applicable to: 1987 V6-262/4.3L, Caballero, El Camino, Grand Prix & Monte Carlo
