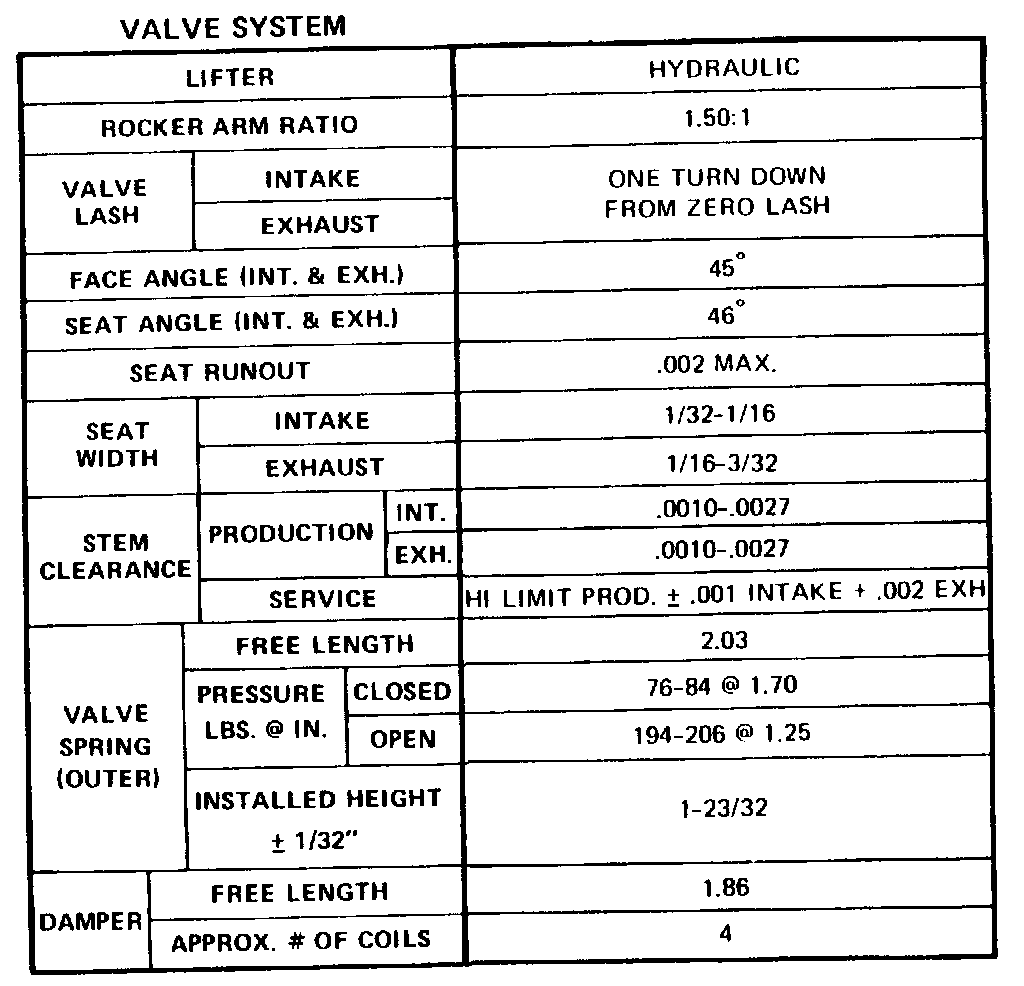

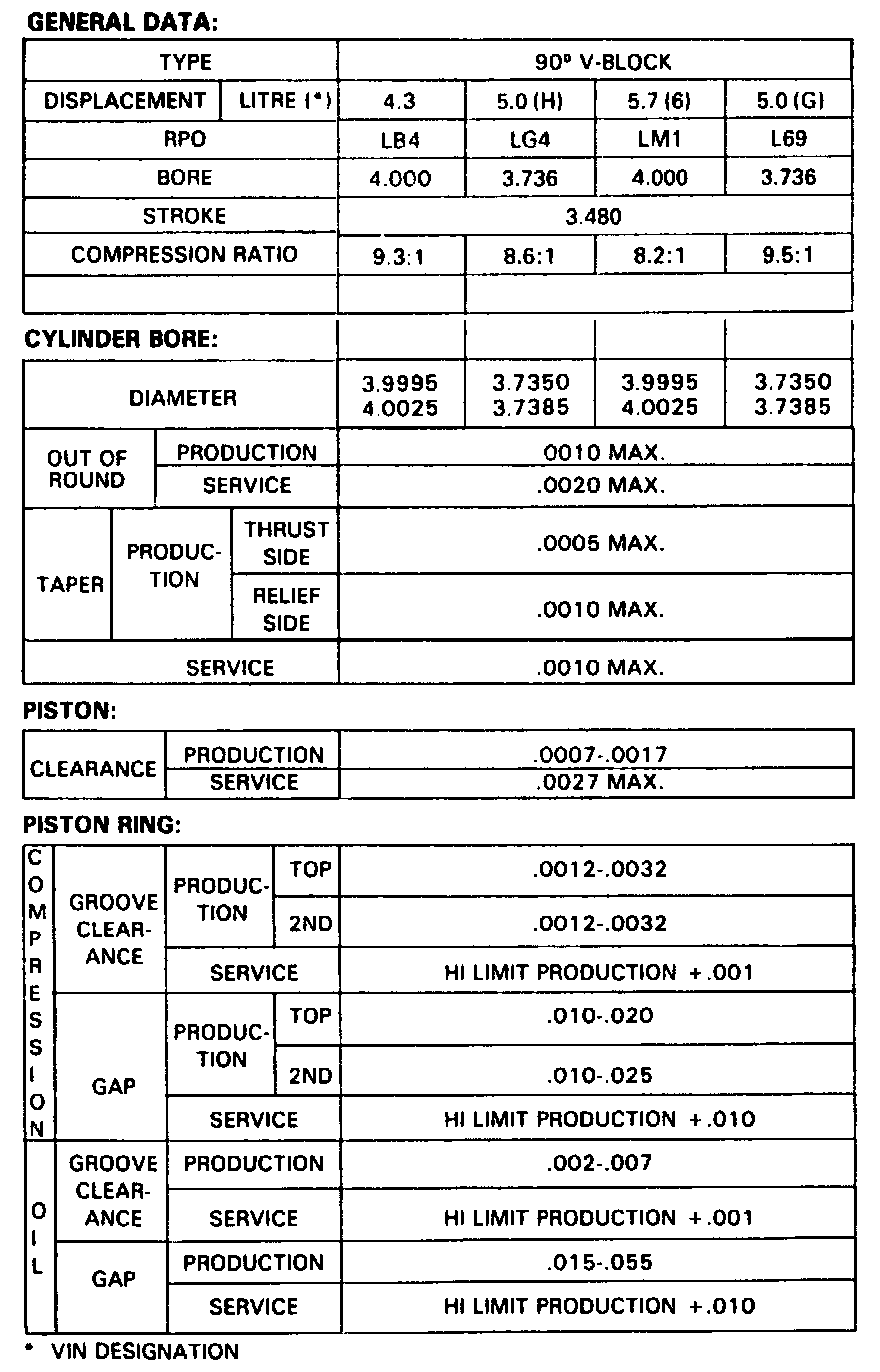

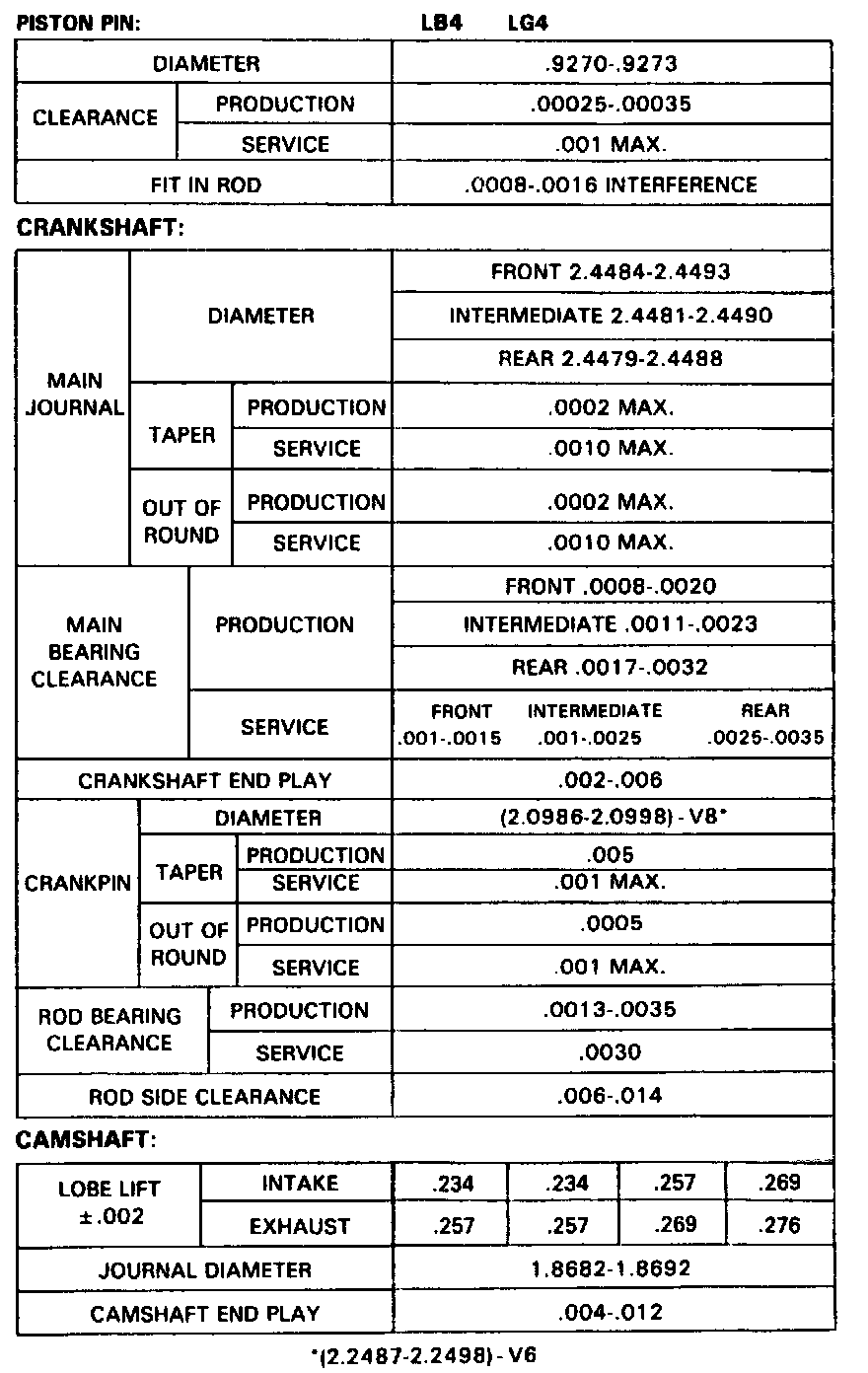

System Specifications

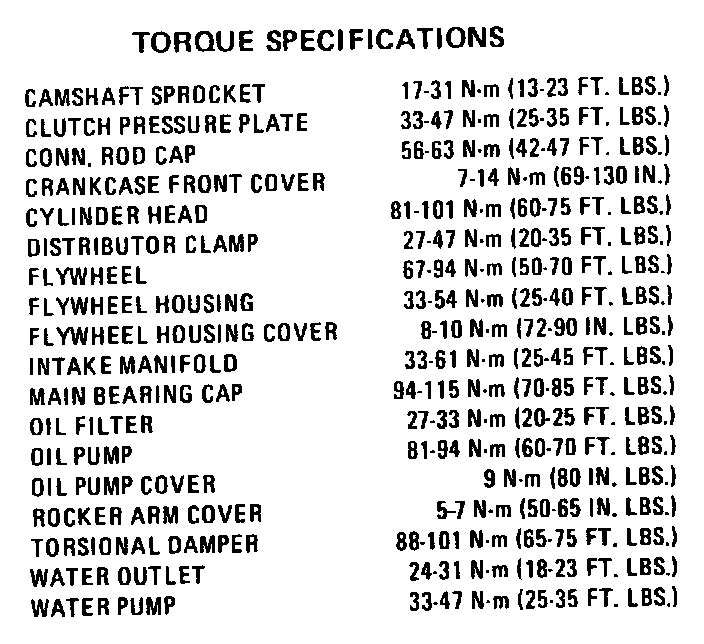

Torque Specifications:






Intake Manifold Sequence (Small V-8):





Intake Manifold Sequence (V-6):





Cylinder Head Sequence:
